Blustream DA11ADE Dante Audio Analogue Decoder
Blustream DA11ADE Dante Audio Analogue Decoder
The Blustream DA11ADE is designed to decode a Dante digital signal to unbalanced or balanced 2-channel analogue audio. It is a plug & play device with PoE (Power over Ethernet) or local 12V power options, AES67 RTP audio transport support, and independent per-channel gain.
Dante to Analogue Audio Conversion
This decoder converts Dante network audio to 2-channel analogue outputs with support for key audio formats.
- Decodes a Dante digital signal to 2ch balanced or unbalanced analogue audio
- Supports 44.1, 48 & 96 KHz sample rates at 24 Bit
- Supports AES67 RTP audio transport
Power and Network Integration
Deployment is streamlined with flexible power and standard network connectivity.
- Plug & play operation
- Powered via Class 1 802.3af PoE from any PoE network switch or via local 12V power input
- 1 x RJ45 (female) 100Mbps Dante network input
Latency and Output Control
Audio delivery and output levels can be adjusted to suit system requirements.
- Configurable Dante device latency: 1, 2 or 5 ms (configurable using Dante Controller)
- Independent output gain control per channel: +18dBu to -10dBV
Connectivity

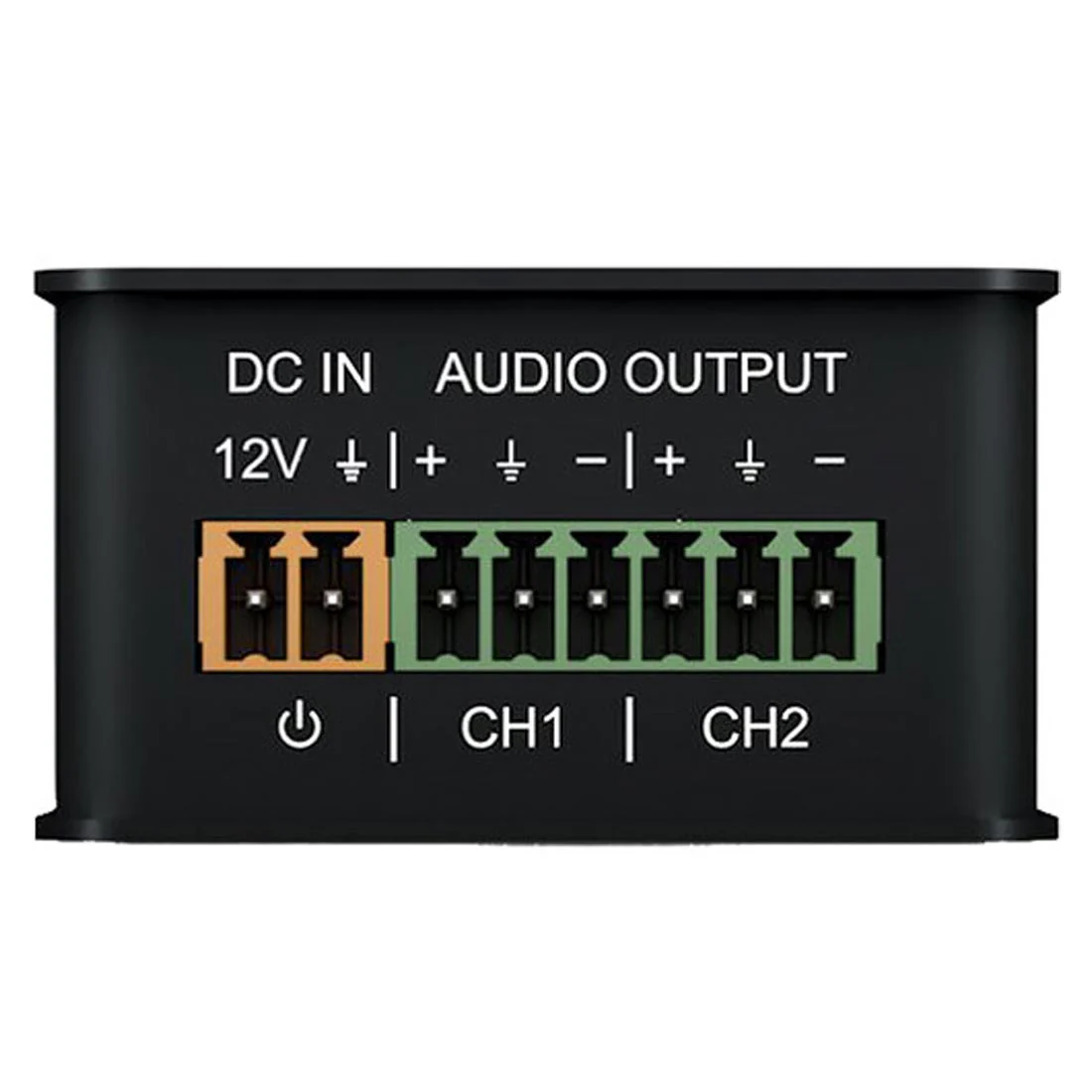

Analogue audio is provided on a 6-pin Phoenix connector for 2-channel balanced or unbalanced outputs.
Frequently Asked Questions
-
What does the DA11ADE do?
It decodes a Dante digital signal to unbalanced or balanced 2-channel analogue audio.
-
How is the DA11ADE powered?
It can be powered using Class 1 802.3af PoE from any PoE network switch or via a local 12V power supply input.
-
Which audio formats and rates are supported?
It supports 44.1, 48 and 96 KHz sample rates at 24 Bit and supports AES67 RTP audio transport.
-
Can the device latency be adjusted?
Yes. Dante device latency is configurable to 1, 2 or 5 ms using Dante Controller.
-
What connectors are provided?
It features 1 x RJ45 (female) 100Mbps Dante network input and a 6-pin Phoenix connector for 2-channel balanced/unbalanced analogue audio output.
-
What is included in the box?
1 x DA11ADE and 1 x Quick Reference Guide.
Add to Cart to integrate Dante network audio into 2-channel analogue systems with precision control. For personalized system-matching or setup advice, contact Gibbys Electronic Supermarket or visit us for expert guidance.
