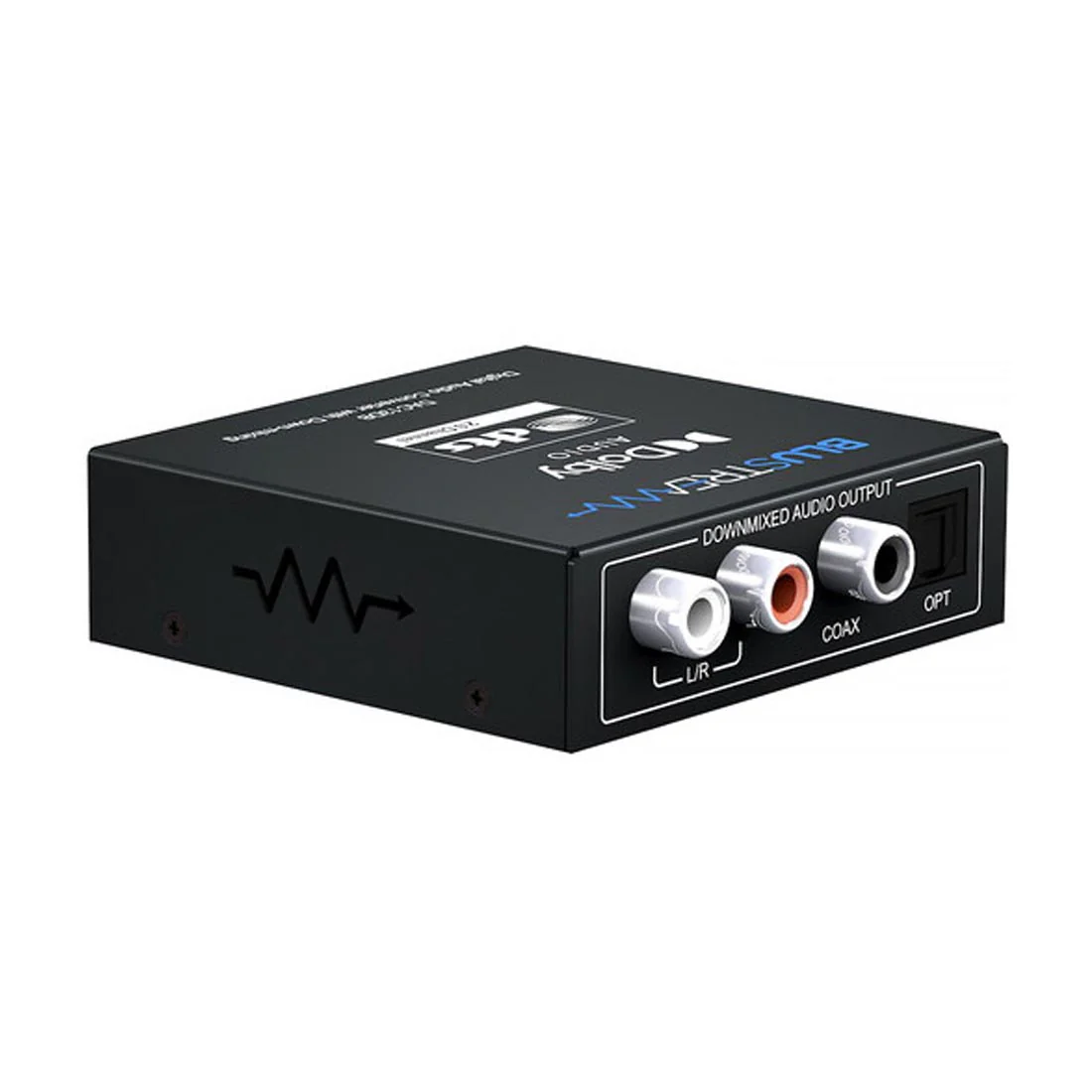

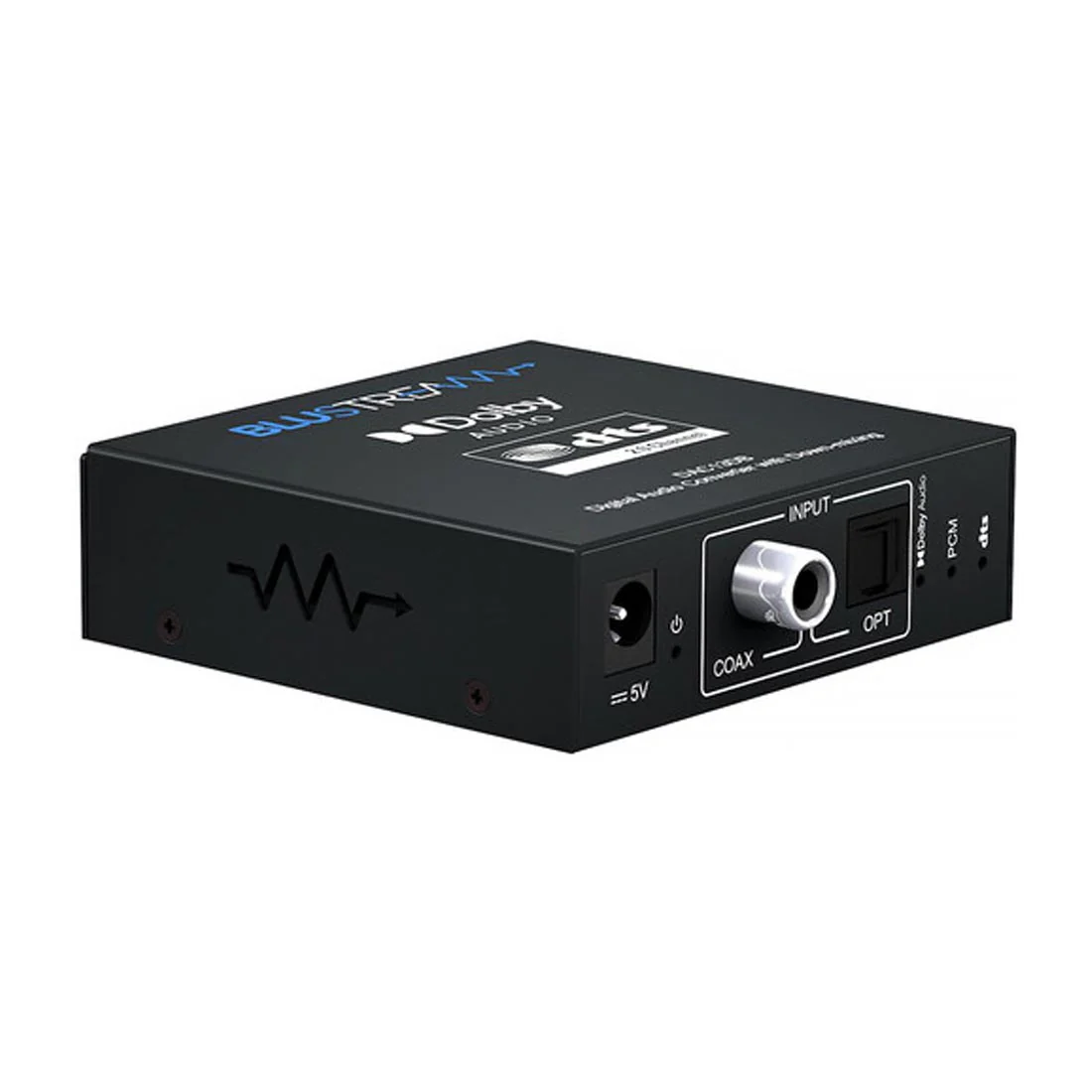

Blustream DAC13DB Digital Audio Converter (DAC13DB)

Blustream DAC13DB Digital Audio Converter

The Blustream DAC13DB converts and down-mixes embedded 5.1ch Dolby Audio or DTS Audio from an optical or coaxial digital audio signal into a stereo 2ch signal. It then makes the 2ch output available on analogue, optical, and coaxial connections.

Down-mixing from Dolby Audio and DTS Audio

The DAC13DB is designed to convert and down-mix multichannel audio within a digital input into a stereo 2ch signal.

• Down-mixes 5.1ch Dolby Audio and DTS Audio from optical Toslink or coaxial digital inputs from a compatible source device
• Outputs a stereo 2ch signal after down-mixing

Simultaneous Stereo Outputs

After down-mixing, the unit provides the 2ch signal across multiple connection types at the same time.

• Analogue 2 x RCA stereo (L/R)
• Optical S/PDIF Toslink
• Coaxial S/PDIF RCA

Format and Signal Support

Supports widely used Dolby Audio, DTS Audio, and PCM formats, with high-quality signal handling.

• PCM 2ch
• Dolby Digital 2ch
• Dolby Digital 5.1ch
• DTS 2ch
• DTS 5.1ch
• Audio signals up to 24-bit with sampling rates up to 96kHz

Connectivity

Flexible digital and analogue I/O allows straightforward integration.

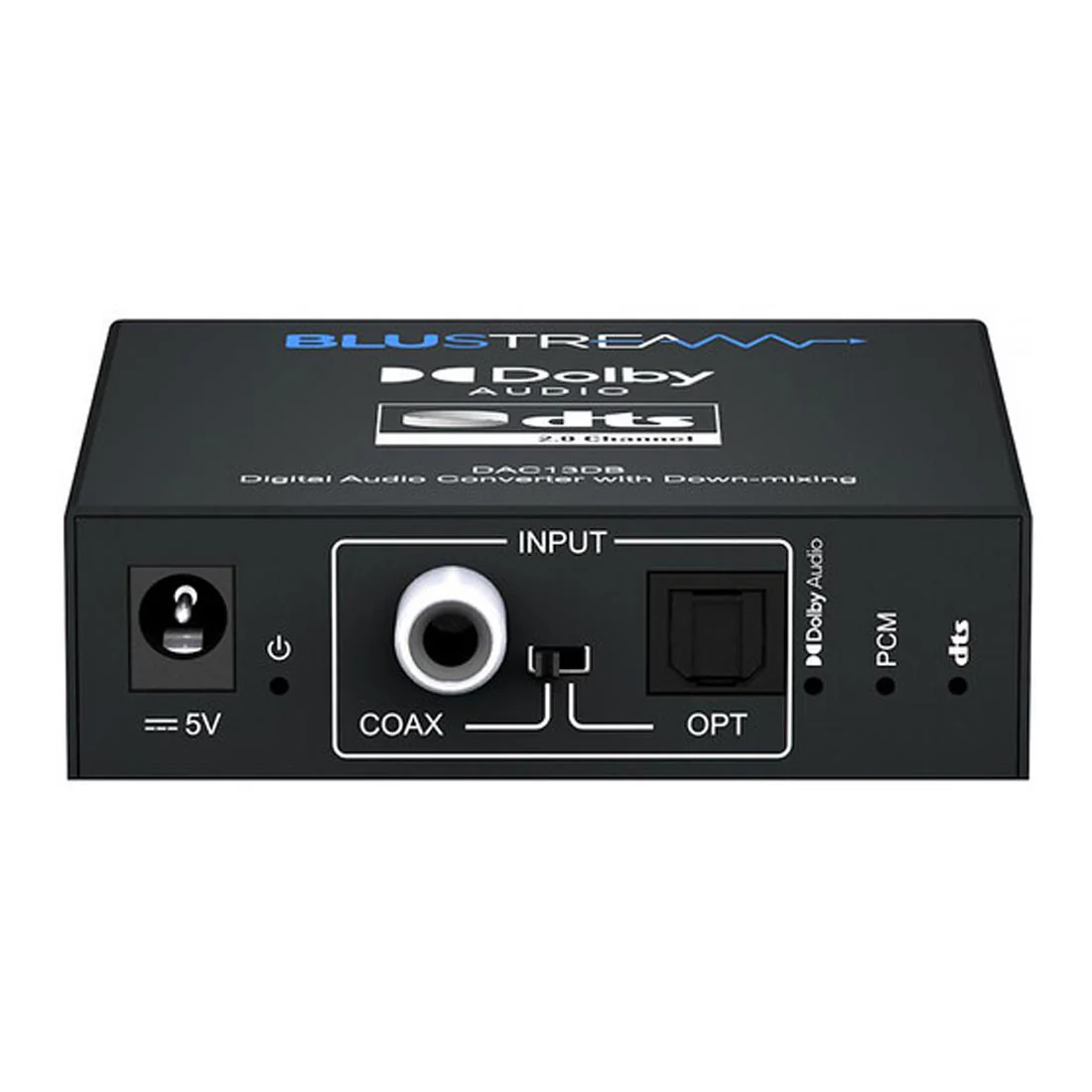

• Audio inputs: 1 x S/PDIF Coaxial RCA Digital, 1 x S/PDIF Optical Toslink Digital

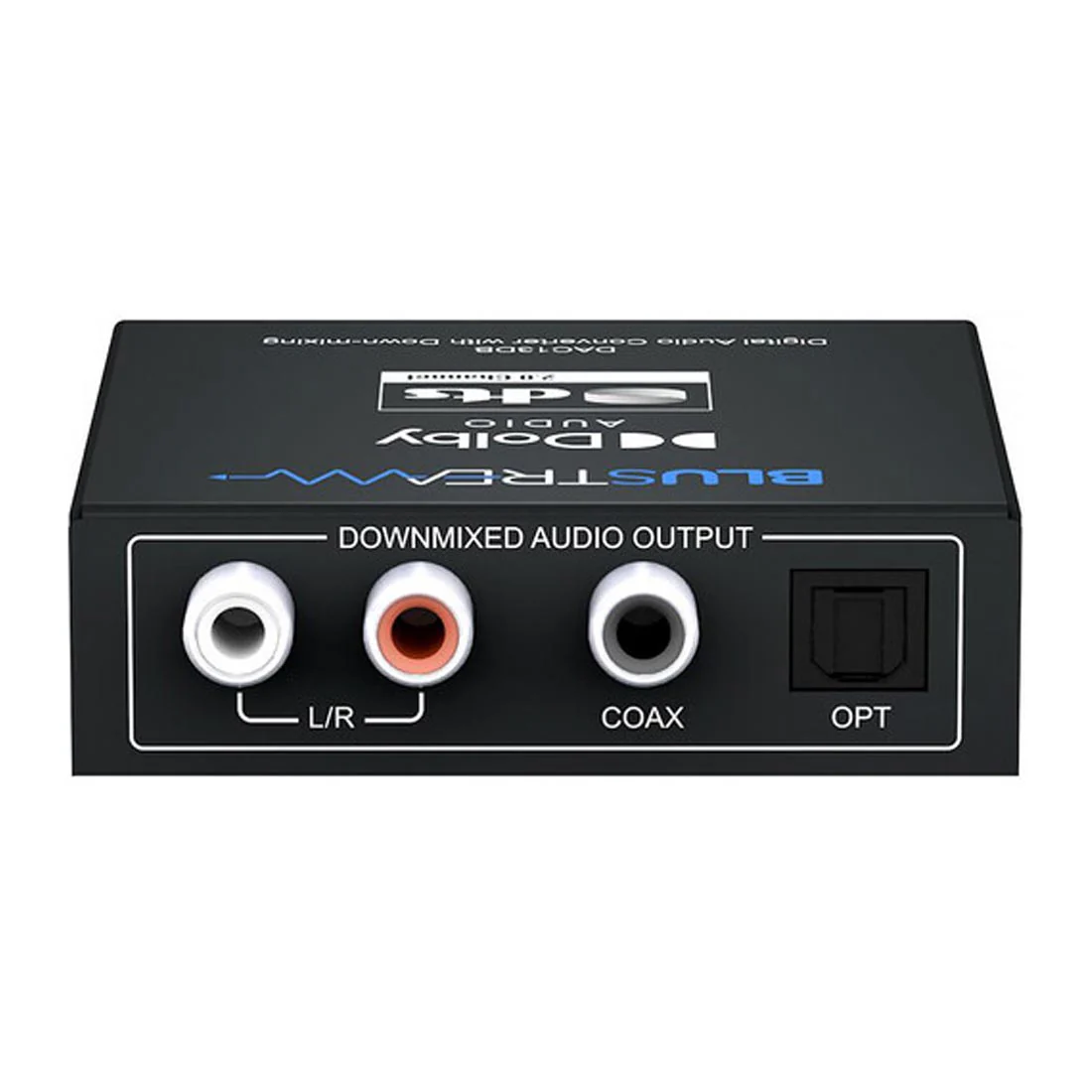

• Audio outputs: 1 x S/PDIF Coaxial RCA Digital, 1 x S/PDIF Optical Toslink Digital, 2 x RCA Stereo Analogue (L/R)
• Power supply: 5V/1A DC

Frequently Asked Questions

• What does the DAC13DB do?

  It converts and down-mixes embedded 5.1ch Dolby Audio or DTS Audio from an optical or coaxial digital input into a stereo 2ch signal, and outputs it via analogue, optical, and coaxial connections.

• Which audio formats are supported?

  Supported formats include PCM 2ch, Dolby Digital 2ch, Dolby Digital 5.1ch, DTS 2ch, and DTS 5.1ch.

• What bit depth and sampling rate are supported?

  It supports audio signals up to 24-bit with sampling rates up to 96kHz.

• What inputs and outputs are available?

  Inputs: 1 x S/PDIF Coaxial RCA Digital and 1 x S/PDIF Optical Toslink Digital. Outputs: 1 x S/PDIF Coaxial RCA Digital, 1 x S/PDIF Optical Toslink Digital, and 2 x RCA Stereo Analogue (L/R).

• Does it output on multiple connections simultaneously?

  Yes. It simultaneously outputs the down-mixed 2ch stereo audio via analogue, optical Toslink, and coaxial digital outputs.

• What is included in the box?

  1 x DAC13DB, 1 x Mounting Kit, 1 x 5V/1A DC Power Supply, and 1 x Quick Reference Guide.
