Blustream PWR4IEC 4 Port Managed IEC Power Distribution Unit

Blustream PWR4IEC 4 Port Managed IEC Power Distribution Unit

Blustream PWR4IEC is an outlet-level metered and switched smart PDU designed to manage and monitor power for connected devices. It provides scheduling, sequencing, and remote access for precise, secure control in professional installations.

Outlet-level control and metering

This managed IEC PDU enables per-outlet power switching alongside a single mains switch for overall control. It also measures key electrical parameters for informed management.

• Monitoring and metering of voltage, current, power, and energy consumption

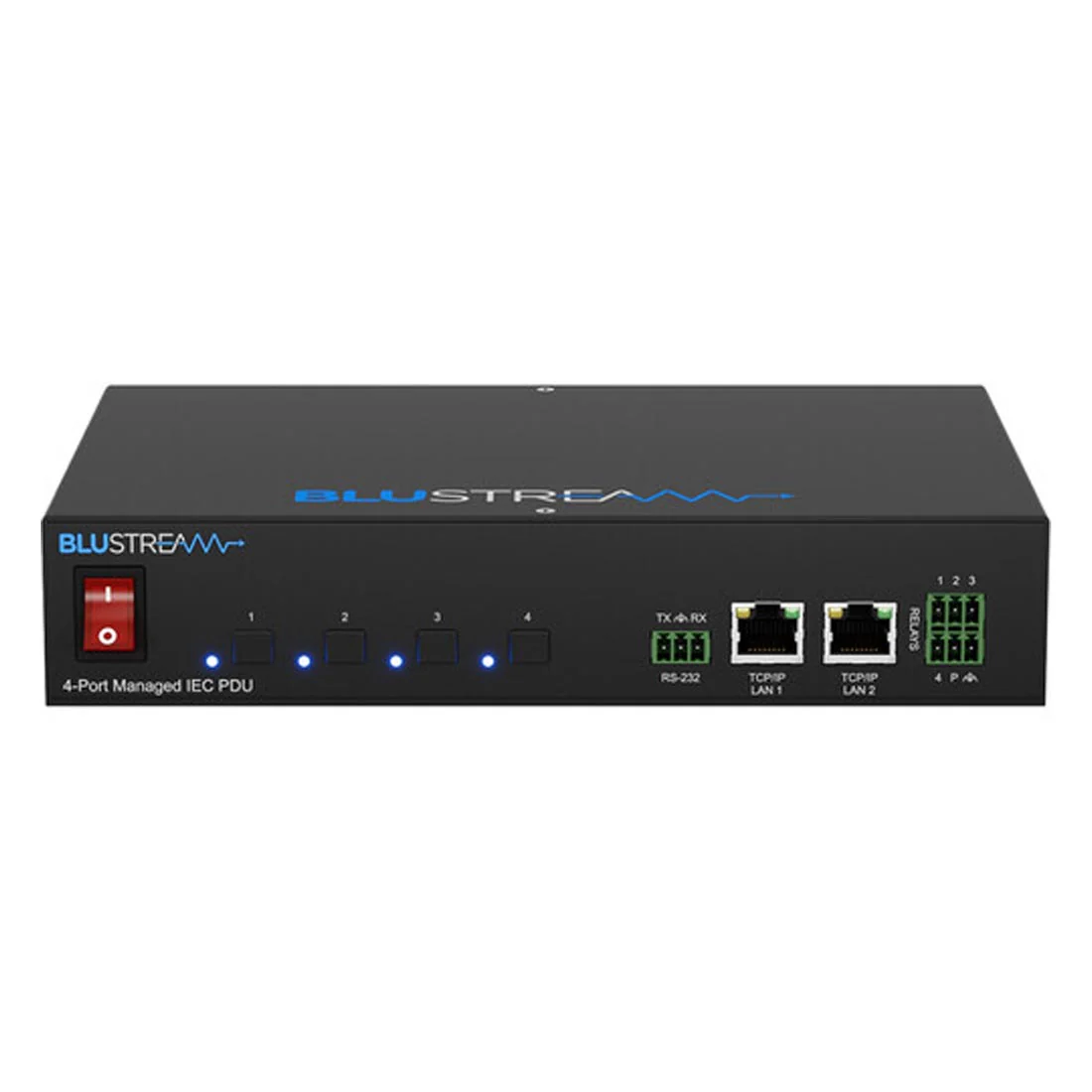

• Front panel buttons for manual switching of individual outlets
• Relays for automated switching of overall or individual power outlets

Flexible control and remote access

The PWR4IEC supports multiple control pathways and secure remote management to fit a range of workflows.

• Control via TCP/IP, RS-232, front panel buttons, or relays
• Provides remote monitoring with password authentication through a web-GUI
• Support for multiple network and IoT protocols

Network resilience

Dual TCP/IP network ports provide uninterrupted network service and access with SSL connectivity, with a redundant port available as a backup.

Advanced power management and protection

• Scheduling and power on/off sequencing
• Overload protection and interference filtering

Rack-ready integration

The 1U design integrates into a 19" rack, with rack ears and a rack mounting kit included. Shelf and wall mounting brackets are also supplied.

Frequently Asked Questions

• What power connections does the PWR4IEC provide?

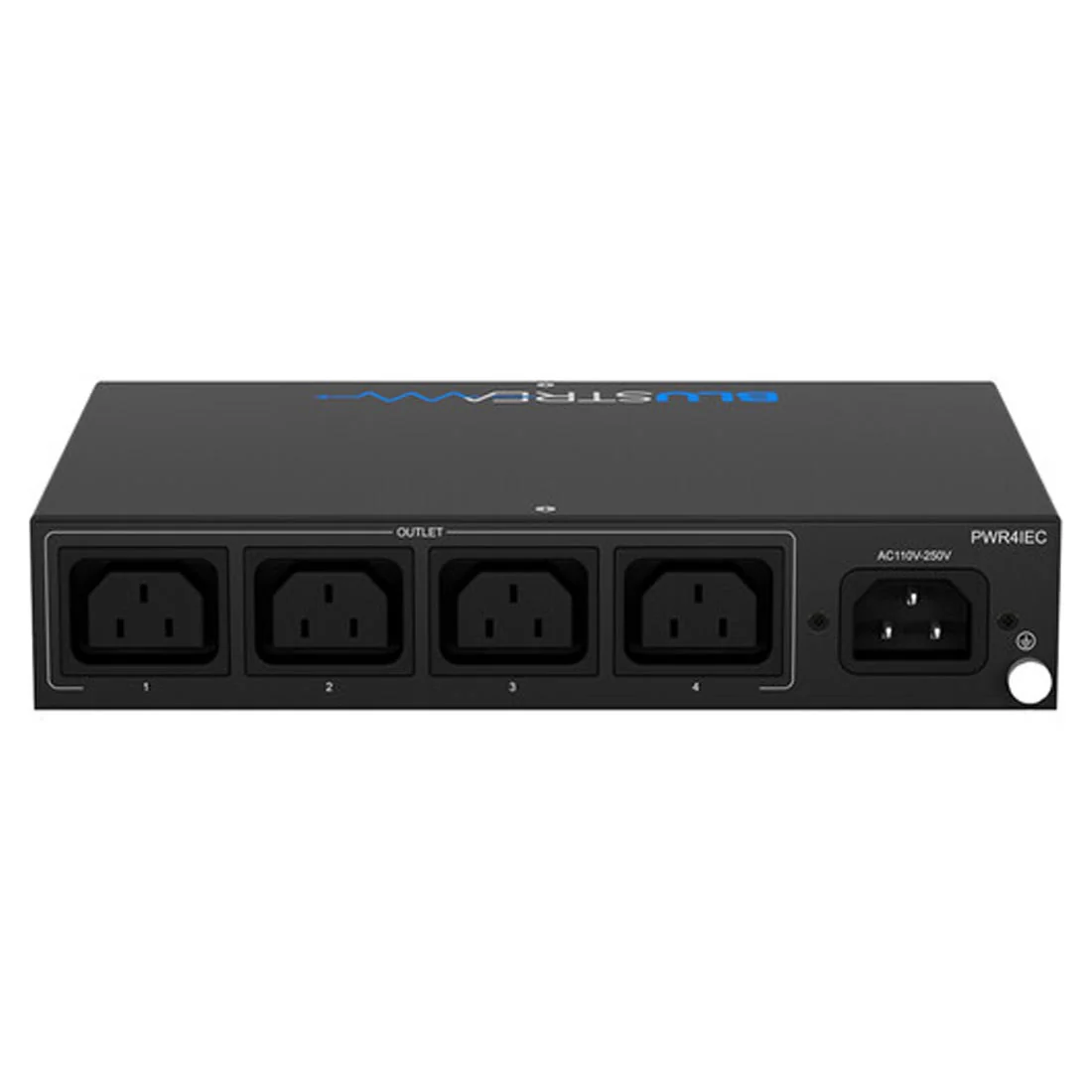

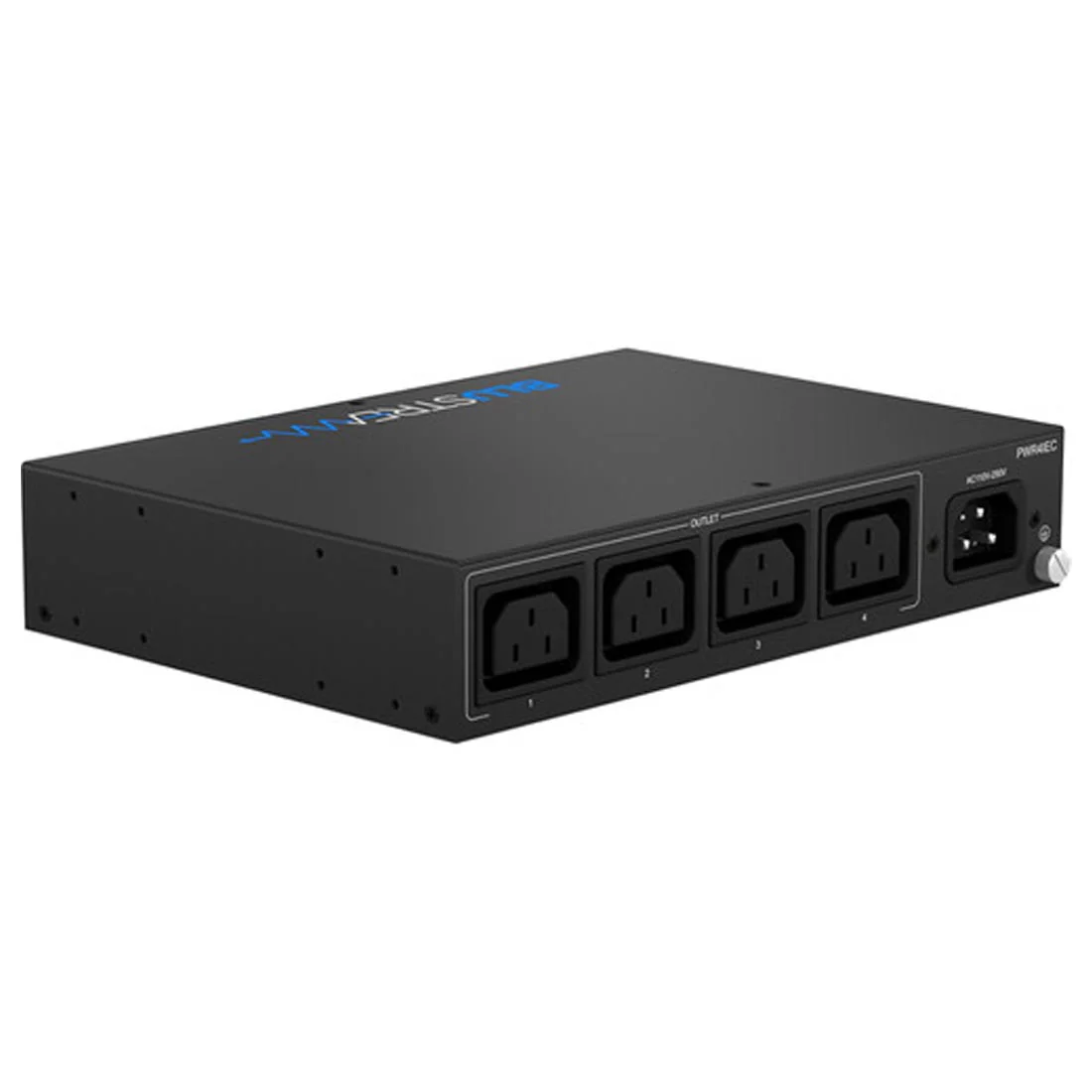

  It includes a single IEC C14 inlet for 110–250V AC (up to 10A) and four IEC output outlets for supply to high-power consumption devices.

• How can it be controlled?

  Control is available via TCP/IP and RS-232, front panel buttons, and relays. Remote access and monitoring are available through the web-GUI with password authentication, and it supports multiple network and IoT protocols.

• Does it support automation, scheduling, and sequencing?

  Yes. It supports scheduling and power on/off sequencing, and its relay connections can automate overall or individual outlet power, including triggers from third-party control platforms or BMS systems.

• What network reliability features are included?

  Dual TCP/IP ports provide uninterrupted network service and access with SSL connectivity, with a redundant TCP/IP port as a back-up.

• Is it suitable for rack installation?

  Yes. It has a 1U rack height for 19" rack integration and includes rack ears, a rack mounting kit, and shelf/wall mounting brackets.

• What’s in the box?

  PWR4IEC unit, serial cable (DB9 to 3-pin Phoenix), two 3-pin 3.5 mm Phoenix connectors, 19" rack mounting kit, shelf/wall mounting brackets, quick reference card, and input power IEC cables (outlet cabling not supplied).

Bring managed, outlet-level power control to your installation with the PWR4IEC. Add to Cart, or contact Gibbys Electronic Supermarket for expert system-matching and setup advice for your project.
