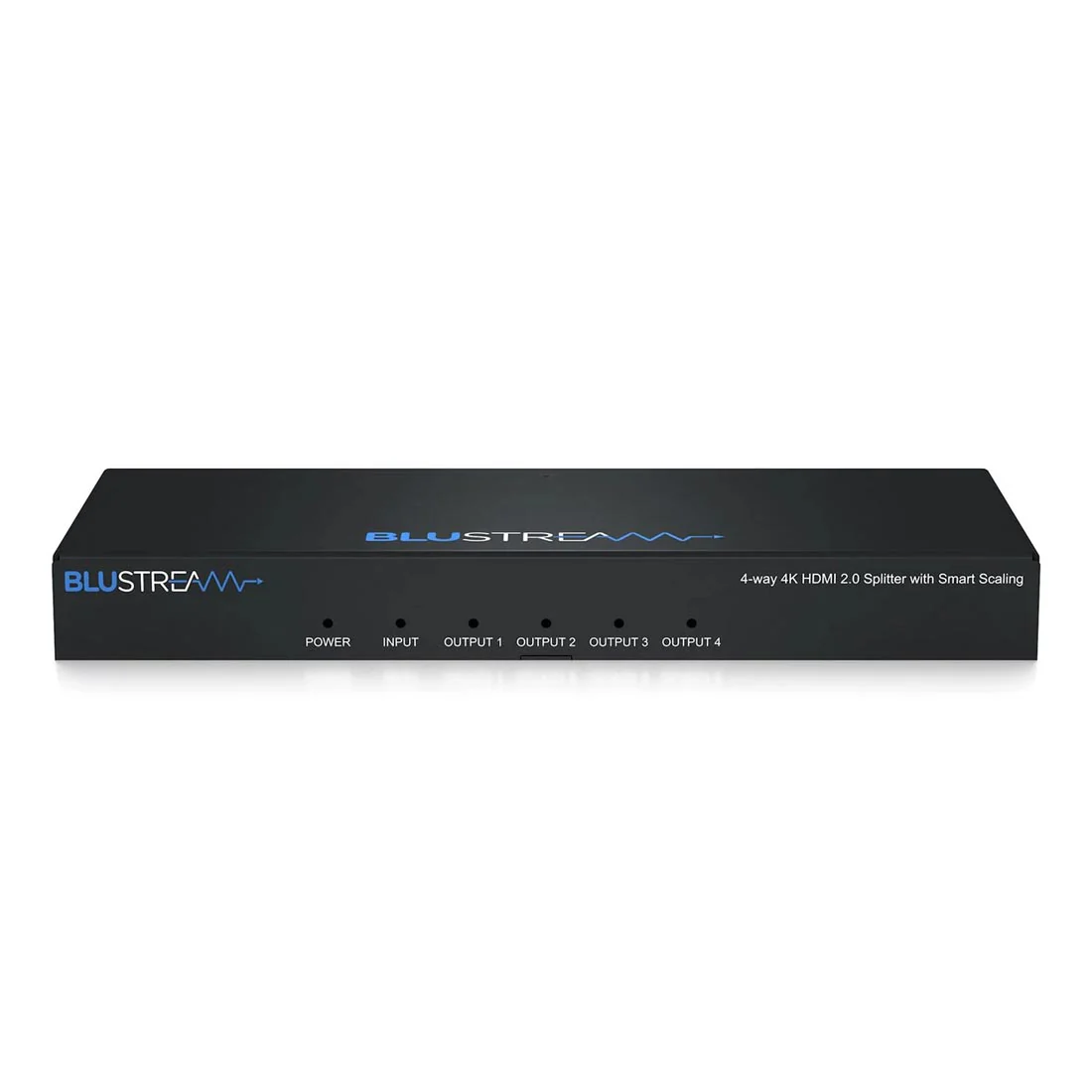

Blustream SP14CS 4-Way 4K HDMI 2.0 Splitter HDCP 2.2 (SP14CS)

Blustream SP14CS 4-Way 4K HDMI 2.0 Splitter HDCP 2.2 (SP14CS)

The Blustream SP14CS distributes a single HDMI source to four simultaneous HDMI outputs and provides both digital (S/PDIF) and analogue L/R audio breakout. It supports HDMI 2.0 18Gbps, HDCP 2.2, and up to 4K 60Hz 4:4:4 with automatic per-output video down-conversion.

1-in/4-out 4K HDMI distribution

This 4-way splitter replicates one HDMI input to four HDMI outputs while maintaining full signal integrity.

• 1x HDMI input replicated to 4x HDMI outputs
• Supports HDMI 2.0 18Gbps specification including HDR
• Supports up to 4K UHD 60Hz 4:4:4
• HDCP 2.2 support
• Supports industry standard video resolutions including VGA–WUXGA and 480i–4K

Mixed-resolution system compatibility

Each output features video down-conversion, allowing a display that only supports lower resolutions (such as 4K 60Hz 4:2:0 or 1080p) to receive 4K 60Hz 4:4:4 content, while the remaining outputs can still show the maximum original 4K UHD resolution.

Flexible audio integration

The SP14CS offers concurrent HDMI audio breakout for straightforward connection to external audio systems.

• HDMI audio breakout to analogue L/R (3.5mm stereo) and optical digital (S/PDIF) outputs
• Bitstream passthrough of multichannel surround sound, including object-based audio formats, in line with HDMI specifications

Control and setup features

Integration and control are supported with focused tools for compatibility and system behavior.

• Advanced EDID management
• CEC will only pass between the source device and the sink connected to output 1
• EDID and Smart Scale 4-PIN DIP switches
• Includes 5V/2A DC power supply, mounting kit, and Quick Reference Guide

Frequently Asked Questions

• How many inputs and outputs does the SP14CS have?

  It provides 1x HDMI input replicated to 4x HDMI outputs.

• What resolutions and formats are supported?

  It supports up to 4K UHD 60Hz 4:4:4, HDMI 2.0 18Gbps including HDR, and industry standard resolutions from 480i to 4K and VGA–WUXGA.

• Does the splitter support HDCP 2.2?

  Yes, it supports HDCP 2.2.

• Can it mix 4K and 1080p displays on different outputs?

  Yes. Per-output video down-conversion allows lower-resolution displays (e.g., 4K 60Hz 4:2:0 or 1080p) to receive content while other outputs retain the maximum original 4K UHD resolution.

• What audio options are available?

  It offers HDMI audio breakout to analogue L/R (3.5mm stereo) and optical digital (S/PDIF) concurrently, and supports bitstream passthrough of multichannel surround sound including object-based formats in line with HDMI specifications.

• Does CEC pass through all outputs?

  CEC will only pass between the source device and the sink connected to output 1.

• Are there EDID or scaling controls?

  Yes. It includes advanced EDID management plus 4-PIN DIP switches for EDID and Smart Scale.

• What is included in the box?

  1x SP14CS, 1x 5V/2A DC power supply, 1x mounting kit, and 1x Quick Reference Guide.
