Blustream SW21AB-V2 2-Way 4K HDMI Switch (SW21ABV2)

Blustream SW21AB-V2 2-Way 4K HDMI Switch (SW21ABV2)

The Blustream SW21AB-V2 is a 2-way HDMI switch with integrated audio breakout that switches between two HDMI sources to a single HDMI output. It supports full HDMI 2.0 4K UHD (4K @ 60Hz 4:4:4) with HDCP 2.2 compliance and provides concurrent analogue L/R and optical digital audio outputs.

4K UHD Switching with HDMI 2.0 and HDCP 2.2

This HDMI switch delivers 4K UHD video performance and broad format support across common resolutions.

• 2x HDMI inputs can be switched to a single HDMI output
• Supports full HDMI 2.0 specification 4K UHD video (4K @ 60Hz 4:4:4)
• HDCP 2.2 compliant
• Supports 3D signal display
• Supports industry standard video resolutions including VGA–WUXGA and 480i–4K

Integrated Audio Breakout and Multichannel Pass-through

Audio can be extracted from HDMI and output through digital and analogue connections while maintaining format support in line with HDMI specifications.

• HDMI audio breakout to analogue L/R and optical digital outputs concurrently
• Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications

Control and Integration Features

Operational and system-integration options are available through onboard controls and signal management features.

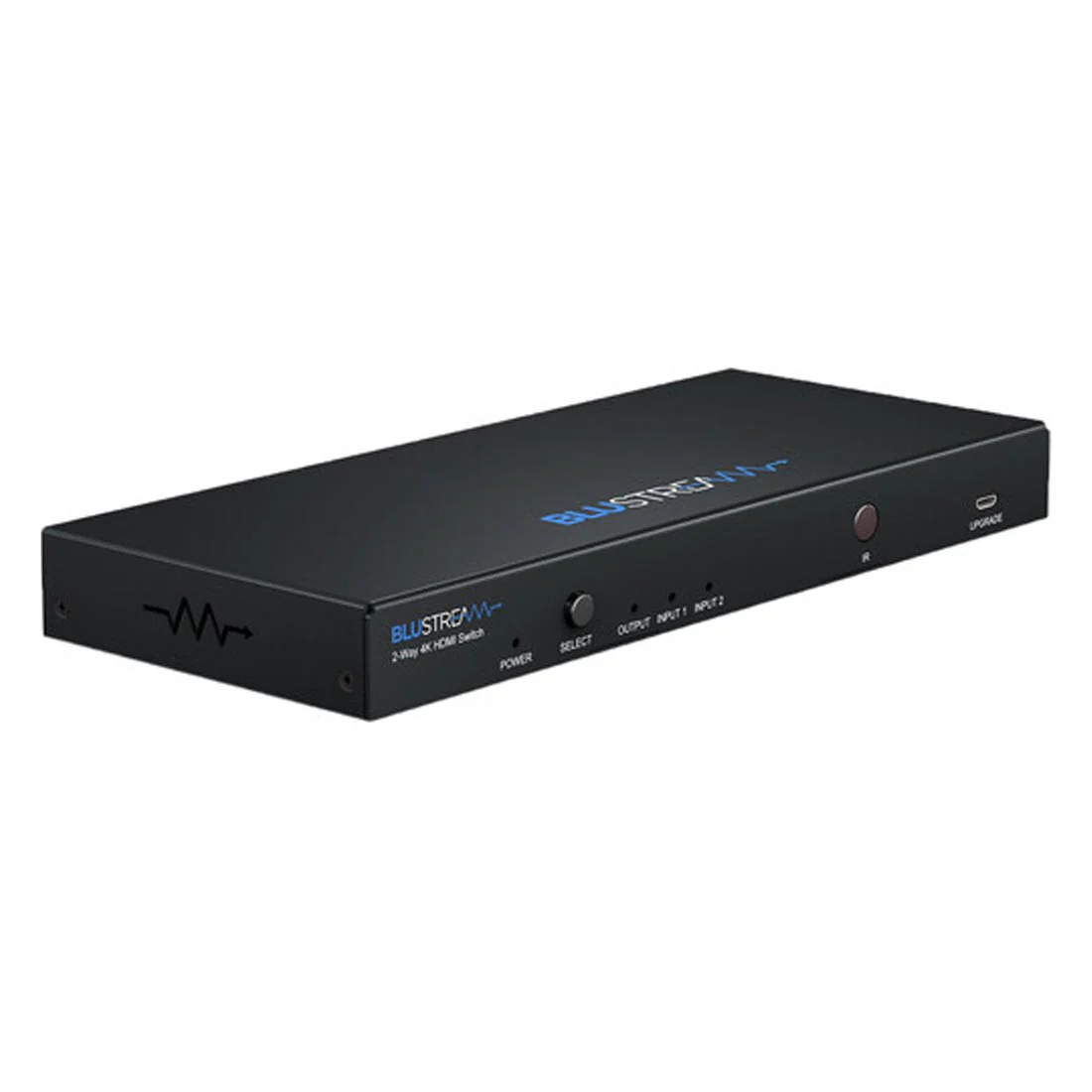

• Control via front panel and IR
• Advanced EDID management
• CEC (Consumer Electronic Control) is blocked from the inputs to the end sink/display

Connectivity and Included Accessories

The switch provides standard HDMI I/O, audio outputs, and IR connectivity, and includes essential accessories for setup.

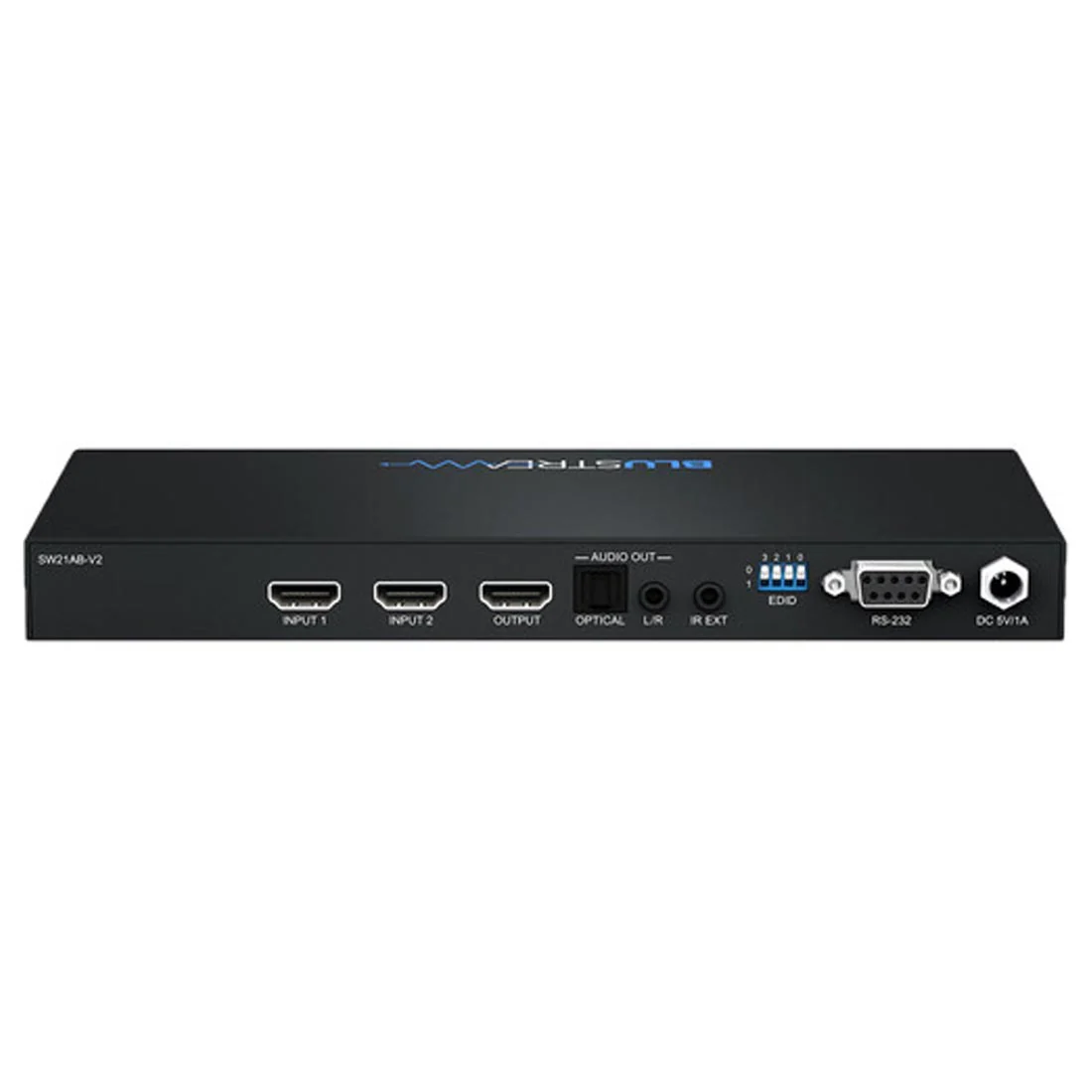

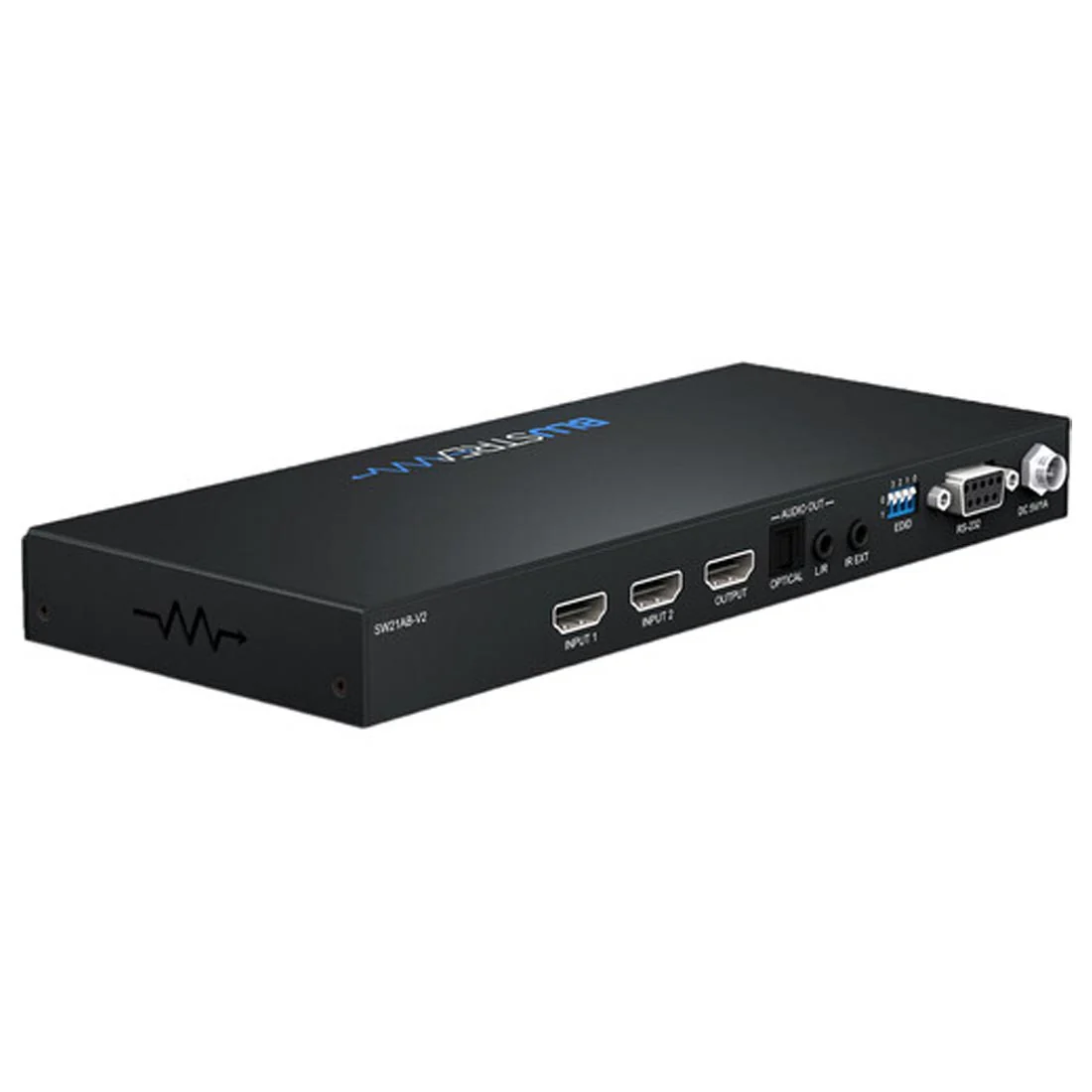

• Video inputs: 2x HDMI Type A; video output: 1x HDMI Type A
• Audio outputs: 1x Optical (SPDIF) and 1x analogue L/R (3.5mm stereo jack)
• IR input: 1x 3.5mm stereo jack
• Power supply: 5V/2A DC
• Included: SW21AB-V2, SW21-REMOTE, 5V/2A DC power supply, IR receiver, user manual

Frequently Asked Questions

• What video formats and resolutions are supported?

  It supports full HDMI 2.0 4K UHD (4K @ 60Hz 4:4:4), is HDCP 2.2 compliant, supports 3D signal display, and supports industry standard video resolutions including VGA–WUXGA and 480i–4K.

• Does the SW21AB-V2 provide audio breakout?

  Yes. It provides HDMI audio breakout to analogue L/R and optical digital outputs concurrently.

• Is multichannel surround audio supported?

  Yes. It supports bitstream passthrough of multichannel surround sound, including object-based audio formats, in line with HDMI specifications.

• How can the switch be controlled?

  It can be controlled via the front panel and IR. An IR input (3.5mm) is available, and an IR receiver and remote are included.

• Is CEC passed through?

  No. CEC is blocked from the inputs to the end sink/display.

• Does it support auto switching?

  Auto switching is only available on units with serial no. 70522400001 or above, or serial numbers with a letter as the 4th digit (i.e. xxxAxxxxxxx).
