Blustream SW41AB-V2 4-Way 4K HDMI Switch (SW41ABV2)

Blustream SW41AB-V2 4-Way 4K HDMI Switch (SW41ABV2)

The Blustream SW41AB-V2 is a 4-way HDMI switch with integrated audio breakout and auto-switching, designed to route four HDMI sources to a single HDMI output. It supports full HDMI 2.0 with 4K @ 60Hz 4:4:4 and is HDCP 2.2 compliant.

4K UHD HDMI 2.0 Switching

Delivers 4K UHD video with support for full HDMI 2.0 (4K @ 60Hz 4:4:4) and HDCP 2.2 compliance.

• Supports 3D signal display
• Handles industry standard video resolutions from VGA–WUXGA and 480i–4K
• 4x HDMI inputs switched to a single HDMI output
• Auto-switching capability

Audio Breakout and Format Support

Extracts HDMI audio to analogue L/R and coaxial digital outputs concurrently.

• Supports Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
• Analogue L/R (3.5mm stereo jack) and RCA (SPDIF) outputs

Control and Integration

Integrates into a variety of control environments and manages device communication.

• Control via front panel, RS-232 and IR
• Advanced EDID management
• CEC is blocked from the inputs to the end sink/display

Connections and Included Accessories

Provides practical connectivity and essential accessories.

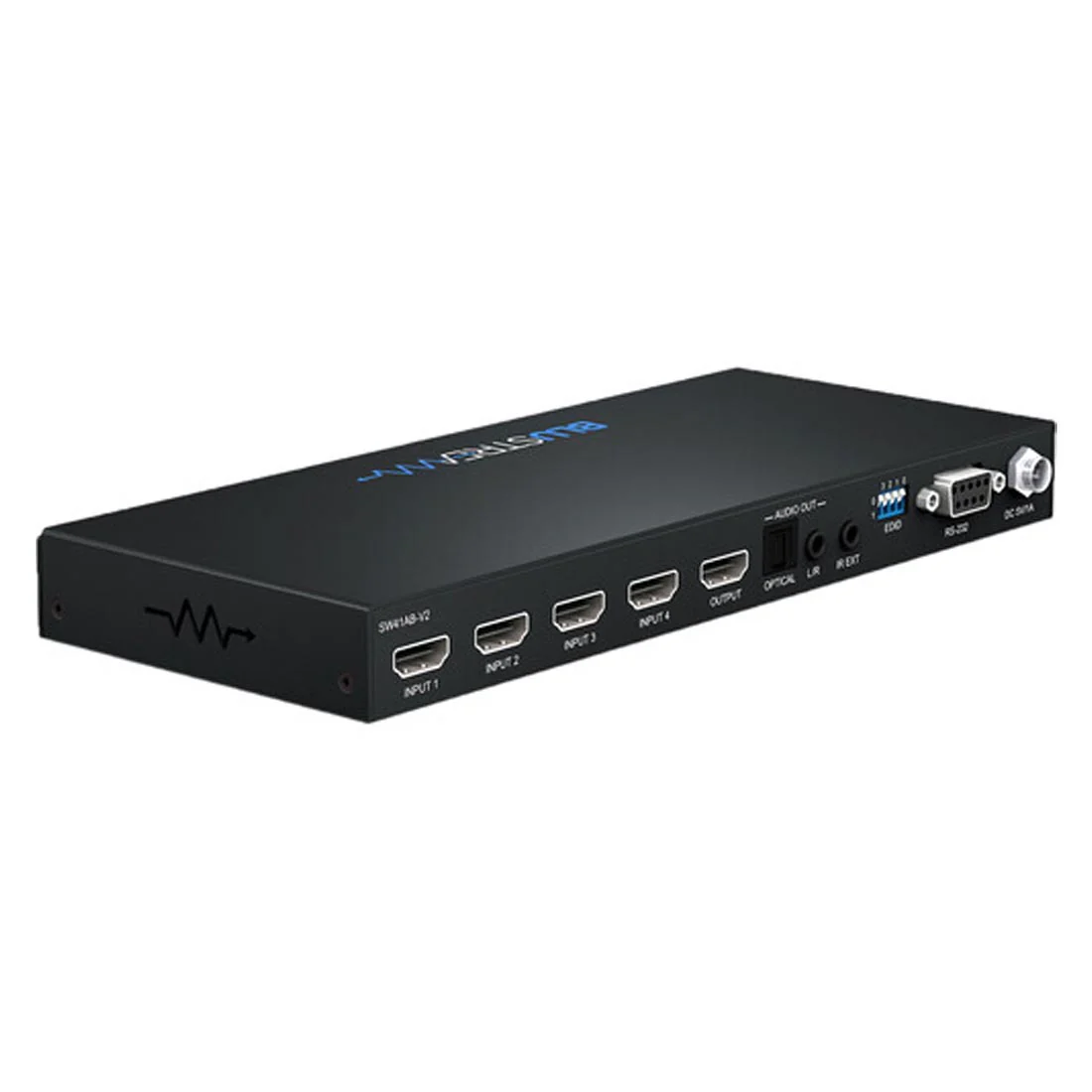

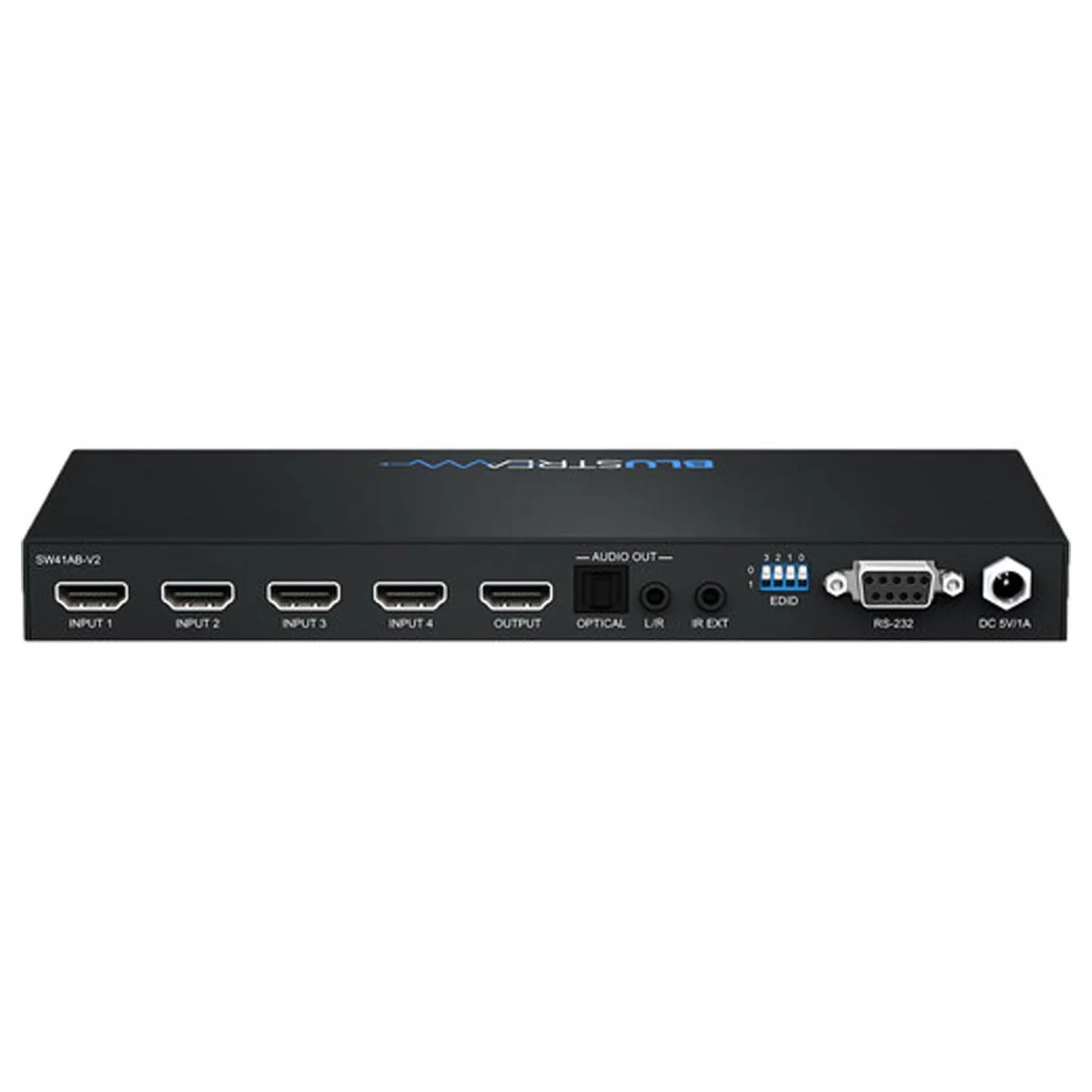

• Video I/O: 4x HDMI Type-A inputs, 1x HDMI Type-A output
• Control I/O: 1x 3.5mm IR input; 1x DB-9 RS-232 serial port
• Includes remote control, 5V/2A DC power supply, IR receiver and user manual

Frequently Asked Questions

• How many sources can the SW41AB-V2 switch?

  It provides 4x HDMI inputs that can be switched to a single HDMI output.

• Does it support 4K @ 60Hz 4:4:4 and HDCP 2.2?

  Yes. It supports full HDMI 2.0 with 4K @ 60Hz 4:4:4 and is HDCP 2.2 compliant.

• What audio outputs are available?

  HDMI audio can be broken out concurrently to analogue L/R (3.5mm stereo jack) and coaxial digital via RCA (SPDIF).

• How can the unit be controlled?

  Control options include the front panel, RS-232 and IR. It also offers advanced EDID management, and CEC is blocked from the inputs to the end sink/display.
