The Blustream UEX3D-WP-EU USB 3.2 Gen1 HDBaseT Extender EU Wall Plate - Device is engineered to allow remote connectivity to a USB 3.2 Gen1 Host at distances of up to 100m / 330ft over a single CAT6A cable. Designed in a dual EU / UK wall plate format, it connects up to four USB devices to a compatible Blustream USB HDBaseT Receiver (Host) extender with support for a combined transmission data bandwidth of up to 5Gbps.

Long-Distance USB 3.2 Gen1 Extension

The UEX3D-WP-EU utilises HDBaseT technology to extend USB 3.2 Gen1 signals up to 100m / 330ft, making it ideal for installations where USB devices need to be located away from the host system. It is recommended to use a minimum of CAT6A cabling, and signal distribution bandwidth and distance are subject to the length of device and host USB cables, and CAT cable type.

• Supports USB 3.2 signal extension up to 100m over HDBaseT
• Single CAT6A cable connection recommended
• Combined USB 3.2 Gen1 data transfer rate up to 5Gbps

Connect Up to Four USB Devices

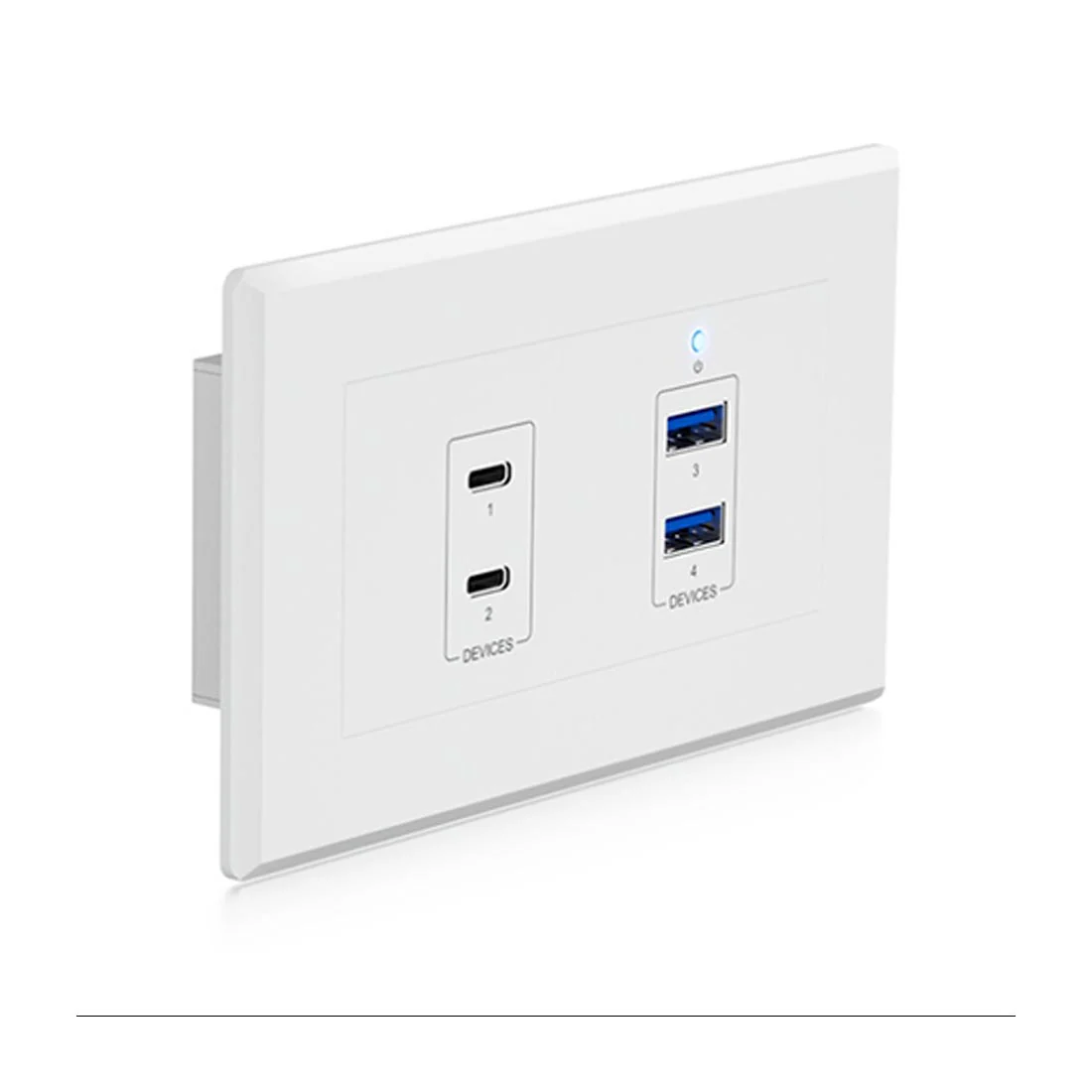

This wall plate device supports connection for four USB devices, with 2 x USB Type A and 2 x USB-C ports. It is ideal for applications requiring extension of USB 3.2 Gen1 conferencing cameras, video capture devices, flash/hard drives, KVM devices, audio devices, and other USB 3.2 Gen1 devices.

• 2 x USB Type A, female
• 2 x USB Type C, female
• Backwards compatible with USB 2.0 and 1.1 devices

Flexible Power and Simple Installation

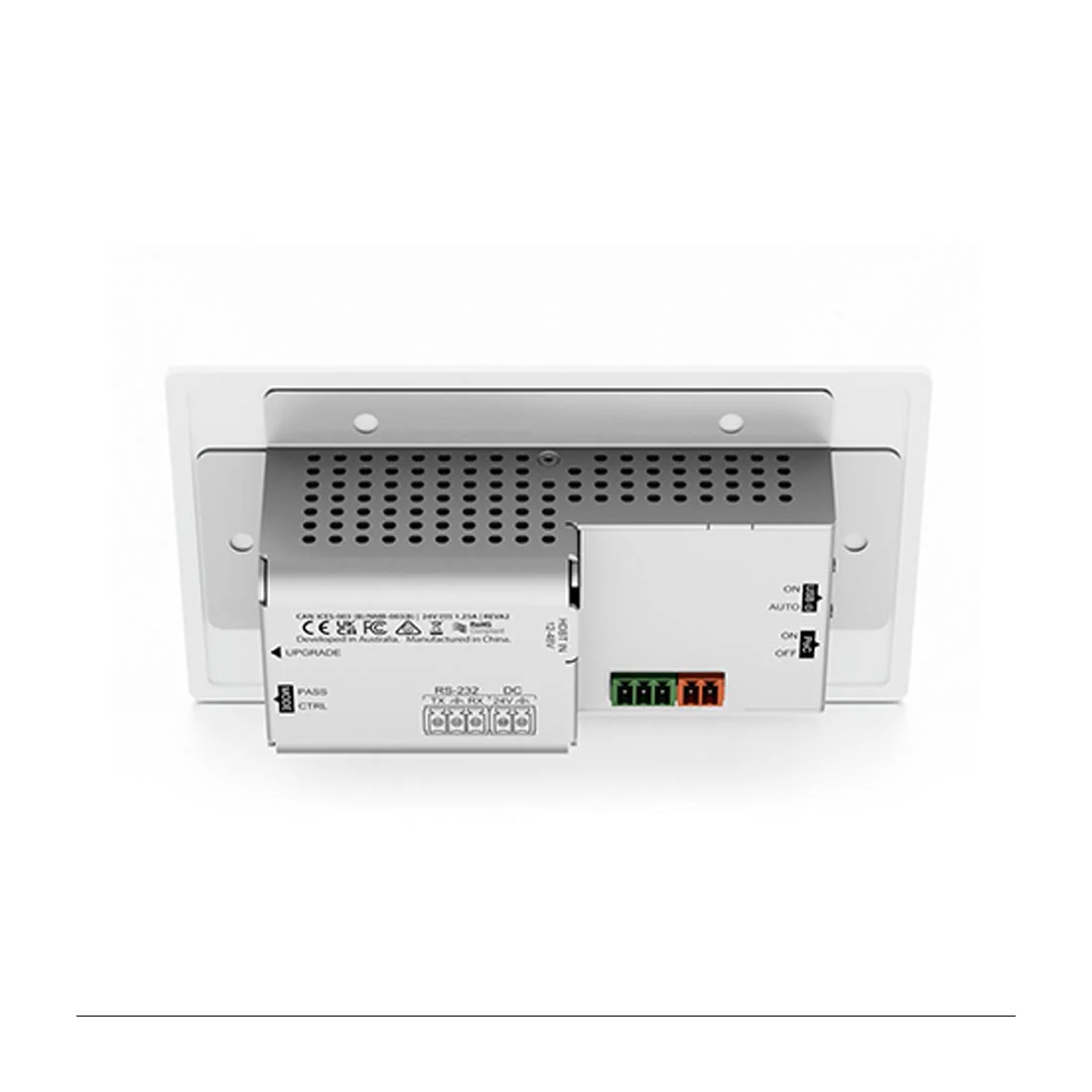

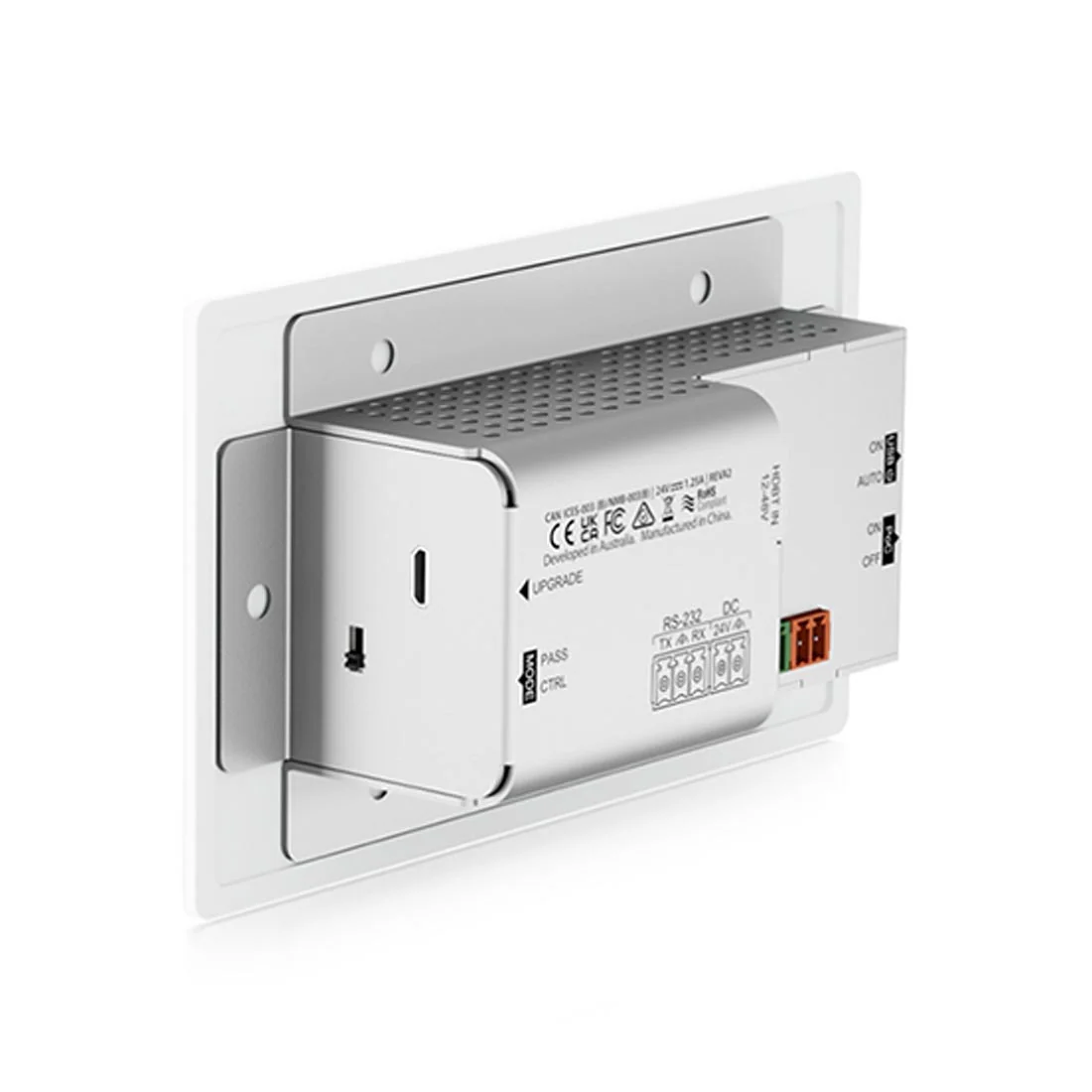

The UEX3D-WP-EU utilises bi-directional Power over Cable (PoC) to power from either end of the HDBaseT link and provides up to 3A combined power to USB devices, with up to 1.7A per single USB port. Installation is simple thanks to plug and play operation with no driver installation or setup required, and PoC can be enabled or disabled via dipswitch.

• Bi-directional PoC supports 12-48V PoC
• PSU supplied with the Device end of the link only
• Configurable USB device power management via API commands
• Simple plug and play design

Built for Compatible Blustream Systems

This device is designed for use with compatible Blustream USB 3.2 HDBaseT Host products, including the Blustream UEX3H and UEX3H-WP. It also supports bi-directional RS-232 when used with compatible HDBaseT products.

• Compatible with Blustream UEX3H and UEX3H-WP
• Supports bi-directional RS-232 with compatible HDBaseT products
• USB 3.2 data transfer only
• Does not support DP Alt Mode video pass-through

Frequently Asked Questions

1. How far can the UEX3D-WP-EU extend USB 3.2 Gen1 signals? It supports USB 3.2 Gen1 signal extension up to 100m / 330ft over HDBaseT using a single CAT6A cable.
2. How many USB devices can be connected? The wall plate supports 4 x USB devices in total: 2 x USB Type A and 2 x USB-C.
3. Is it compatible with USB 2.0 and 1.1 devices? Yes. The UEX3D-WP-EU is backwards compatible with USB 2.0 and 1.1 devices.
4. Does this product support DP Alt Mode video pass-through over USB-C? No. This product is for USB 3.2 data transfer only and does not support DP Alt Mode video pass-through.
5. Does it require a compatible host unit? Yes. It requires a compatible Blustream USB 3.2 HDBaseT Host product, including the Blustream UEX3H and UEX3H-WP.
