Blustream UEX3H-WP-US USB 3.2 Gen1 HDBaseT Wall Plate Host Extension

Blustream UEX3H-WP-US USB 3.2 Gen1 HDBaseT Wall Plate Host Extension

The Blustream UEX3H-WP-US USB 3.2 Gen1 HDBaseT Extender is a USB Host solution designed for remote connectivity of USB 3.2 Gen1 devices over a single CAT6A cable. Built in a dual Decora wall plate format, it supports up to 100m extension, 2 x USB Host devices, and 2 x local USB Devices with a combined transmission data bandwidth of up to 5Gbps.

USB 3.2 Gen1 Extension Over HDBaseT

The UEX3H-WP-US utilises HDBaseT technology to extend USB 3.2 Gen1 signals at distances of up to 100m. This makes it ideal for applications requiring extension of conferencing cameras, video capture devices, flash/hard drives, KVM devices, audio devices, and other USB 3.2 Gen1 devices.

• Supports USB 3.2 Gen1 signal extension up to 100m over HDBaseT
• Combined USB 3.2 Gen1 data transfer rate up to 5Gbps
• Backwards compatible with USB 2.0 & 1.1 devices
• Recommended minimum CAT6A cabling

Flexible Host and Device Connectivity

This USB Host solution allows 2 x USB Hosts to be switched between 2 x local USB Devices as well as devices connected to a remote compatible Blustream USB HDBaseT Transmitter (Device) extender. Host selection supports both auto or manual operation and can be controlled via the front panel button or RS-232 from 3rd party control solutions.

• 1 x USB-A and 1 x USB-C host connection
• 2 x USB-A ports for connection to local devices
• Manual or auto Host switching
• Supports bi-directional RS-232 with compatible HDBaseT products

Power and Installation Simplicity

Bi-directional PoC (Power over Cable) allows the extenders to be powered from either the host or device unit for installation flexibility. The UEX3H-WP-US also features simple plug and play operation with no driver installation or setup required.

• Bi-directional PoC supports 12-48V PoC
• PoC function can be enabled/disabled via dipswitch
• 1 x USB-C host charging port for connection of external power supply to power host device
• Provides up to 500mA combined power to USB devices

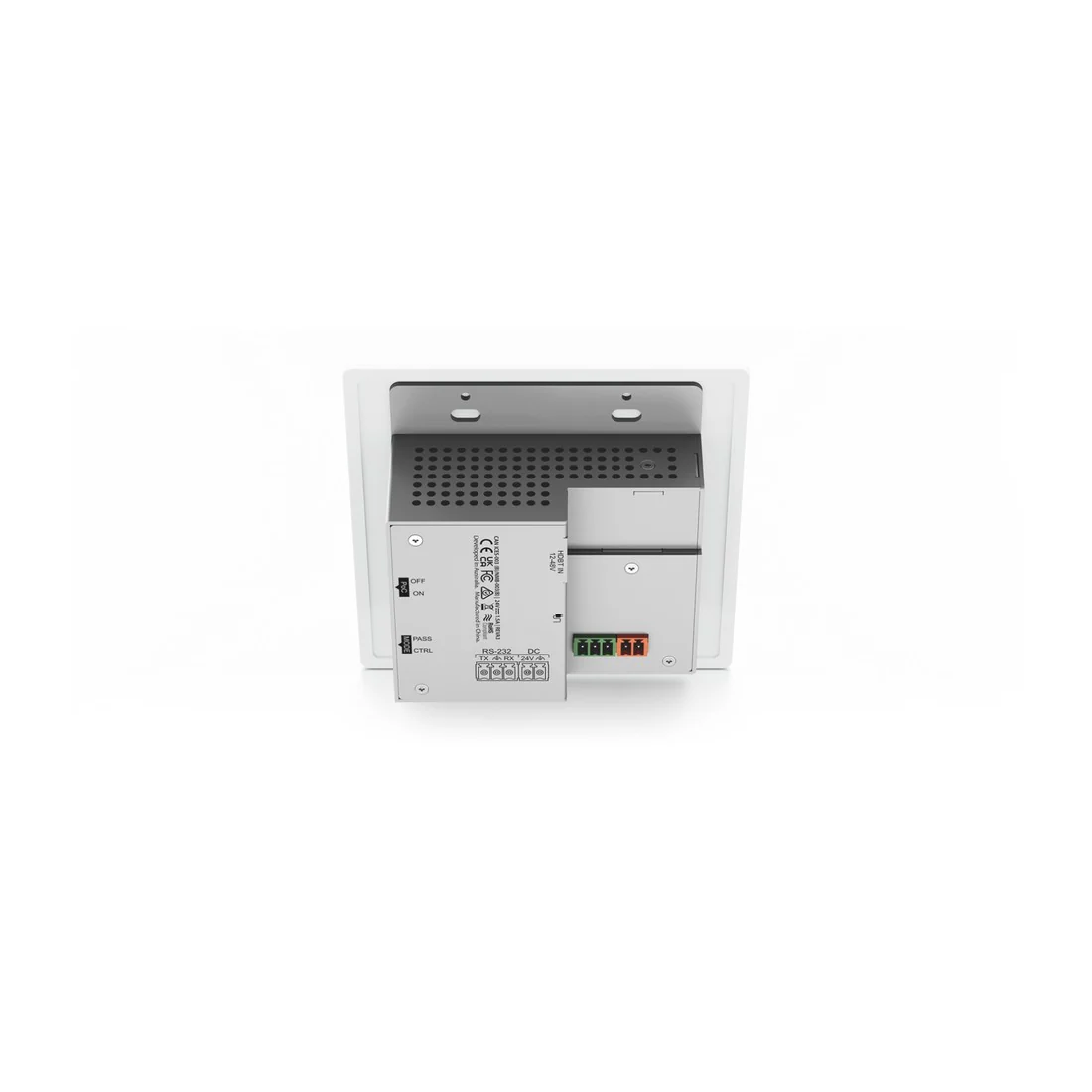

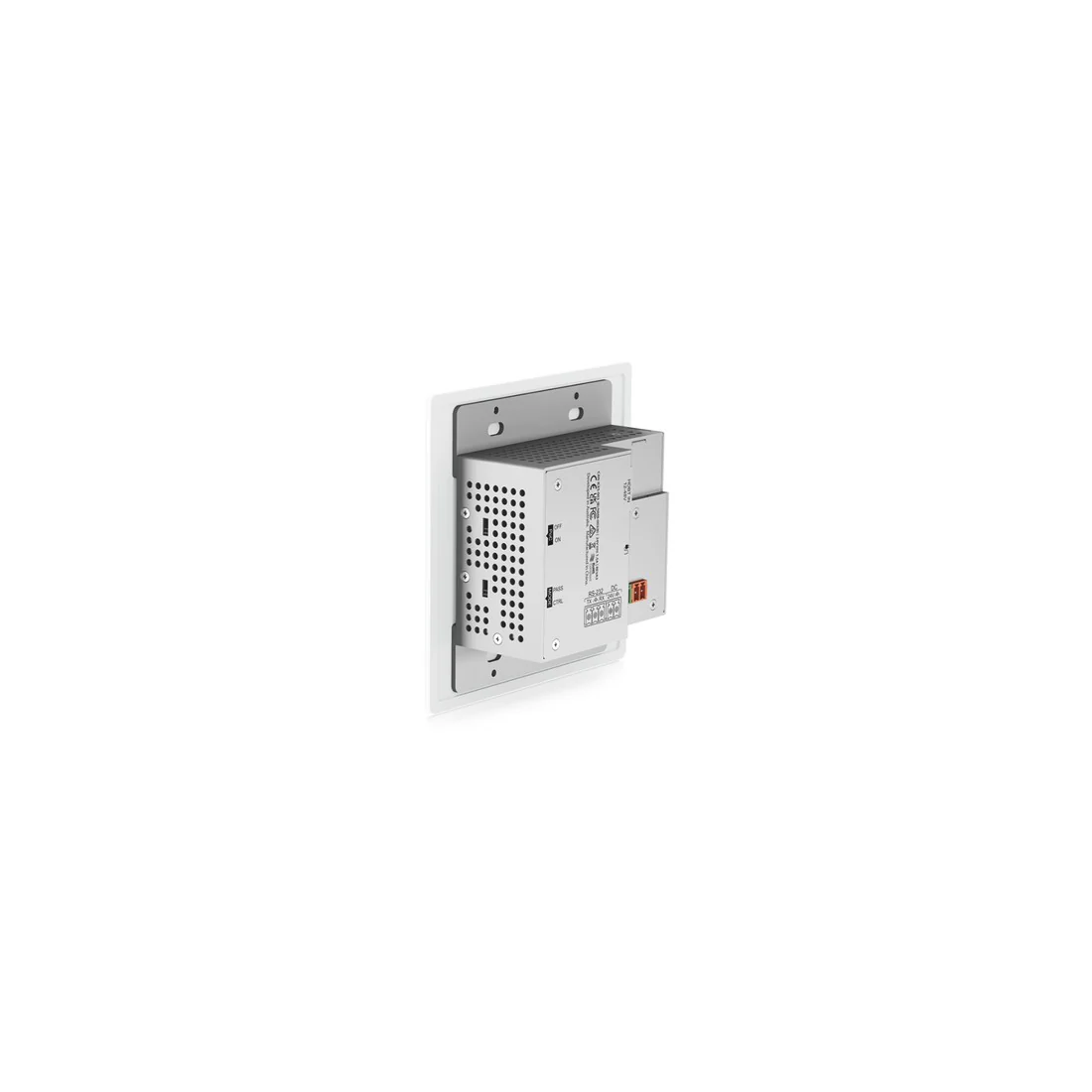

• Magnetic faceplate surround and US Decora style backbox compatibility

Important Compatibility Notes

This model is designed for USB 3.2 data transfer only and requires a compatible Blustream USB 3.2 HDBaseT Device product to complete the link. It is compatible with Blustream UEX3D and UEX3D-WP products.

• Requires compatible Blustream USB 3.2 HDBaseT Device product
• Compatible with Blustream UEX3D and UEX3D-WP
• Does not support DP Alt Mode video pass-through

Frequently Asked Questions

1. How far can the UEX3H-WP-US extend USB 3.2 Gen1 signals? It supports USB 3.2 Gen1 signal extension up to 100m over HDBaseT using a single CAT6A cable.
2. Is it compatible with older USB devices? Yes. The UEX3H-WP-US is backwards compatible with USB 2.0 and 1.1 devices.
3. Does it need drivers or software setup? No. It is simple plug and play, with no driver installation or setup required.
4. Does this wall plate support DP Alt Mode video pass-through? No. This product is for USB 3.2 data transfer only and does not support DP Alt Mode video pass-through.
5. Do I need another unit for operation? Yes. It requires a compatible Blustream USB 3.2 HDBaseT Device product such as the UEX3D or UEX3D-WP.
