iDatalink Maestro HRN-RR-CH3 Factory Integration Adapter (HRNRRCH3)

iDatalink HRN-RR-CH3 Factory Integration Adapter

Connect a car stereo with iDatalink capability and retain steering wheel controls and factory amp in select Chrysler-made vehicles (also required: ADS-MRR or ADS-MRR2 module) Radio replacement T-harness for select Chrysler, Dodge and Jeep vehicles 2013 and up with 52-pin radio plug. Greatly simplifies the installation of the Maestro RR module.

Features:

• Allows installation of a new receiver with iDatalink port in select Chrysler vehicles (also requires the Maestro ADS-MRR module)
• Retains the use of your steering wheel audio controls and factory amp
• Displays engine performance data on touchscreen with select Alpine, JVC, Kenwood and Pioneer receivers

Vehicle Compatibility:

Chrysler:

• 200 (Without Amplifier): 2015 - 2017
• 200 (With Amplifier): 2015 - 2017
• 300 (Without Amplifier): 2015 - 2019
• 300: 2015 - 2020
• 300 (With Amplifier w/o Harman Kardon): 2015 - 2019
• 300 (With Harman Kardon Sound System): 2015 & 2017 - 2019
• Pacifica (Without Amplifier w/ Active Noise Cancelling Module): 2017 - 2021
• Pacifica (Without Amplifier w/o Active Noise Cancelling Module): 2017 - 2021
• Pacifica (With Amplifier): 2017 - 2021
• Voyager (Without Amplifier w/ Active Noise Cancelling Module): 2020 - 2021
• Voyager (Without Amplifier w/o Active Noise Cancelling Module): 2020 - 2021
• Voyager (With Amplifier): 2020 - 2021

Dodge:

• Challenger (Without Amplifier): 2015 - 2021
• Challenger (With Amplifier w/o Harman Kardon): 2015 - 2021
• Challenger (With Harman Kardon Sound System): 2015 - 2021
• Charger (Without Amplifier): 2015 - 2021
• Charger (With Amplifier w/o Harman Kardon): 2015 - 2021
• Charger (With Harman Kardon Sound System): 2015 - 2021
• Durango: 2014 - 2020
• Viper (With 8.4" screen): 2013 - 2017

Fiat:

• 500 Abarth: 2016 - 2017
• 500: 2016 - 2019
• 500L: 2014 - 2020
• 500X (Without Amplifier): 2016 - 2022
• 500X (With Amplifier): 2016 - 2022
• 500c: 2016 - 2017

Jeep:

• Cherokee: 2014 - 2021
• Compass (With 5" Screen / Without Amplifier): 2017 - 2021
• Compass (With 5" Screen / With Amplifier): 2017 - 2021
• Compass (With 7" screen / Without Amplifier): 2017 - 2021
• Compass (With 7" screen With Amplifier): 2017 - 2021
• Compass (With 8.4" screen / Without Amplifier): 2017 - 2021
• Compass (With 8.4" screen With Amplifier): 2017 - 2021
• Gladiator (With 5" Screen Aftermarket Radio must be Shallow Mount and Does Not Retain Back Up Camera): 2020 - 2021
• Gladiator (With 7" screen Aftermarket Radio must be Shallow Mount and Does Not Retain Back Up Camera): 2020 - 2021
• Gladiator (With 8.4" screen Aftermarket Radio must be Shallow Mount and Does Not Retain Back Up Camera): 2020 - 2021
• Grand Cherokee (Without Amplifier): 2014 - 2021
• Grand Cherokee (With Amplified 19 Speaker Sound system): 2014 - 2015
• Grand Cherokee (With Amplified 9 Speaker Sound System): 2014 - 2015
• Grand Cherokee (With Amplifier w/o Harman Kardon): 2016 - 2021
• Grand Cherokee (With Harman Kardon Sound System): 2016 - 2021
• Renegade (Without Amplifier): 2015 - 2021
• Renegade (With Amplifier): 2015 - 2021
• Wrangler JL (With 5" Screen Aftermarket Radio must be Shallow Mount and Does Not Retain Back Up Camera): 2018 - 2021
• Wrangler JL (With 7" screen Aftermarket Radio must be Shallow Mount and Does Not Retain Back Up Camera): 2018 - 2021
• Wrangler JL (With 8.4" screen Aftermarket Radio must be Shallow Mount and Does Not Retain Back Up Camera: 2018 - 2021

Ram:

• 1500 (With 12" screen and Does Not Retain Back Up Camera): 2019 - 2021
• 1500 (With 3" Screen): 2013 - 2018
• 1500 (With 5" Screen): 2013 - 2018
• 1500 (With 5" Screen and Does Not Retain Back Up Camera): 2019 - 2021
• 1500 (With 8.4" screen): 2013 - 2018
• 1500 (With 8.4" screen and Does Not Retain Back Up Camera): 2019 - 2021
• 1500 Classic (With 3" Screen): 2019 - 2021
• 1500 Classic (With 5" Screen): 2019 - 2021
• 1500 Classic (With 8.4" screen): 2019 - 2021
• 2500 (With 12" screen and Does Not Retain Back Up Camera): 2019 - 2021
• 2500 (With 3" Screen): 2013 - 2018
• 2500 (With 5" Screen): 2013 - 2018
• 2500 (With 5" Screen and Does Not Retain Back Up Camera): 2019 - 2021
• 2500 (With 8.4" screen): 2013 - 2018
• 2500 (With 8.4" screen and Does Not Retain Back Up Camera): 2019 - 2021
• 3500 (With 12" screen and Does Not Retain Back Up Camera): 2019 - 2021
• 3500 (With 3" Screen): 2013 - 2018
• 3500 (With 5" Screen): 2013 - 2018
• 3500 (With 5" Screen and Does Not Retain Back Up Camera): 2019 - 2021
• 3500 (With 8.4" screen): 2013 - 2018
• 3500 (With 8.4" screen and Does Not Retain Back Up Camera): 2019 - 2021
• Promaster (With 3" Screen): 2017
• Promaster (With 5" Screen): 2014 - 2021
• Promaster City (With 3" Screen): 2017 - 2021
• Promaster City (With 5" Screen): 2017 - 2021

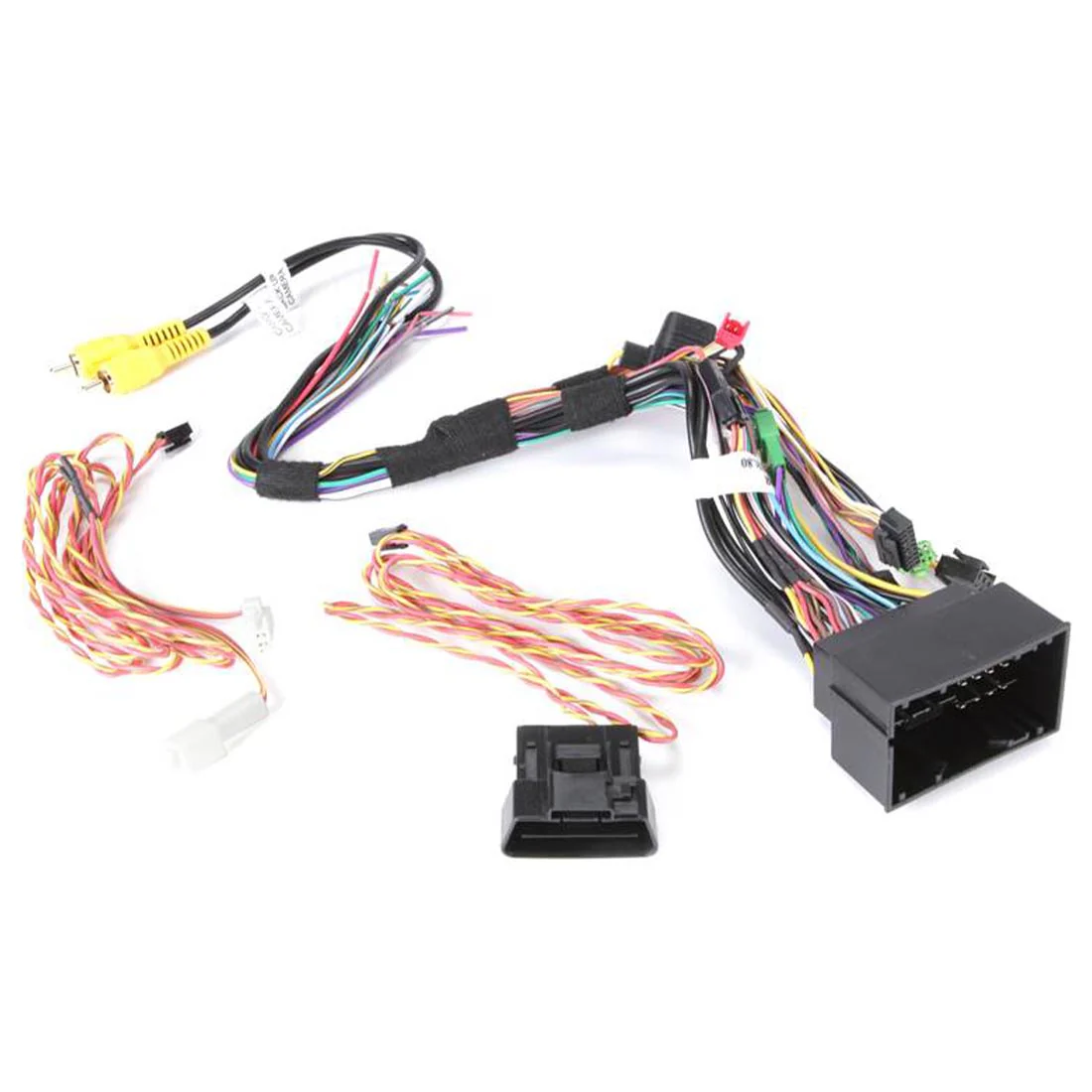

What's in the Box:

• iDatalink HRN-RR-CH3 Factory Integration Adapter owner's manual
• Chrysler/Dodge/Jeep installation harness (for use with Maestro RR interface)
• OBDII harness
• T-harness.
