iFi Audio 0311016 Zen Can Signature Headphone Amp (0311016)

iFi Audio 0311016 Zen Can Signature Headphone Amp (0311016)

The iFi Audio 0311016 ZEN CAN Signature is an award-winning, all-analogue headphone amp refined with upgraded circuitry and audiophile components. It delivers high output power via balanced connections and includes the SilentPower iPower2 power supply with Active Noise Cancellation for ultra-quiet operation.

Power that unlocks demanding headphones

Its balanced, symmetrical dual-mono amplifier can deliver up to 1,890mW (11.0V) into 64-ohm loads and offers over 15V to 600-ohm loads via the balanced output. Compared with typical laptop outputs, it supplies dramatically higher drive—up to 52x more headphone power.

• Full discrete Class A balanced circuitry
• Gold-plated 4.4mm balanced connection
• Whisper-quiet noise floor from premium engineering

Quiet, refined analogue performance

Class A discrete balanced circuitry, inherited from the flagship Pro iCAN, and a fully discrete, balanced audio path keep distortion and noise exceptionally low. A custom OV Series op-amp contributes to extremely low noise, low distortion (0.0001%), and wide bandwidth.

• Military-spec PCB to enhance signal integrity
• ELNA Silmic II and OS-CON capacitors for noise reduction and stable frequency characteristics
• iFi/AMR OV-series op-amps for low noise and low distortion

Flexible connectivity for laptops, phones, and DACs

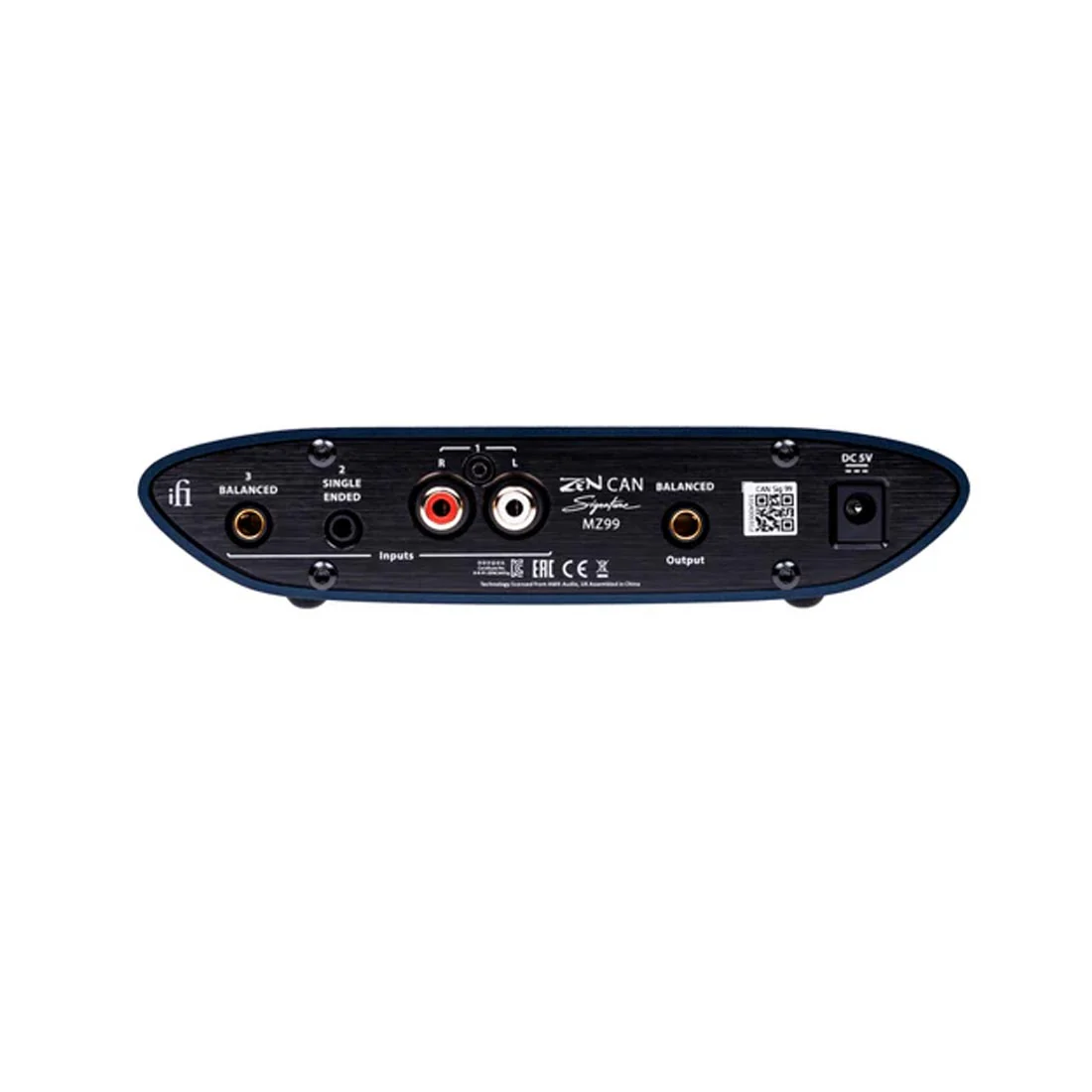

Connect a wide range of sources and headphones with versatile inputs and outputs. The analogue balanced output on the rear is ideal for active speakers via a 4.4mm to XLR adapter; thanks to the fully balanced dual-mono design, this is the recommended line-out option.

• Inputs: stereo RCA, 3.5mm single-ended, 4.4mm balanced
• Headphone outputs: 4.4mm balanced, 6.3mm single-ended (adapter available for 3.5mm plugs)
• Rear analogue balanced line output (4.4mm) for active speakers

Gain, XSpace, and XBass — dial in your sound

PowerMatch provides four gain settings in 6 dB steps (0dB, 6dB, 12dB, 18dB) to suit super-sensitive IEMs and power-hungry headphones. Start at 0dB and raise as needed for optimal volume and comfort.

• XSpace: analogue processing to enhance soundstage
• XBass: analogue processing to reinforce low-frequency response

Tailored ActiveEQ versions for popular headphones

Select the ZEN CAN Signature version that matches your headphones, then activate the dedicated ActiveEQ at the touch of a button.

• HD6XX: accentuates specific treble and bass frequencies, elevating the 8kHz treble and bass below 50Hz; also compatible with Sennheiser HD 650 and other Sennheiser models
• HFM: optimized for HIFIMAN headphones (e.g., Sundara, HE-4XX), deepening bass texture and sharpening the upper mid-range
• MZ99: tailored for Meze 99 series, adjusting treble for added “vivaciousness” and intensifying mid-low bass

Included SilentPower iPower2 power supply

The ZEN CAN Signature includes the iPower2 power supply featuring Active Noise Cancellation II to eliminate incoming EMI/RFI. It feeds ultra-quiet power to both input and output stages for clean, clear analogue performance.

Pairs seamlessly with ZEN DAC Signature V2

For a streamlined Desk-Fi stack, connect ZEN DAC Signature V2 to ZEN CAN Signature via RCA or an iFi 4.4mm-to-4.4mm cable (recommended) for a fully balanced signal path.

Frequently Asked Questions

• How much output power does the ZEN CAN Signature provide?

  Its balanced output can deliver up to 1,890mW (11.0V) into 64-ohm loads and over 15V to 600-ohm loads. PowerMatch gain offers 0dB, 6dB, 12dB, and 18dB settings.

• What inputs and outputs are available?

  Inputs include stereo RCA, 3.5mm single-ended, and 4.4mm balanced. Outputs include a 4.4mm balanced headphone jack, 6.3mm single-ended headphone jack, and a rear 4.4mm balanced line output for active speakers (via 4.4mm to XLR adapter).

• What do XSpace and XBass do?

  XSpace expands soundstage, while XBass enhances low-frequency response—both are analogue processing modes.

• Does it include a power supply?

  Yes. The SilentPower iPower2 supply with Active Noise Cancellation II is included to reduce incoming EMI/RFI and provide ultra-quiet power.

• Are there versions optimized for specific headphones?

  Yes. HD6XX, HFM, and MZ99 versions include dedicated ActiveEQ: HD6XX elevates 8kHz treble and sub-50Hz bass, HFM deepens bass texture and sharpens upper mids, and MZ99 adjusts treble and intensifies mid-low bass.

• What’s in the box?

  ZEN CAN Signature, RCA cable, power adapter, 3.5mm to 6.35mm adapter, and a Quick Start Guide.

• Is it portable?

  Yes. It is described as an extraordinarily powerful portable amplifier.
