The IK Multimedia iLoud MTM MKII monitor delivers ultraclose-field monitoring for critical mixing with an MTM layout and built-in ARC autocalibration. It helps reduce listening fatigue while keeping reflections from desks, floors, and ceilings under tighter control.

Accurate nearfield monitoring with controlled dispersion

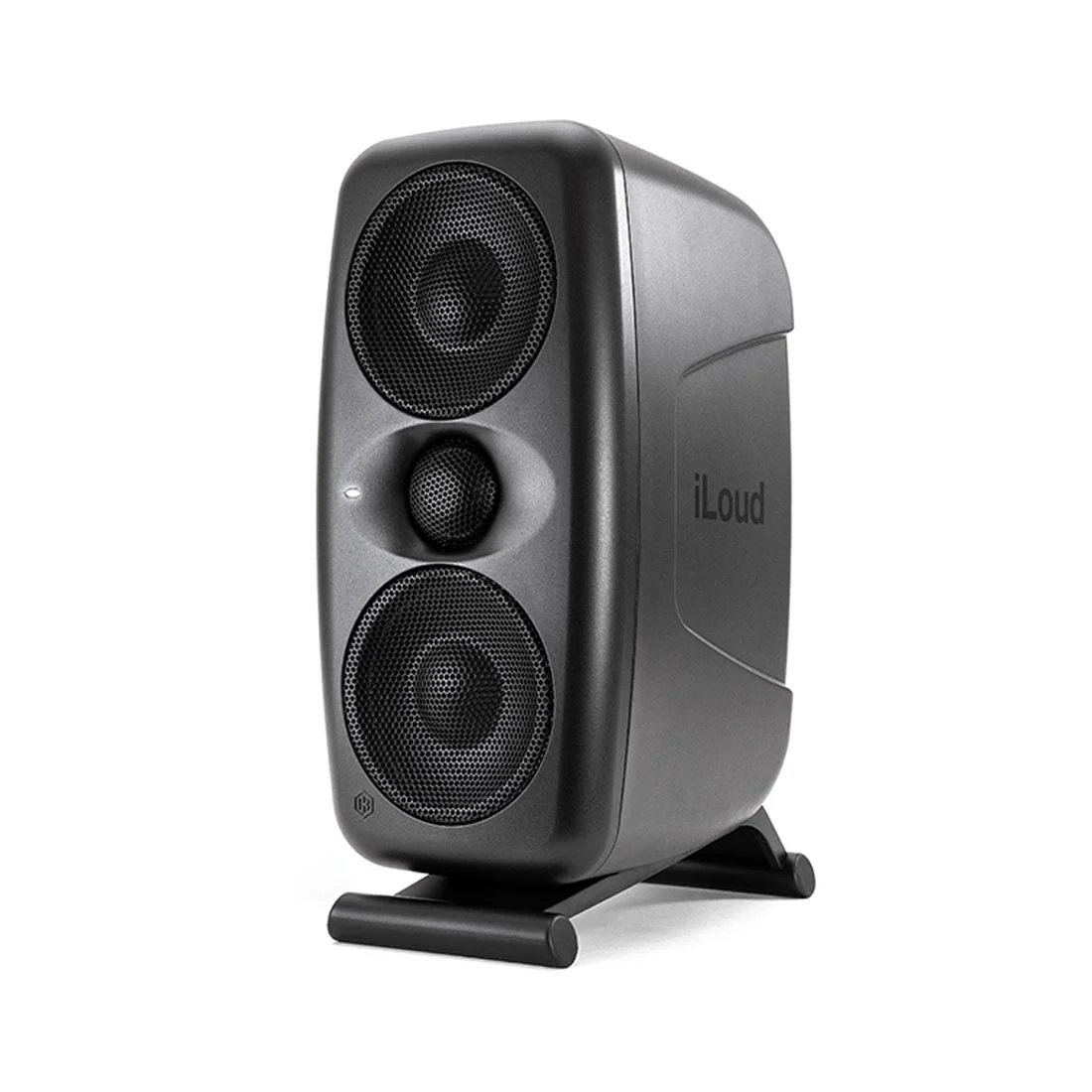

The MTM (midrange-tweeter-midrange) D’Appolito configuration creates a defined point-source presentation at short distances. As a result, it maintains rigorous vertical dispersion to reduce the impact of desktop placement and floor/ceiling reflections, while also providing a wider horizontal dispersion for a broader sweet spot.

• MTM design with point-source behaviour for short-distance monitoring
• Rigorous vertical dispersion to minimize desk, floor, and ceiling reflections
• Wider horizontal dispersion for an easier mixing position

Extended low end and clear, neutral response

Dual 3.5" custom composite woofers extend low frequencies down to 36 Hz and support fast transient response. The 1" rear-chamber tweeter adds high-definition detail, and the system delivers an ultrapflat response with extended range from 36 Hz to 32 kHz (-10 dB).

• 2 x 3.5" custom woofers for bass extension to 36 Hz
• 1" rear-chamber tweeter for high-definition playback
• Ultraflat response with 36 Hz to 32 kHz (-10 dB) frequency range

Time alignment and phase coherence for confident decisions

Precise time alignment and improved linear-phase response support natural, transparent sound. The DSP handles crossover points, filtering, time alignment, EQ, and dynamic control, while phase coherence stays within +/- 15° from 200 Hz to 20 kHz.

• Audophile-grade DSP for crossover, filtering, time alignment, EQ, and dynamic control
• Linear-phase response for natural, transparent sound
• Phase coherence within +/- 15° from 200 Hz to 20 kHz

Automatic room correction and deep control with ARC X

Built-in ARC digital autocalibration adjusts to your space in seconds and supports bypass when needed. When connected to a computer, the ARC X program adds advanced personal customization, output level balancing, time alignment between monitors, and precise correction for a flatter frequency response.

• Built-in ARC autocalibration with bypass
• ARC X control for advanced customization and system adjustments
• USB port for X-MONITOR control and firmware updates

Monitor emulations for fast A/B mix checks

ARC X includes more than 20 emulations of top-tier studio monitors and other playback systems, so comparisons stay quick and consistent. Therefore, it supports instant A/B checks of mixes from within the same monitoring setup.

• More than 20 monitor and playback-system emulations via ARC X
• Instant A/B comparisons for mix translation checks

Flexible placement and mounting in compact spaces

The compact cabinet takes up to 30% - 50% less space than comparable designs and weighs 5 lb, which supports portable and desktop setups. It includes an integrated 20° tilt stand, a horizontal base, and a built-in mic-stand thread, plus rear-panel switches for LF extension, LF cut, HF cut, and desktop position.

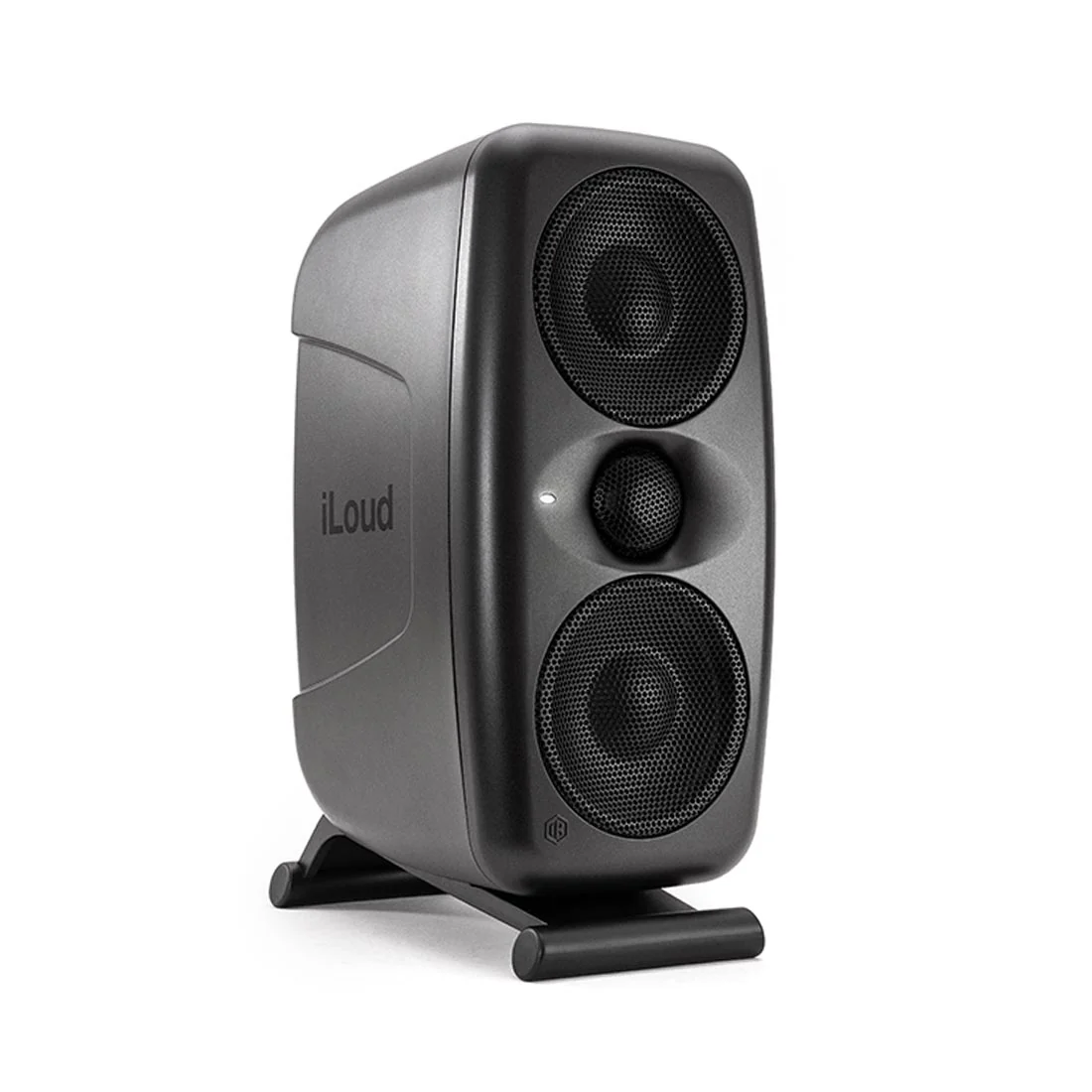

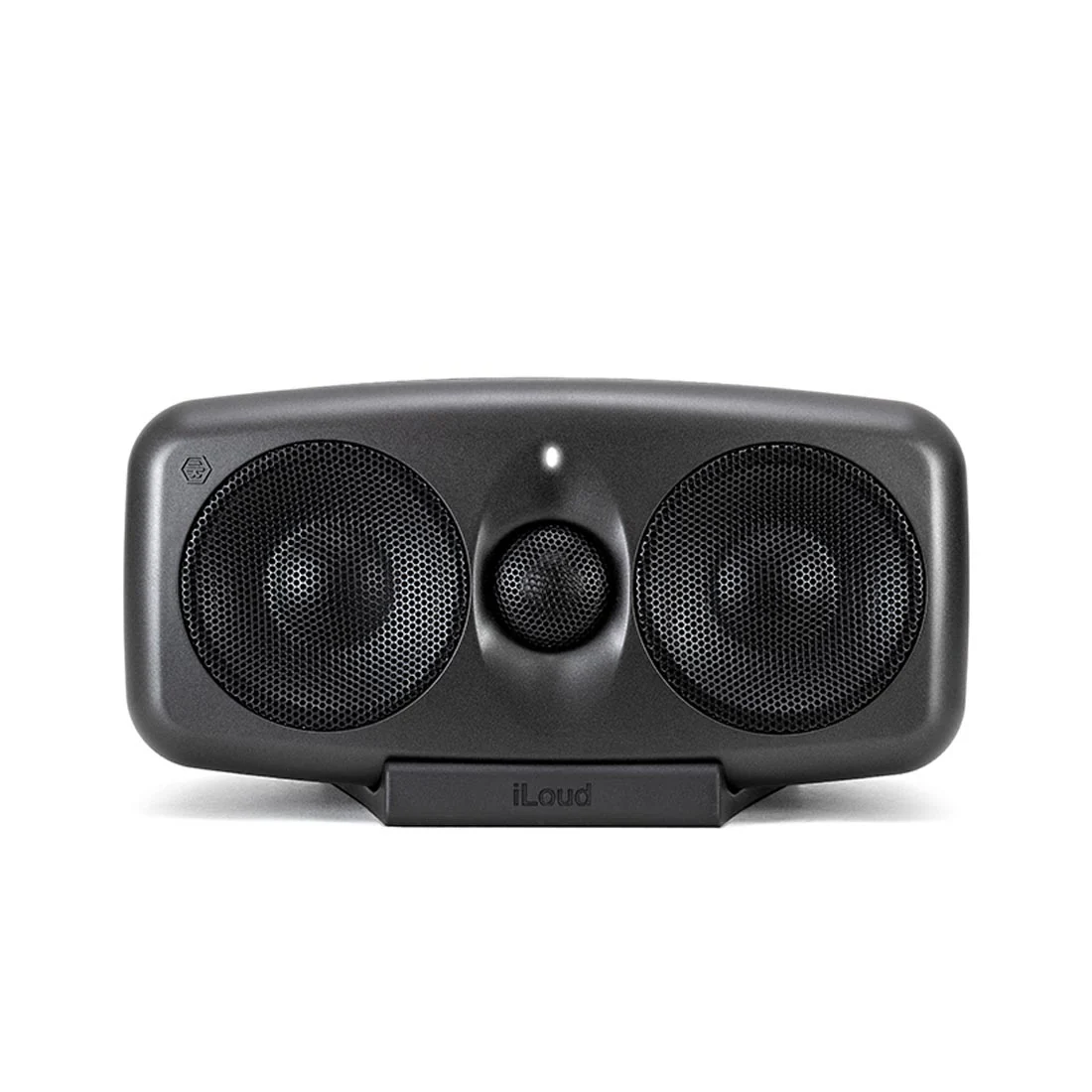

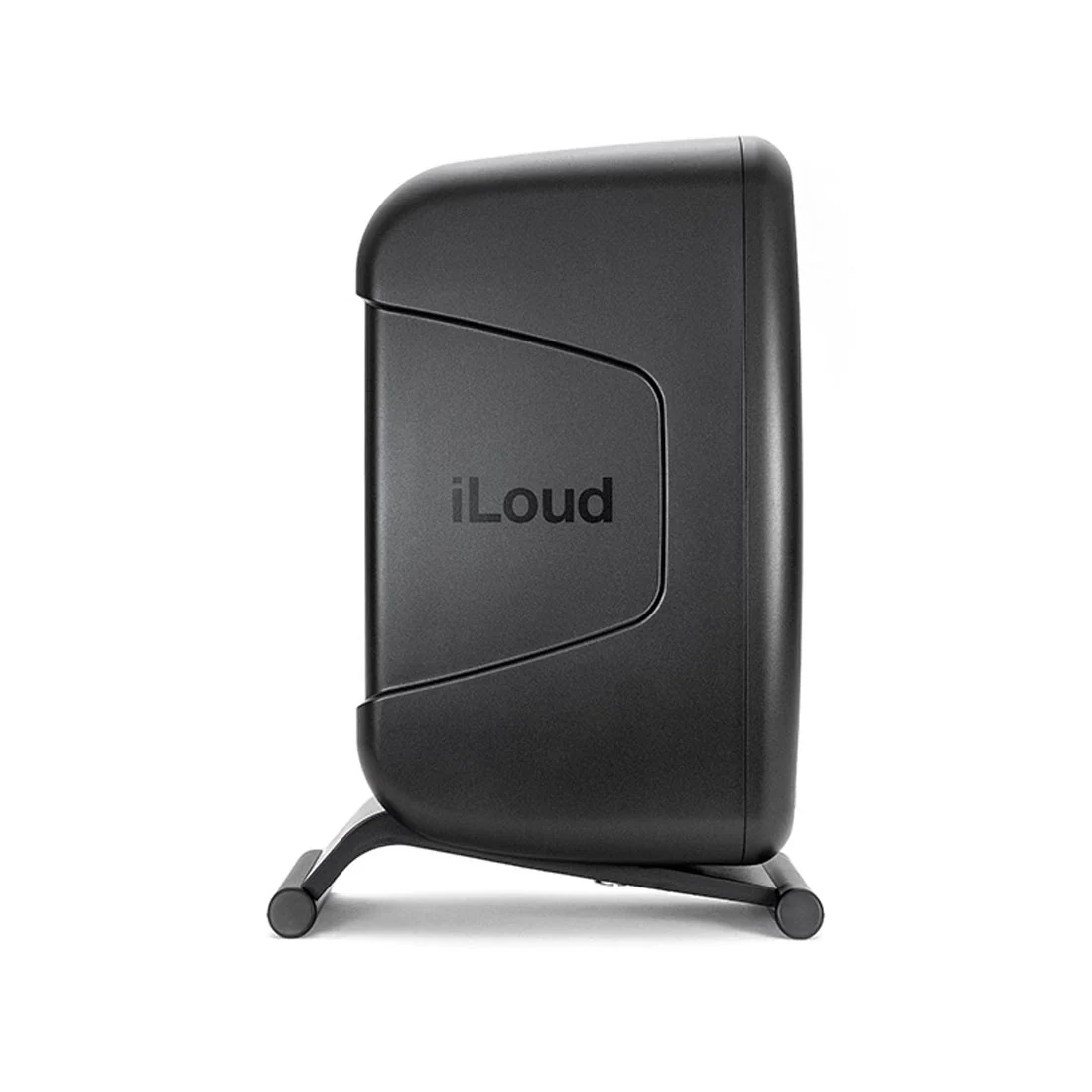

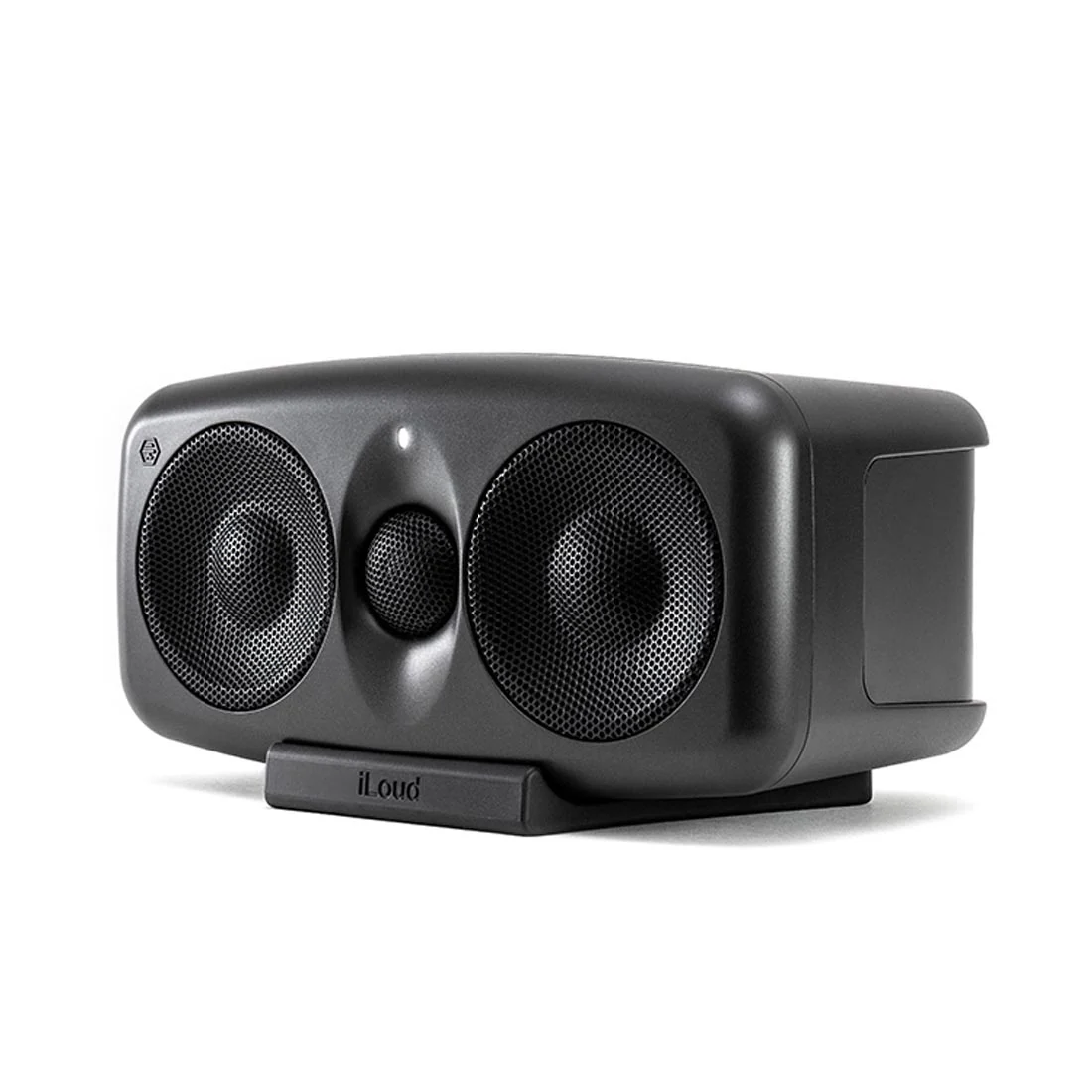

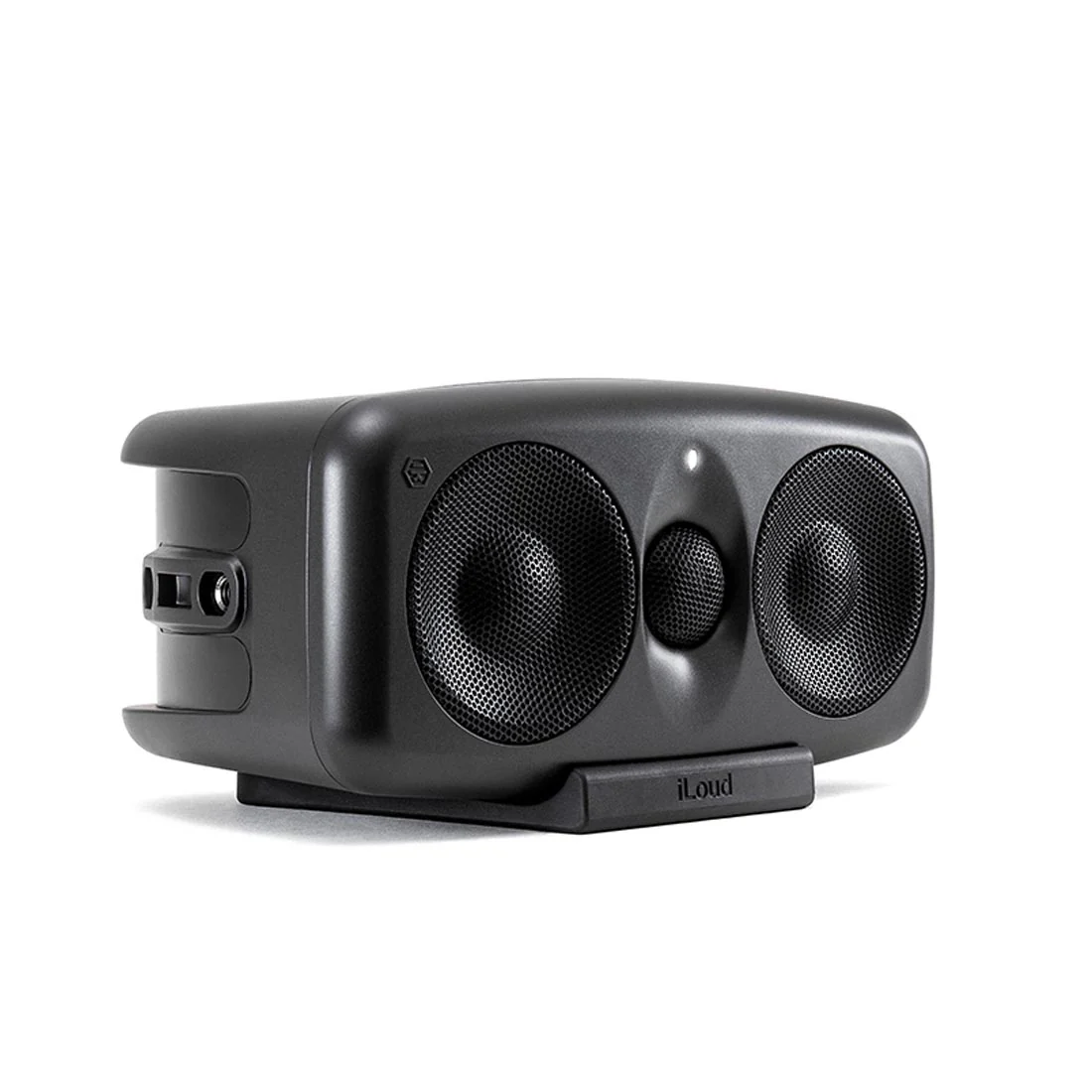

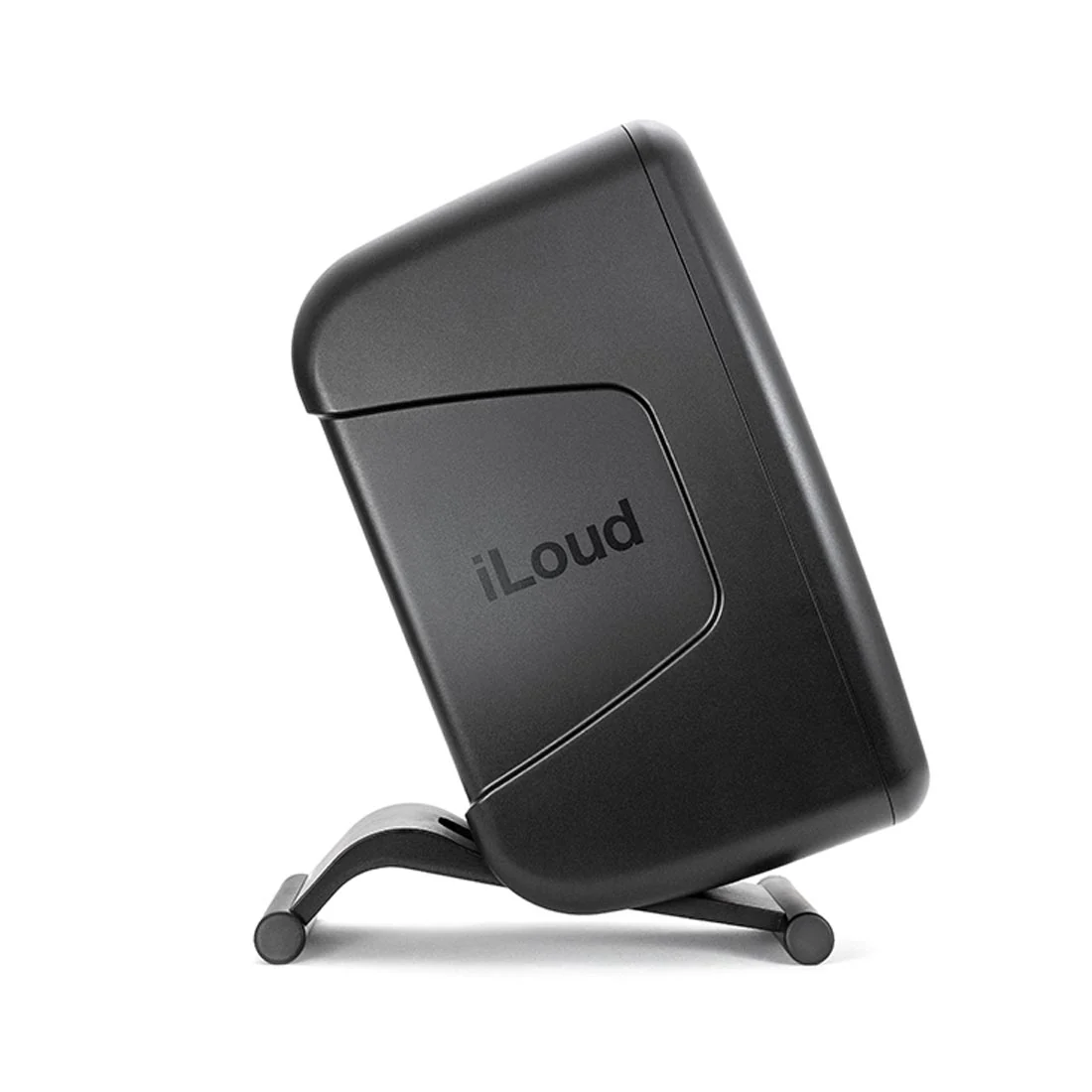

• Integrated 20° tilt stand and included horizontal base

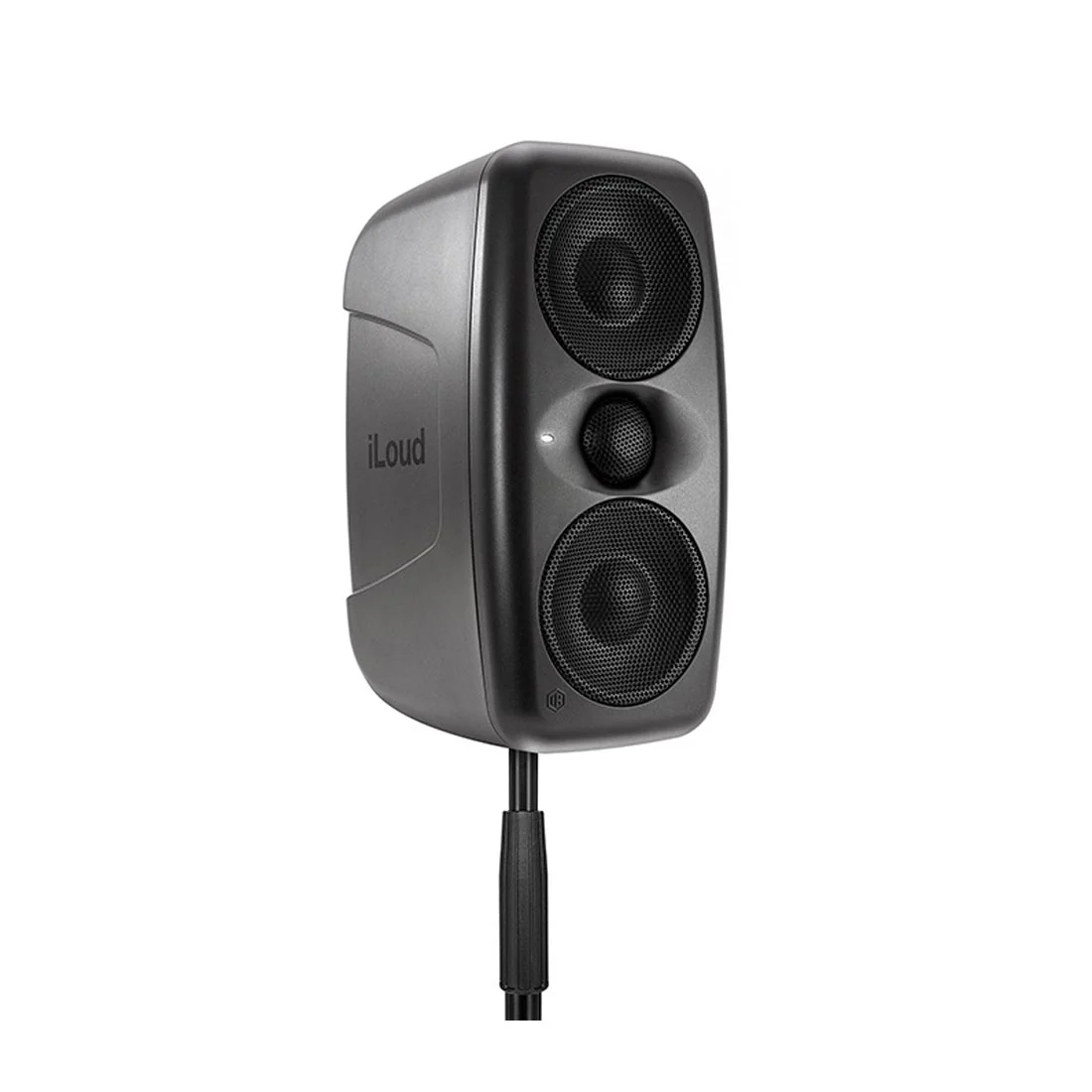

• Built-in mic-stand thread for secure positioning

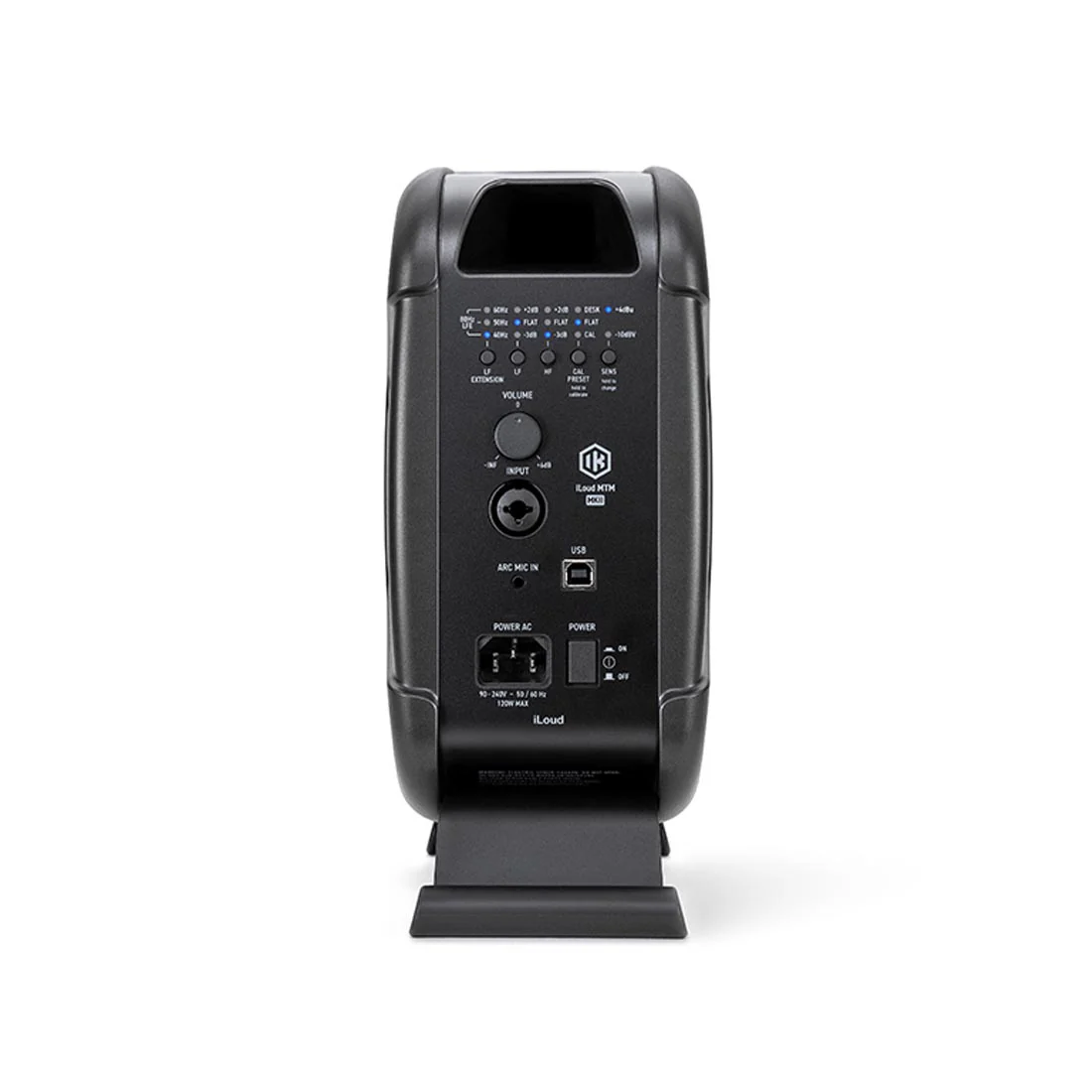

• Rear-panel controls for LF extension, LF cut, HF cut, and desktop position
• Selectable 80 Hz low-frequency cut

Connectivity and amplification for studio workflows

This biamplified two-way Class D monitor provides 100 W RMS and supports a huge maximum SPL of 112.5 dB per speaker at 1 metre. It also includes a 1/4" / XLR combo input, an ARC mic input for built-in acoustic calibration, a multicolour LED indicator, and a large bass reflex port.

• Class D biamplified design with 100 W RMS
• Max SPL of 112.5 dB per speaker at 1 metre
• 1/4" / XLR combo input and ARC mic input

---

Frequently Asked Questions

1. What drivers does the iLoud MTM MKII use? It uses two 3.5" custom composite woofers and a 1" rear-chamber tweeter.
2. How low and how high does it play? It delivers low-frequency extension to 36 Hz and a frequency response of 36 Hz to 32 kHz (-10 dB).
3. Does it include automatic room calibration? It includes built-in ARC digital autocalibration, and ARC X integration adds deeper customization and correction when connected to a computer.
4. What connections does it provide? It includes a 1/4" / XLR combo input, an ARC mic input, and a USB port for X-MONITOR control and firmware updates.
5. What is the power rating and maximum SPL? It provides 100 W RMS and reaches a maximum SPL of 112.5 dB per speaker at 1 metre.
