JL Audio Home Audio IWSv2-SYS-113 13.5" In-Wall v2 Powered Subwoofer System (IWSv2SYS113)
JL Audio Home Audio IWSv2-SYS-113 13.5" In-Wall v2 Powered Subwoofer System

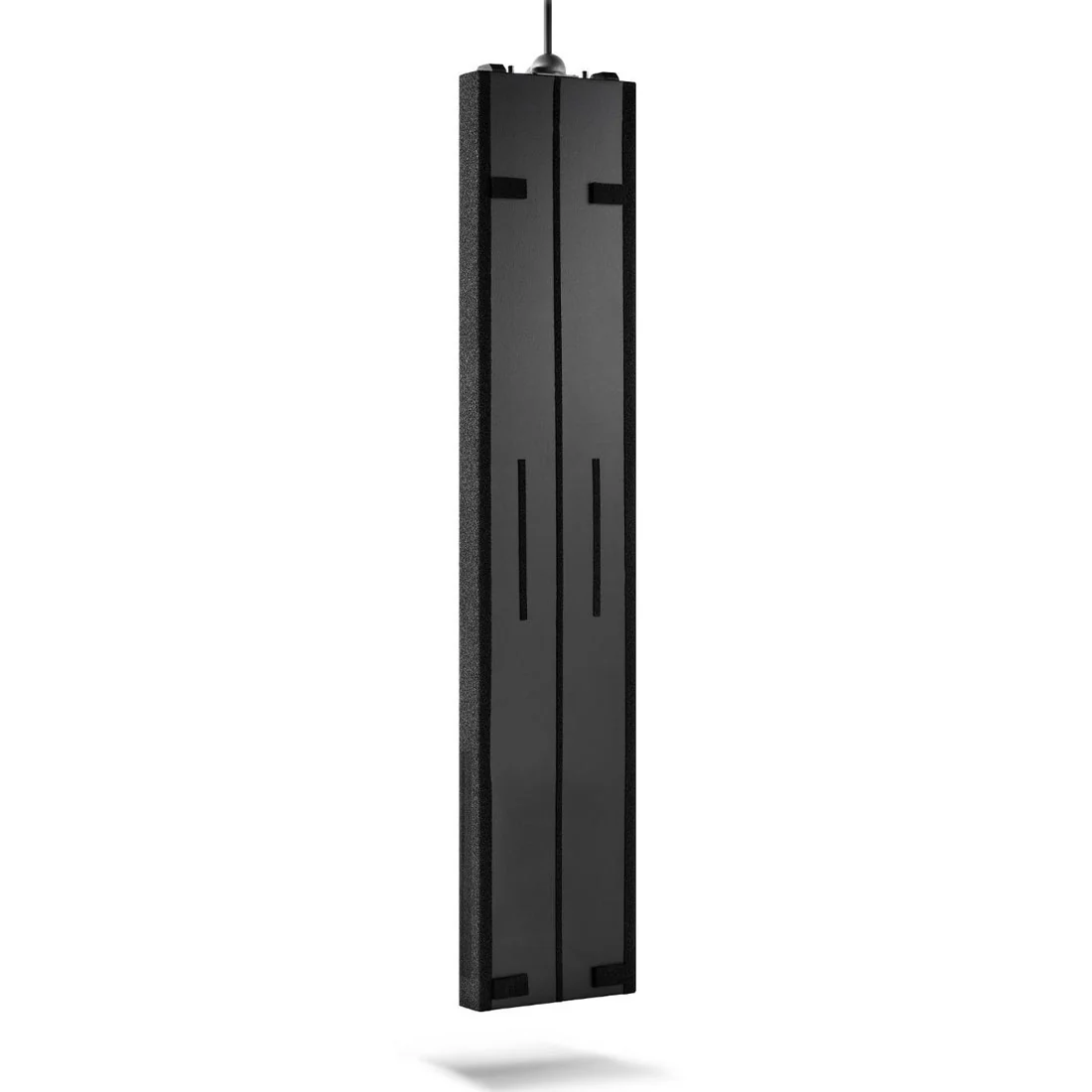

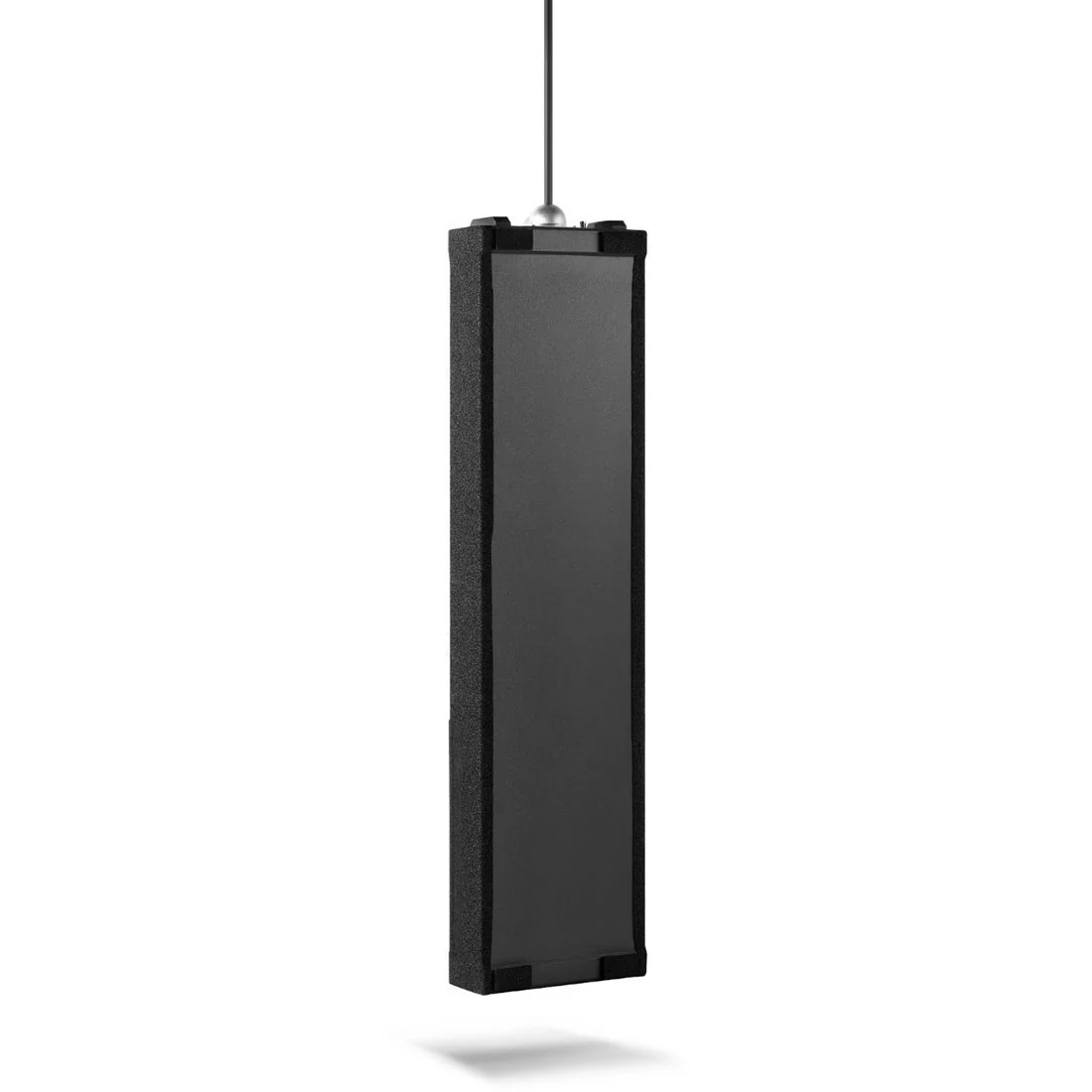

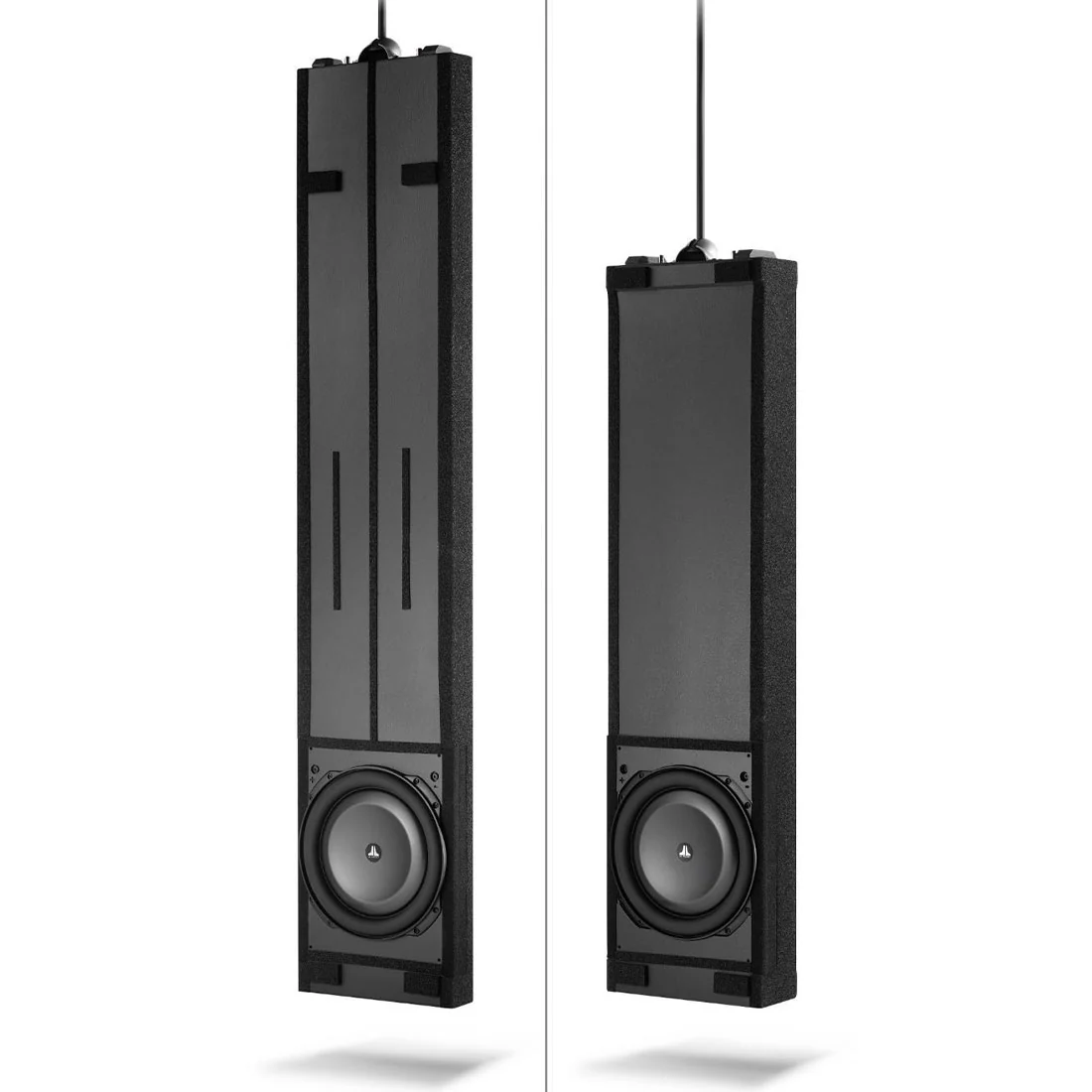

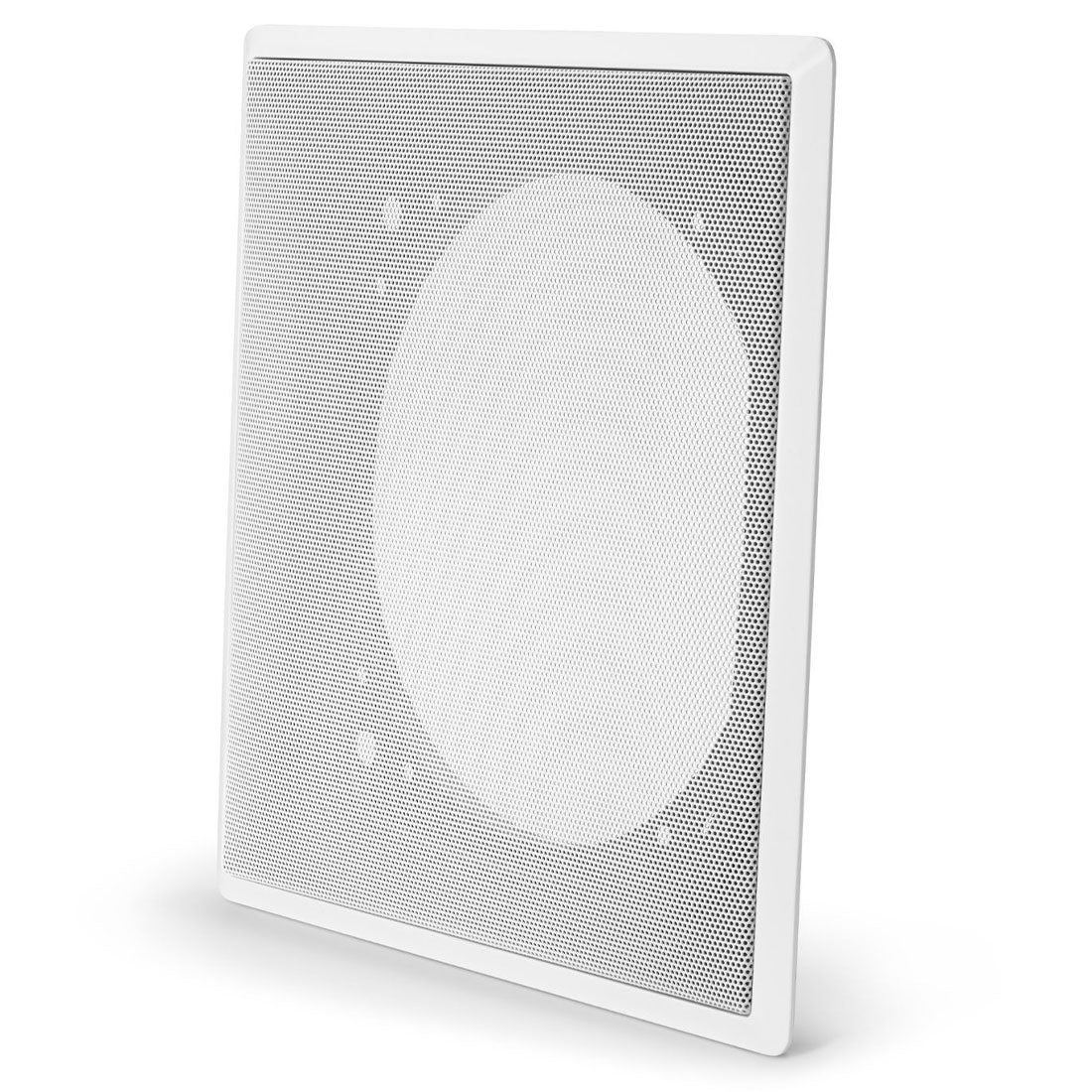

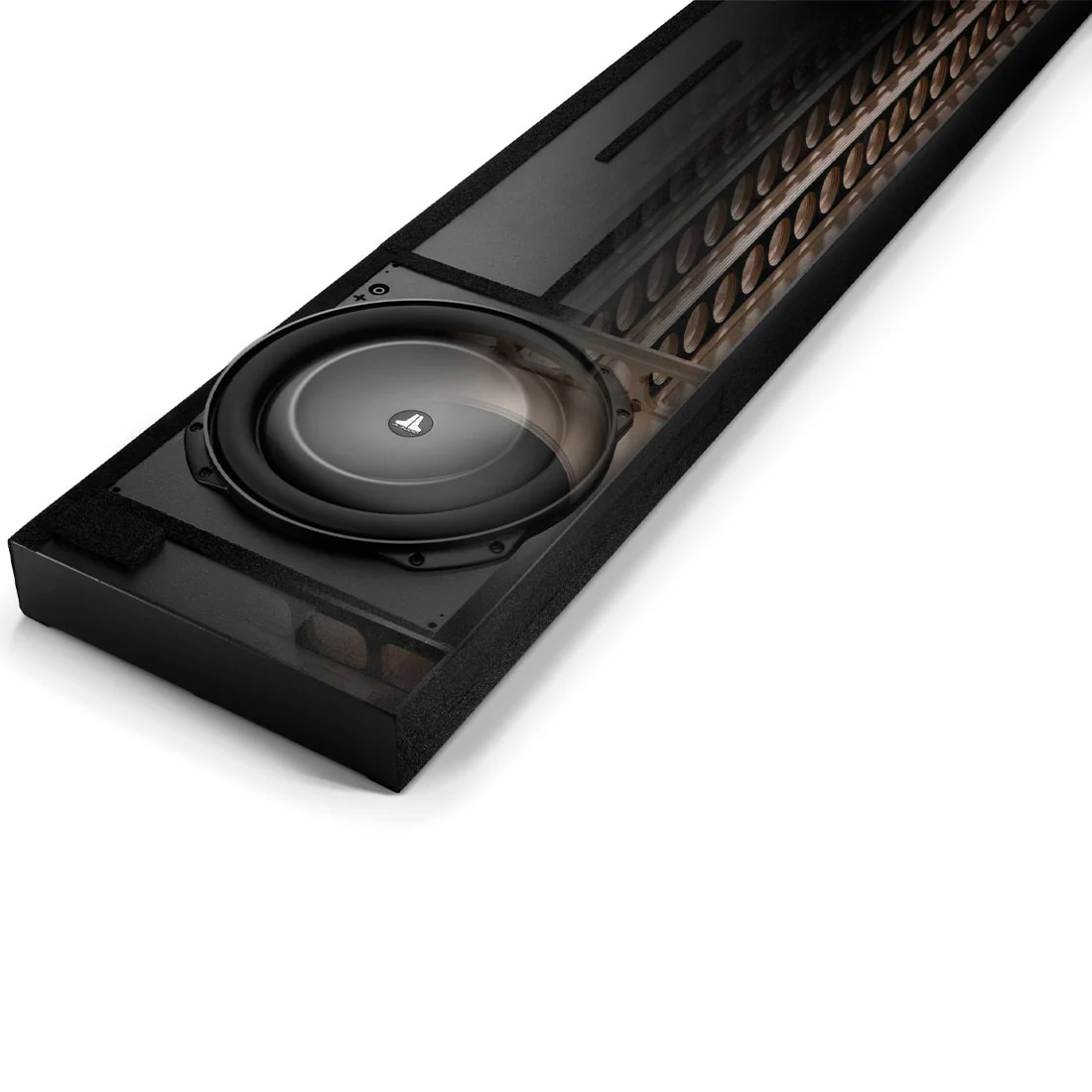

In-Wall Subwoofer System with Single 13.5-inch Subwoofer, 1000 watts The same minds that engineered JL Audio’s reference-grade Fathom and Gotham powered subwoofers have created an amazing in-wall subwoofer solution, centered on an innovative, thin-line driver with groundbreaking technologies. Housing this exotic driver is a critically engineered enclosure with a unique floating mount design to minimize wall excitation. The enclosure features extensive architectural features aimed at improving rigidity while keeping a very low profile and minimal wall thickness. A paintable, fine steel-mesh grille, also designed to control vibration, is included for each enclosure in a system. The IWSv2-SYS-113 is driven by a rack-mountable, purpose-tuned amplifier, capable of delivering up to 1 kW of clean power, and armed with serious processing features, including our acclaimed Digital Automatic Room Optimization system. There is no need to lower your expectations when selecting this remarkable in-wall solution... it's a real Fathom.
IWSv2-SYS-113 Features:
- The IWSv2-SYS-113 is available to fit a variety of 2" x 4" and 2" x 6" wall studs.
- Enclosure Finish: Flat Black (hidden from view when installed)
- Grille finish: Primer White (paintable)
- Enclosure Construction: CNC-Cut Birch Plywood

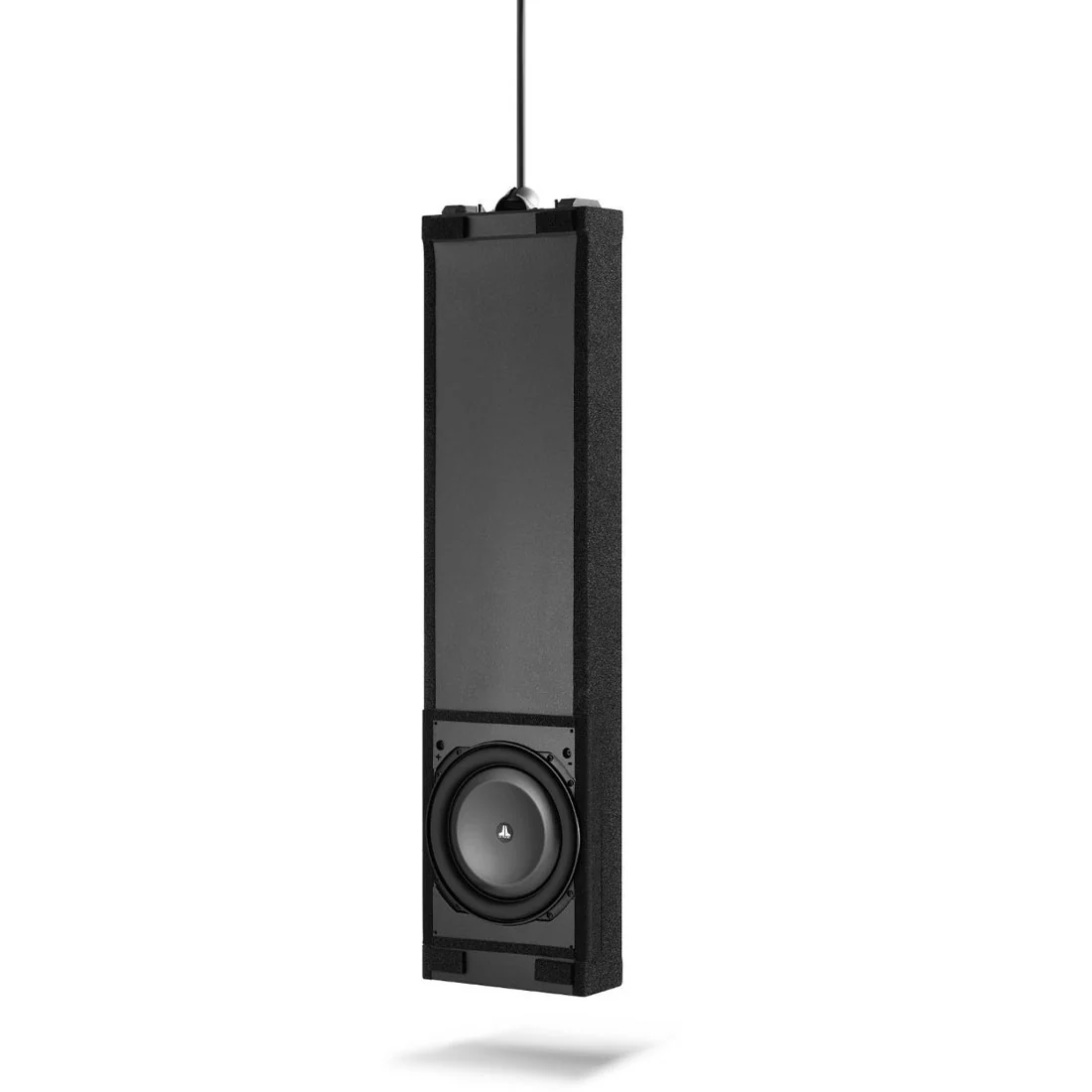

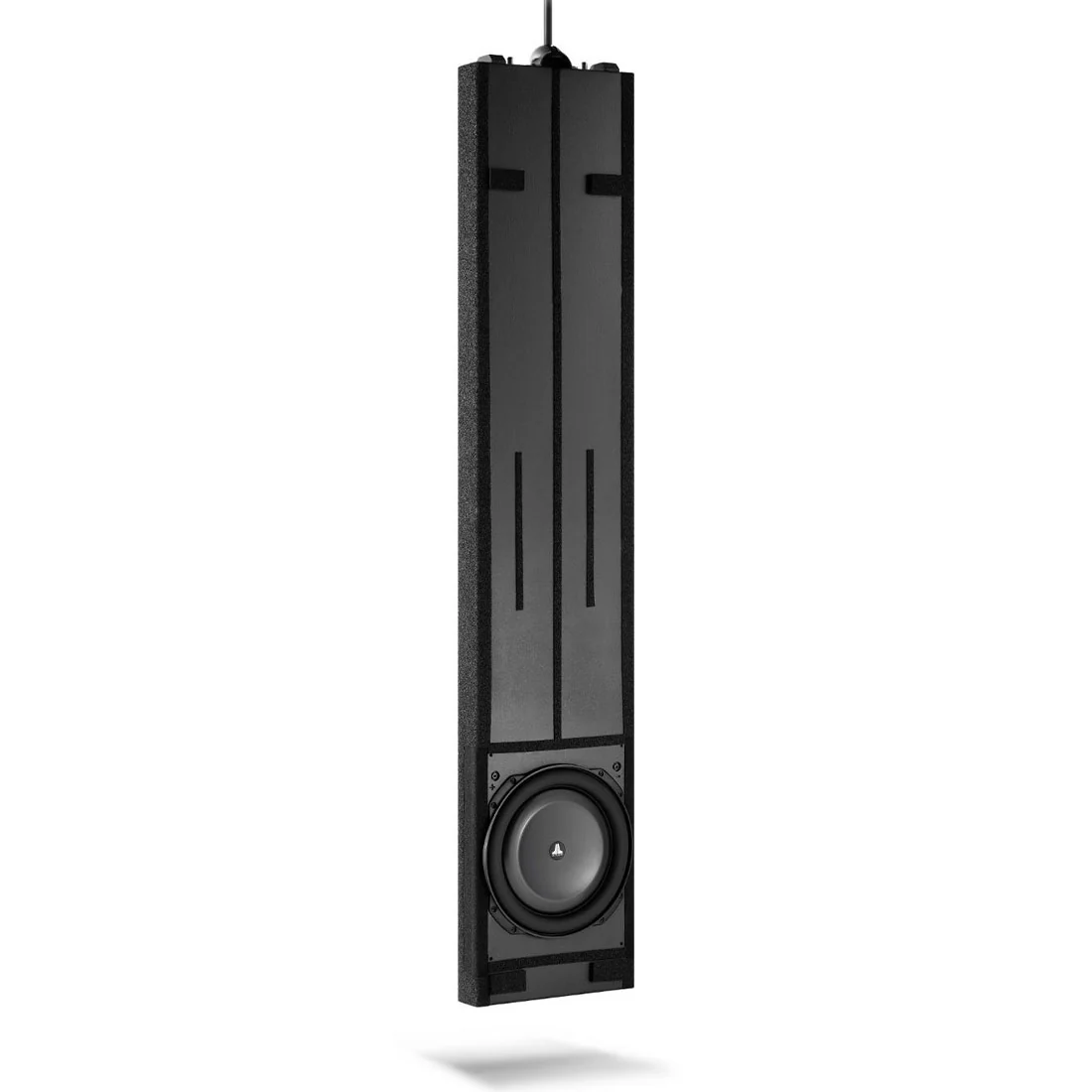

2 x 4-inch Wall Stud Enclosure Physical Specifications
| Wall Cavity Width (W) | Minimum: 14.375 in / 365 mm Maximum: 14.875 in / 378 mm |
| Wall Cavity Height (H) | Minimum: 93.625 in / 2,378 mm |
| Width (W) | 13.75 in / 349 mm |
| Height (H) | 70 in / 1,778 mm |
| Depth (D) | 2.94 in / 75 mm |
| Note: Enclosure dimensions do not include vibration-dampening padding. | |

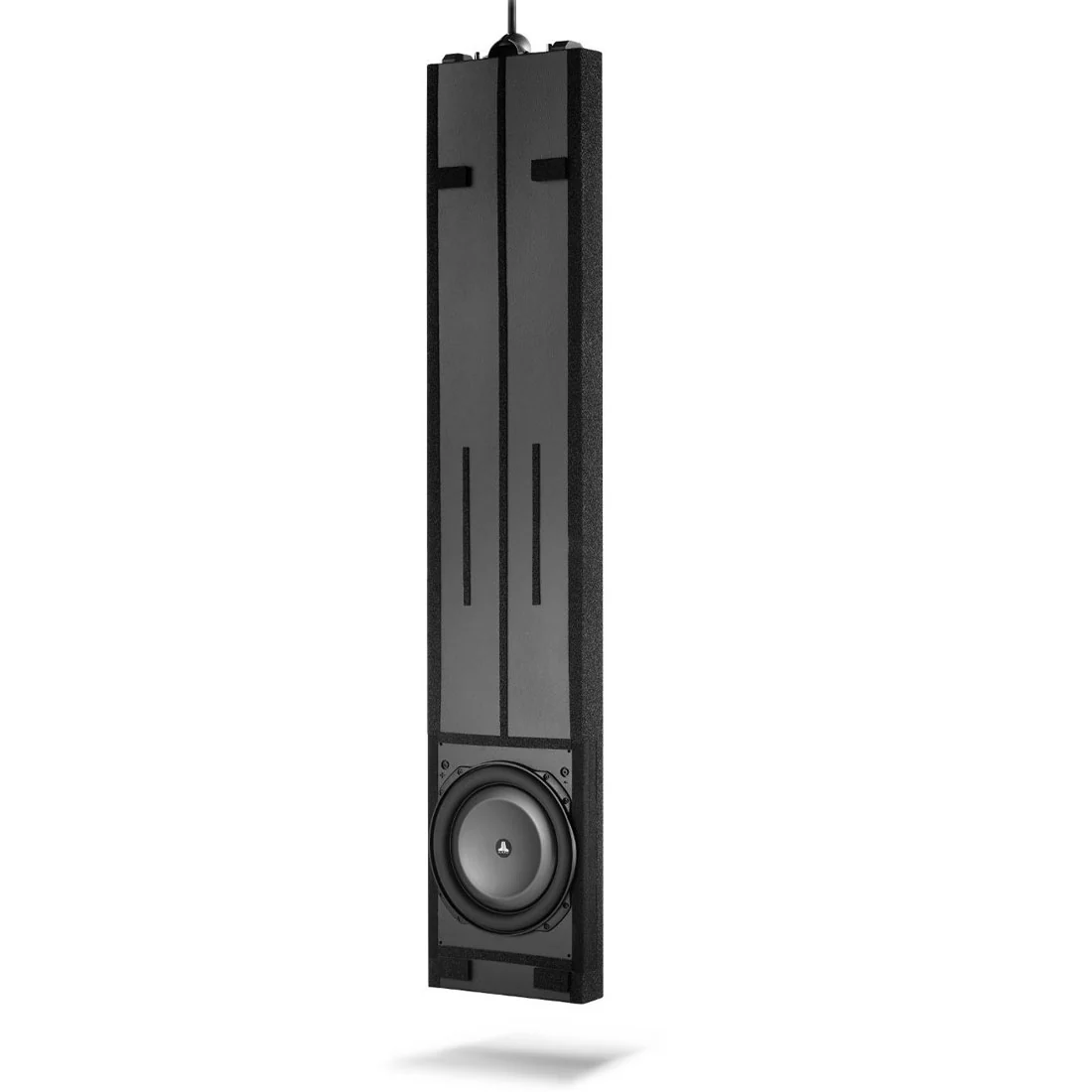

2 x 6-inch Wall Stud Enclosure Physical Specifications
| Wall Cavity Width (W) | Minimum: 14.375 in / 365 mm Maximum: 14.875 in / 378 mm |
| Wall Cavity Height (H) | 93.625 in / 2,378 mm |
| Width (W) | 13.75 in / 349 mm |
| Height (H) | 55 in / 1,397 mm |
| Depth (D) | 4.70 in / 119 mm |
| Note: Enclosure dimensions do not include vibration-dampening padding. | |

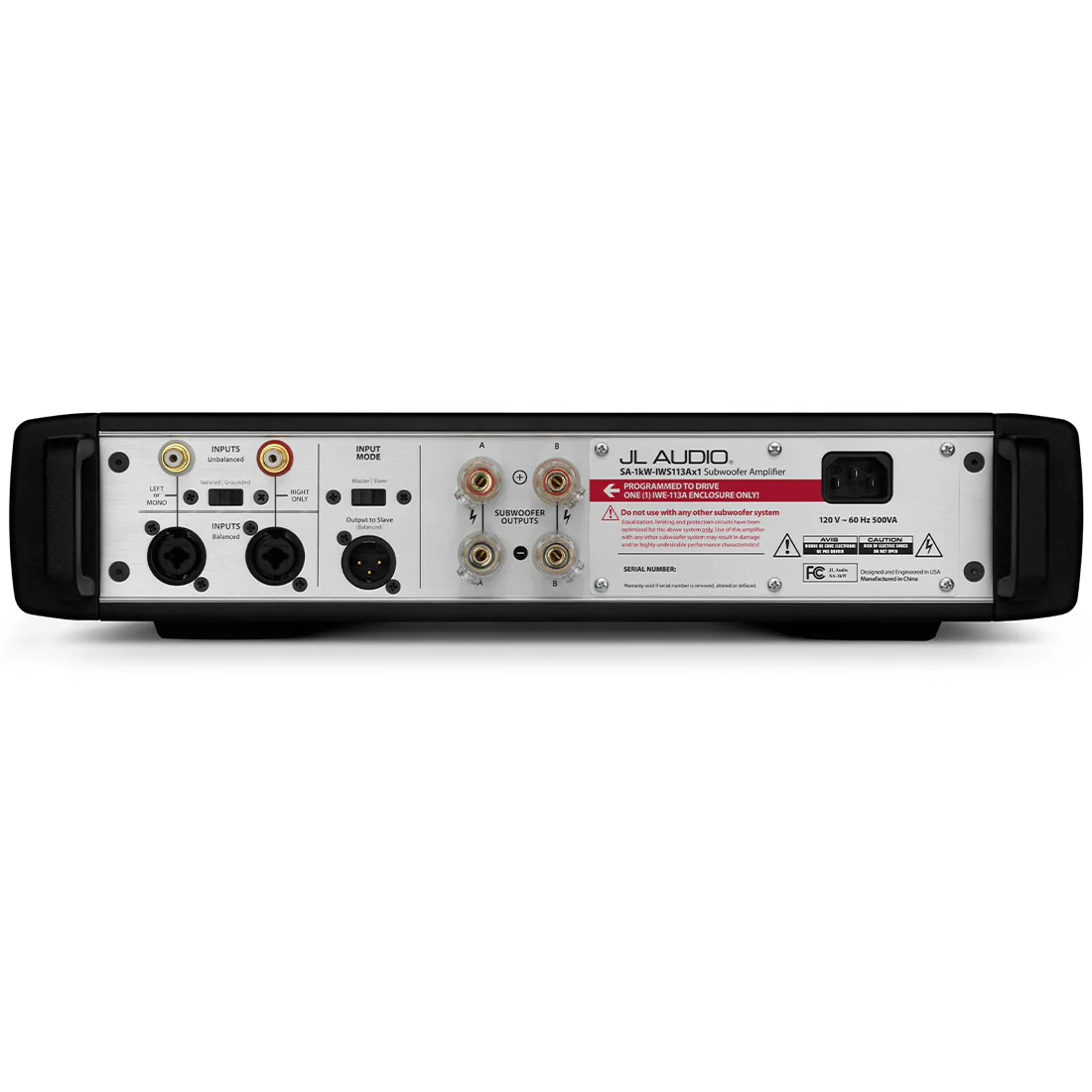

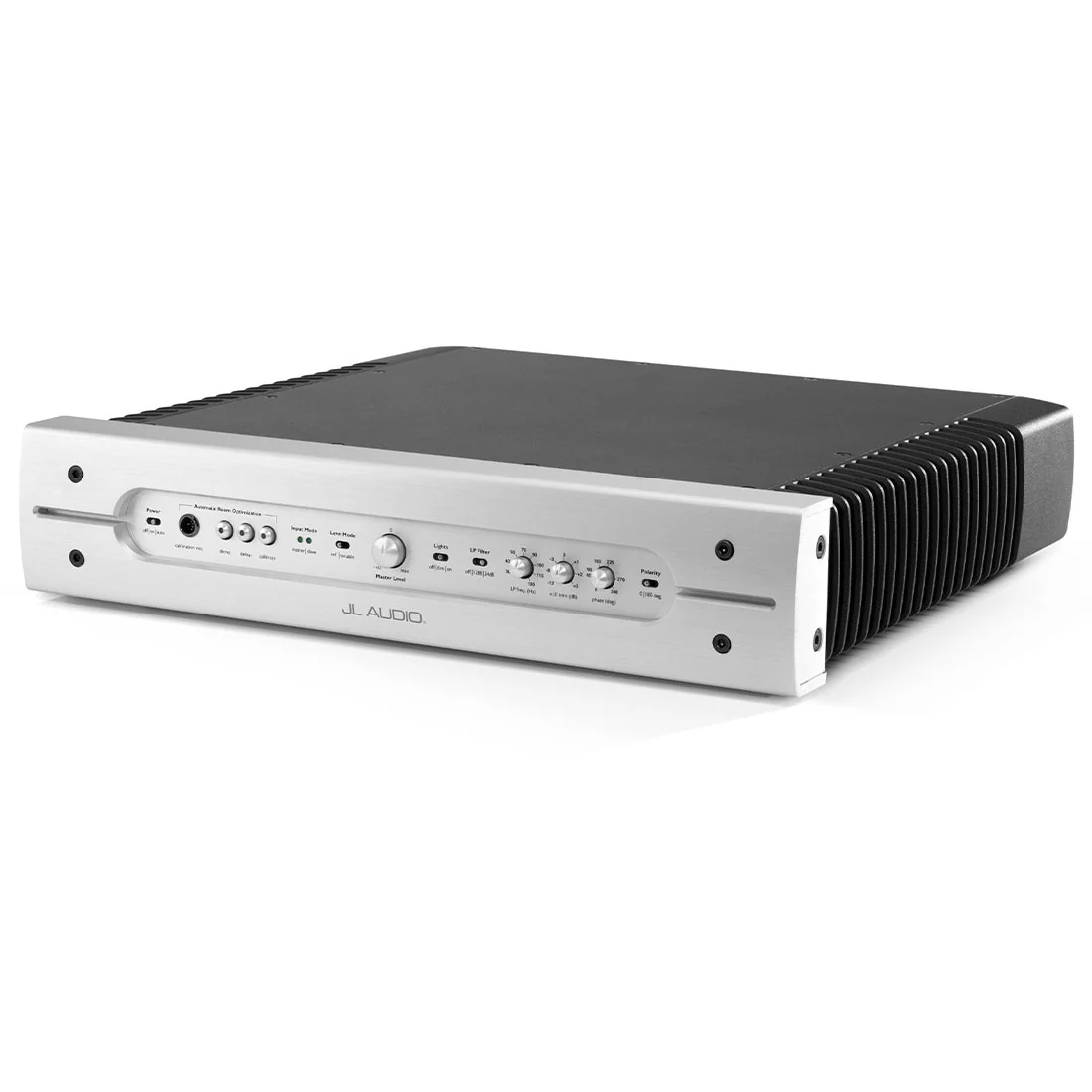

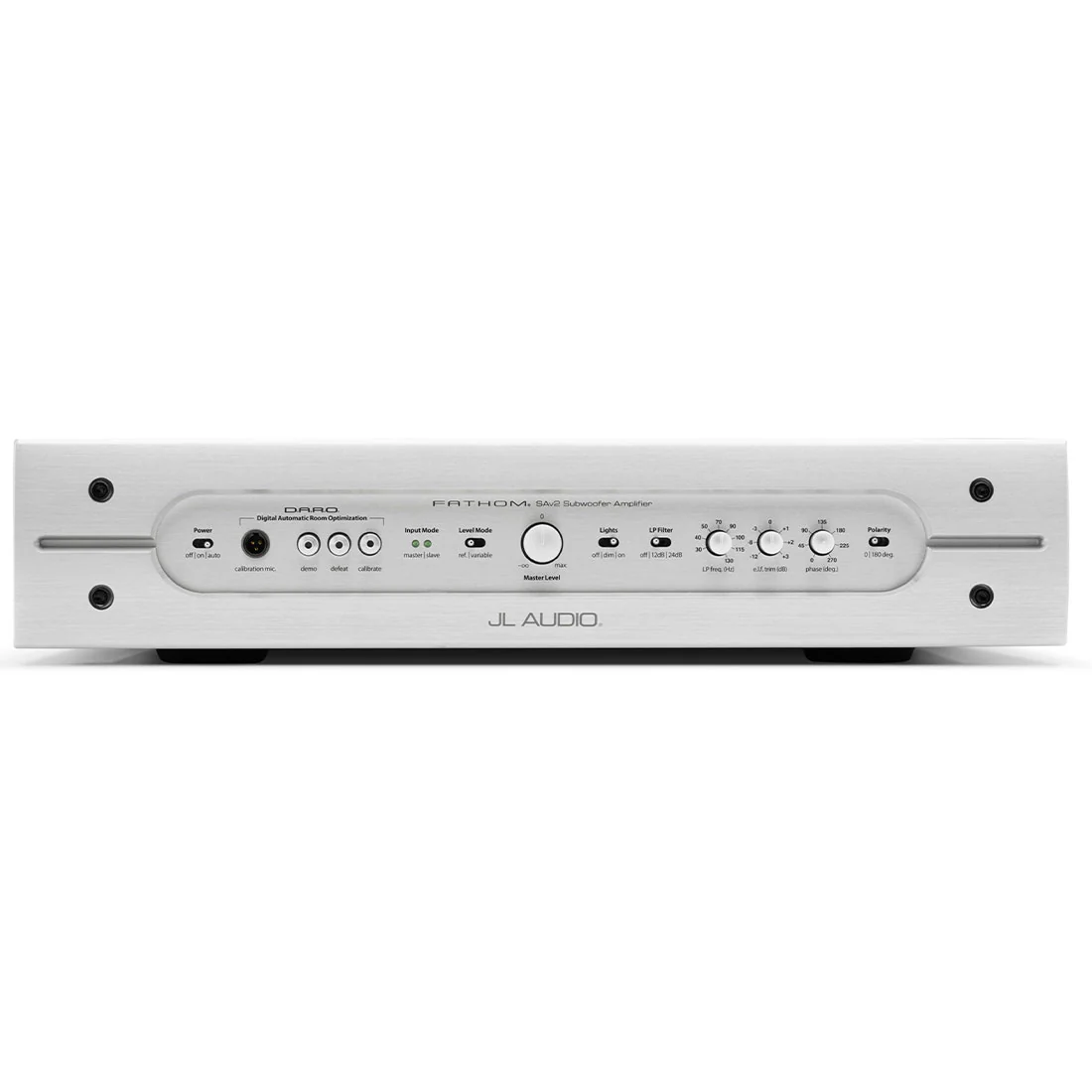

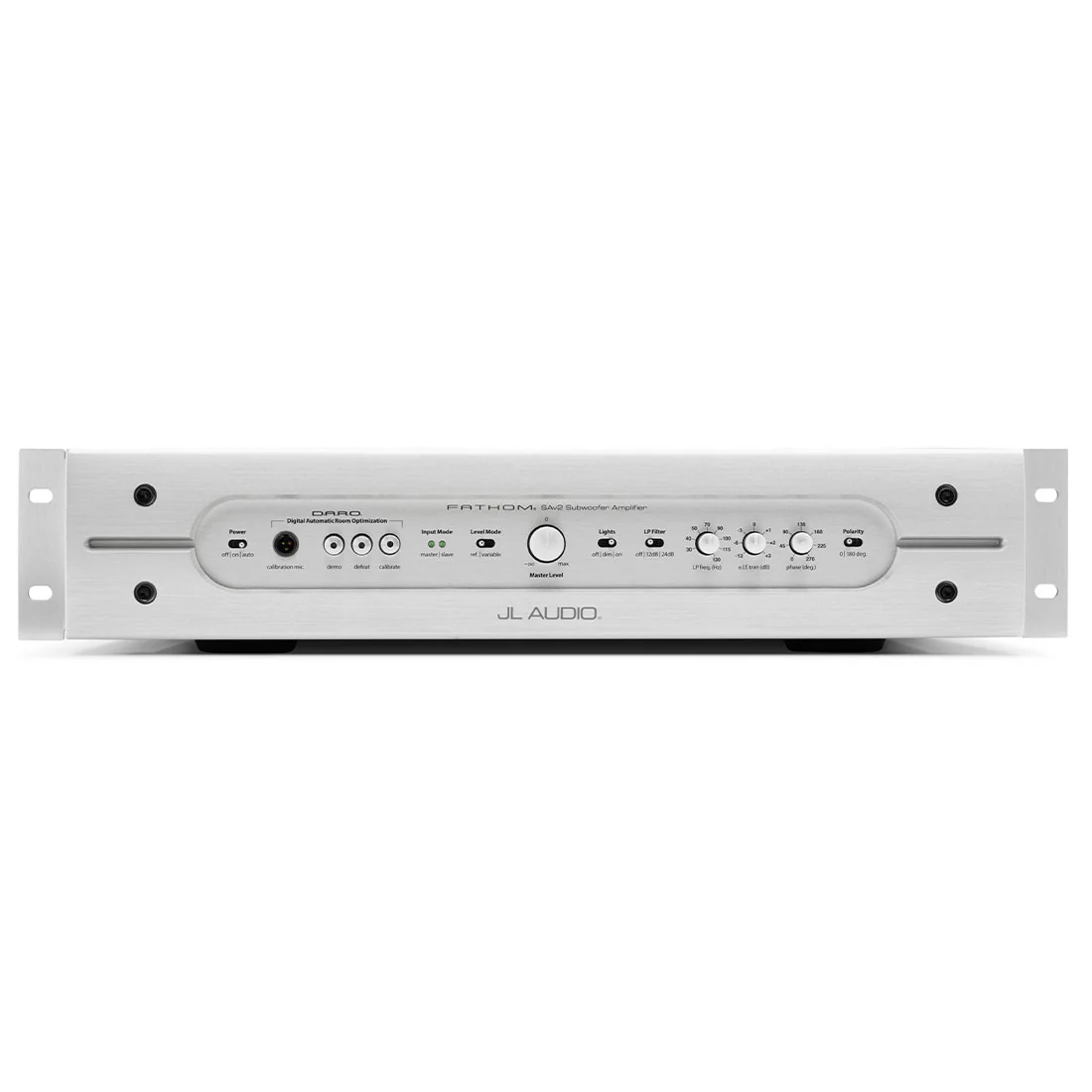

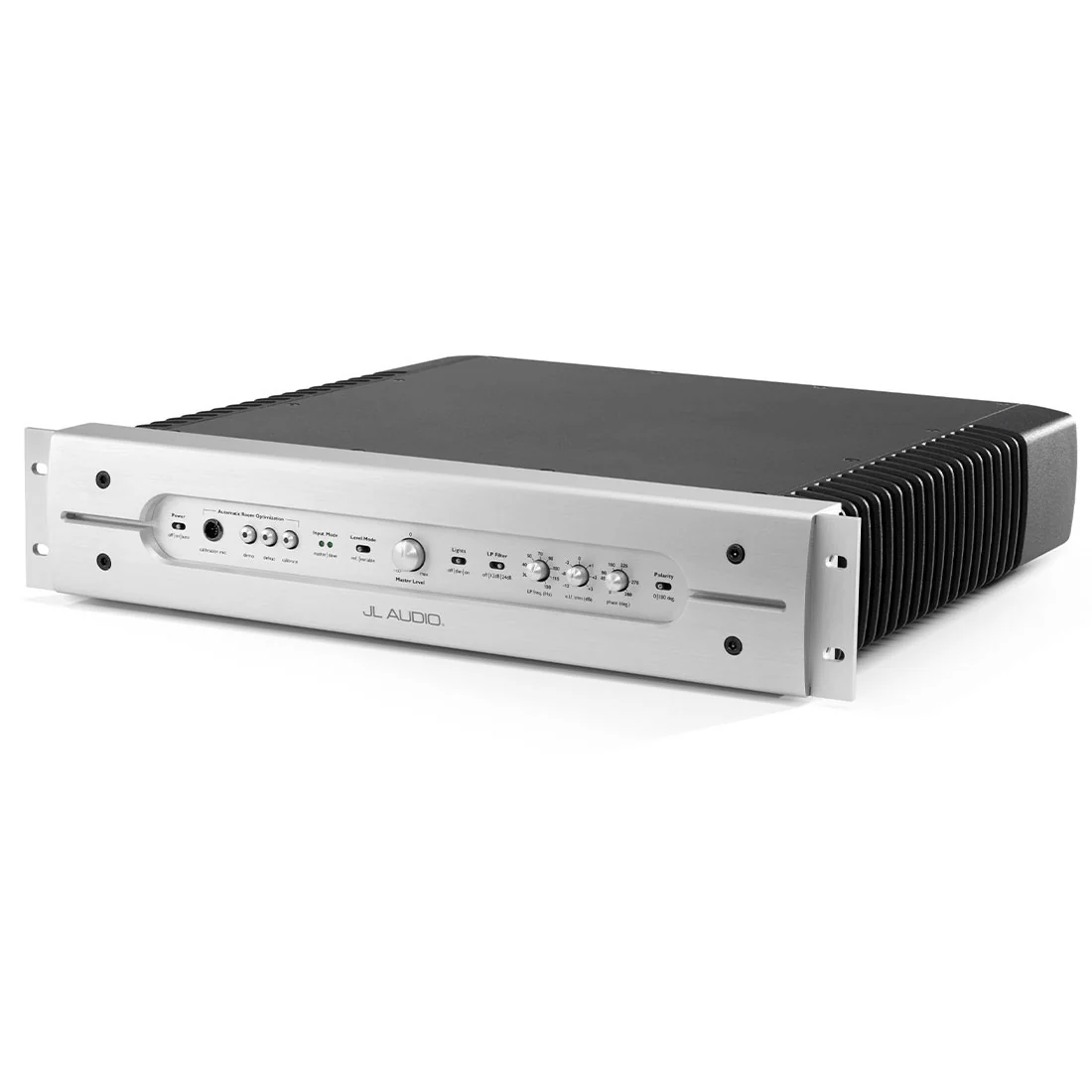

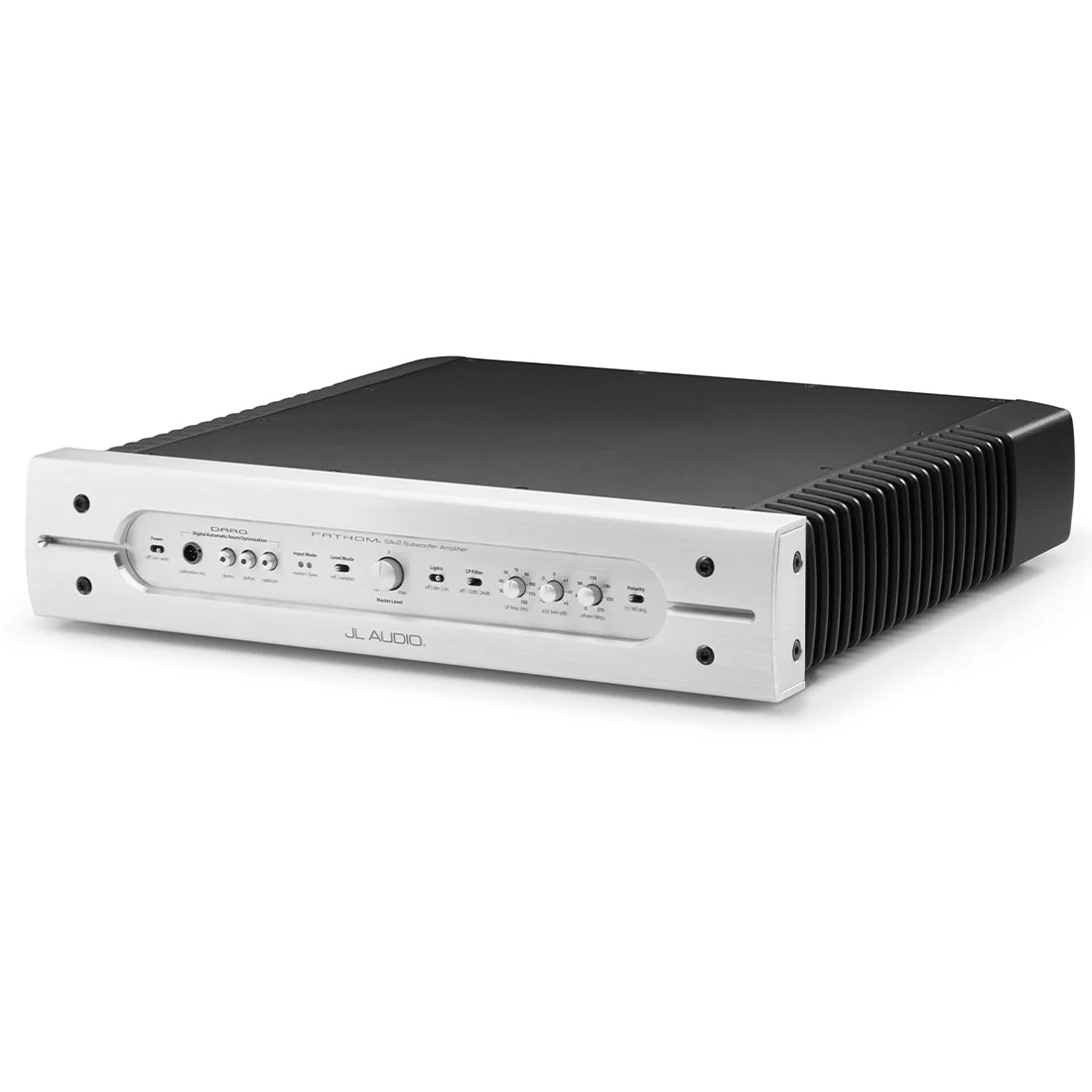

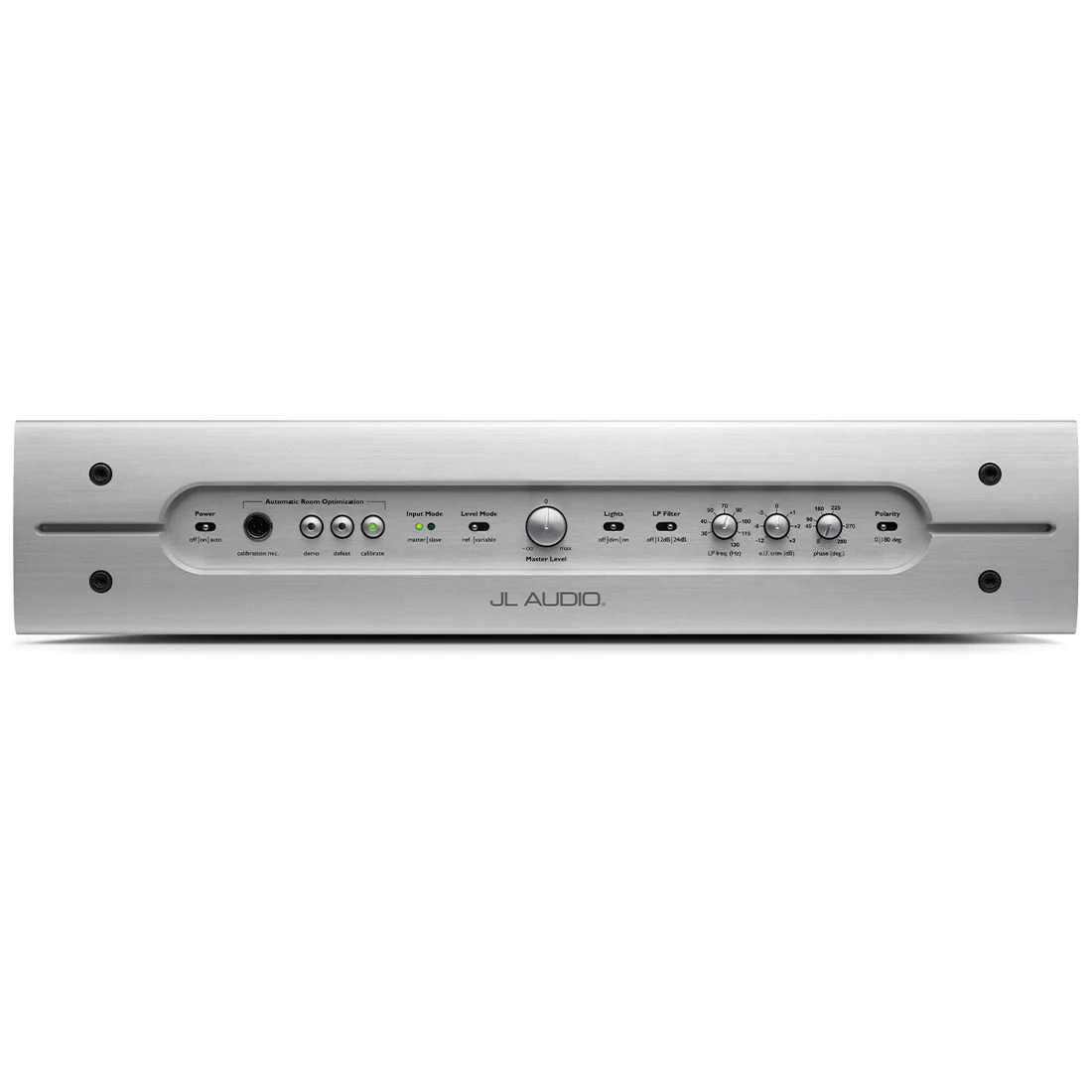

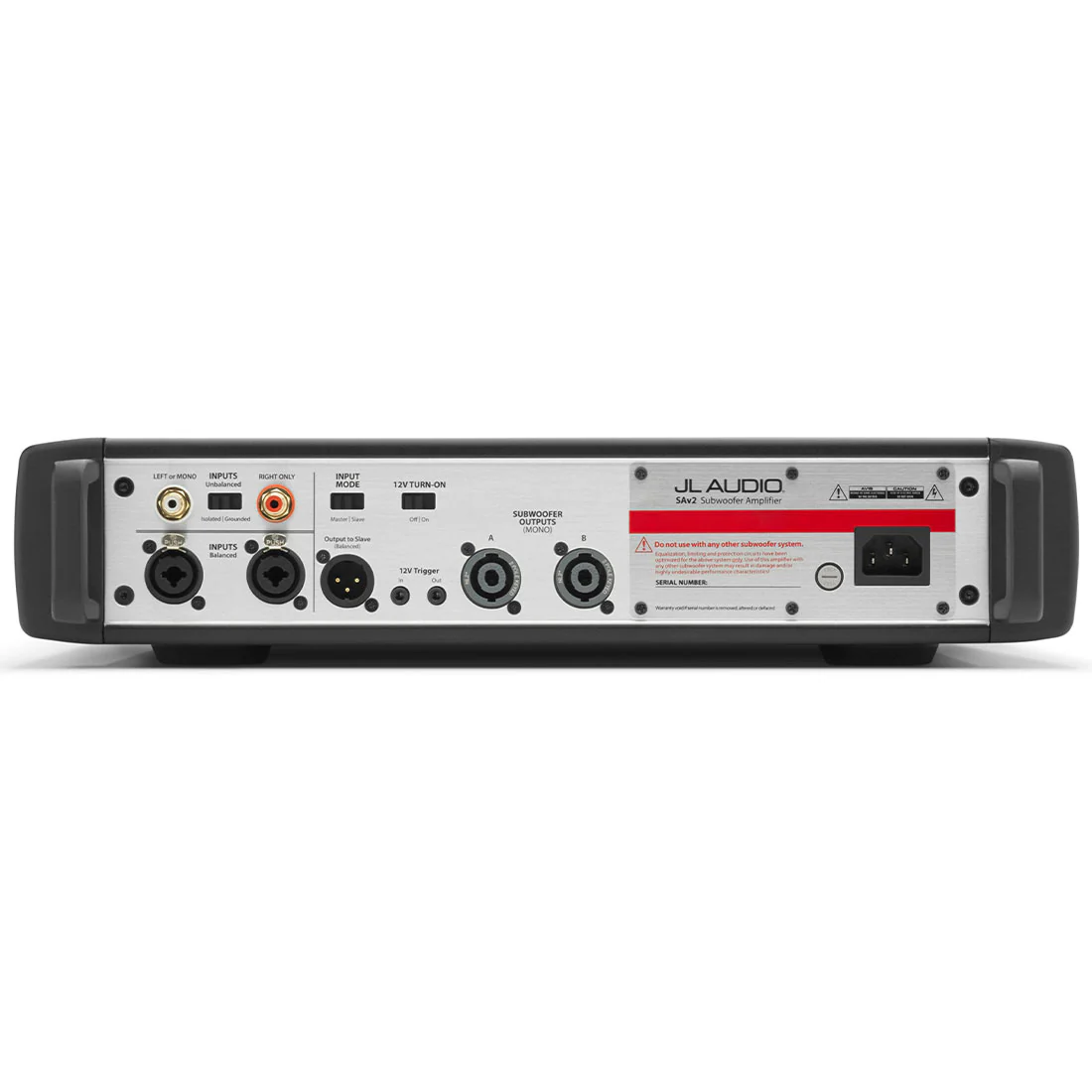

Amplifier Physical Specifications
| Width (W) | 17.4 in / 442 mm |
| Height (H) | 3.5 in / 89 mm |
| Depth (D) | 17.9 in / 455 mm |
| Net Weight | 35 lb / 15.9 kg |
| Note: Amplifier Height Dimensions do not include feet. | |

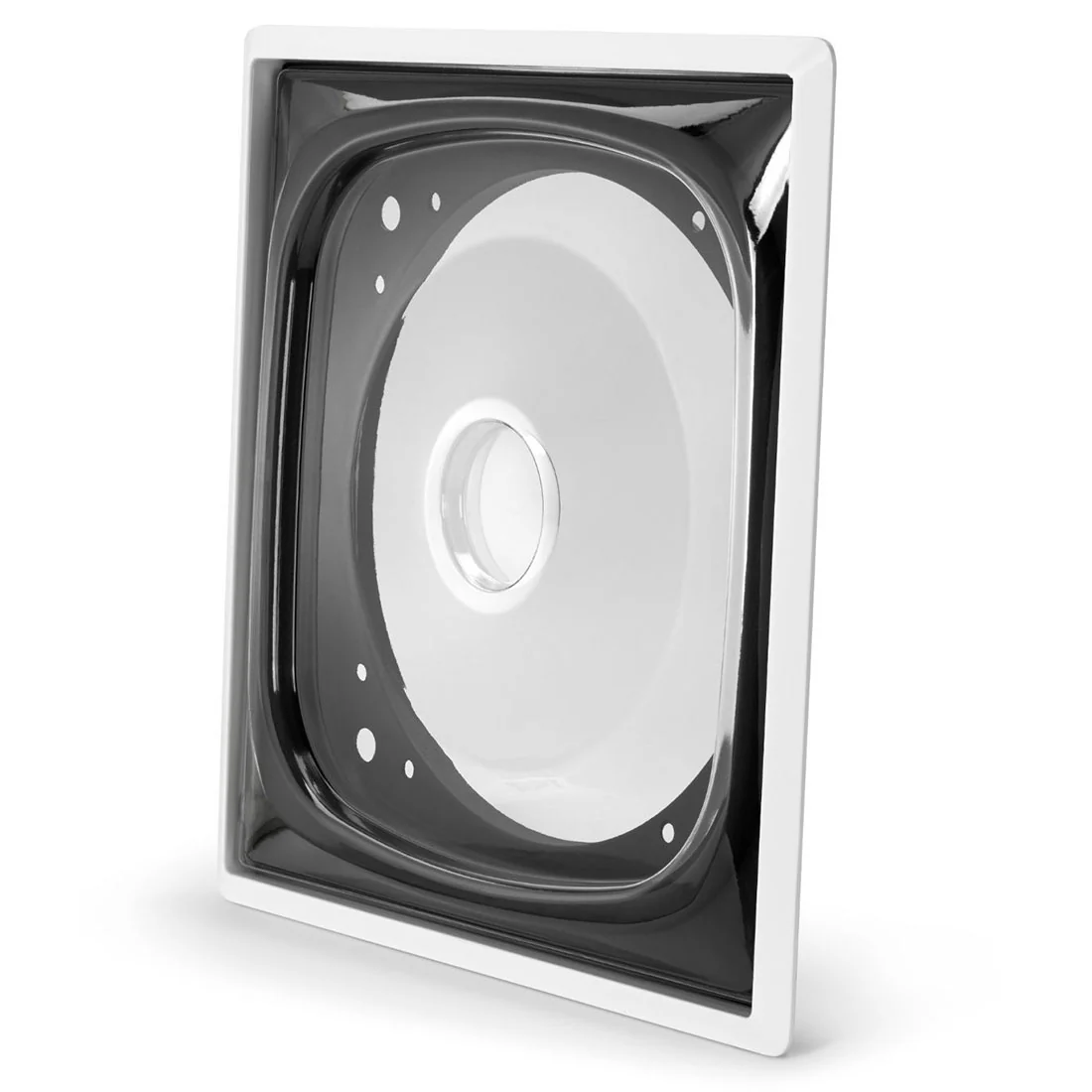

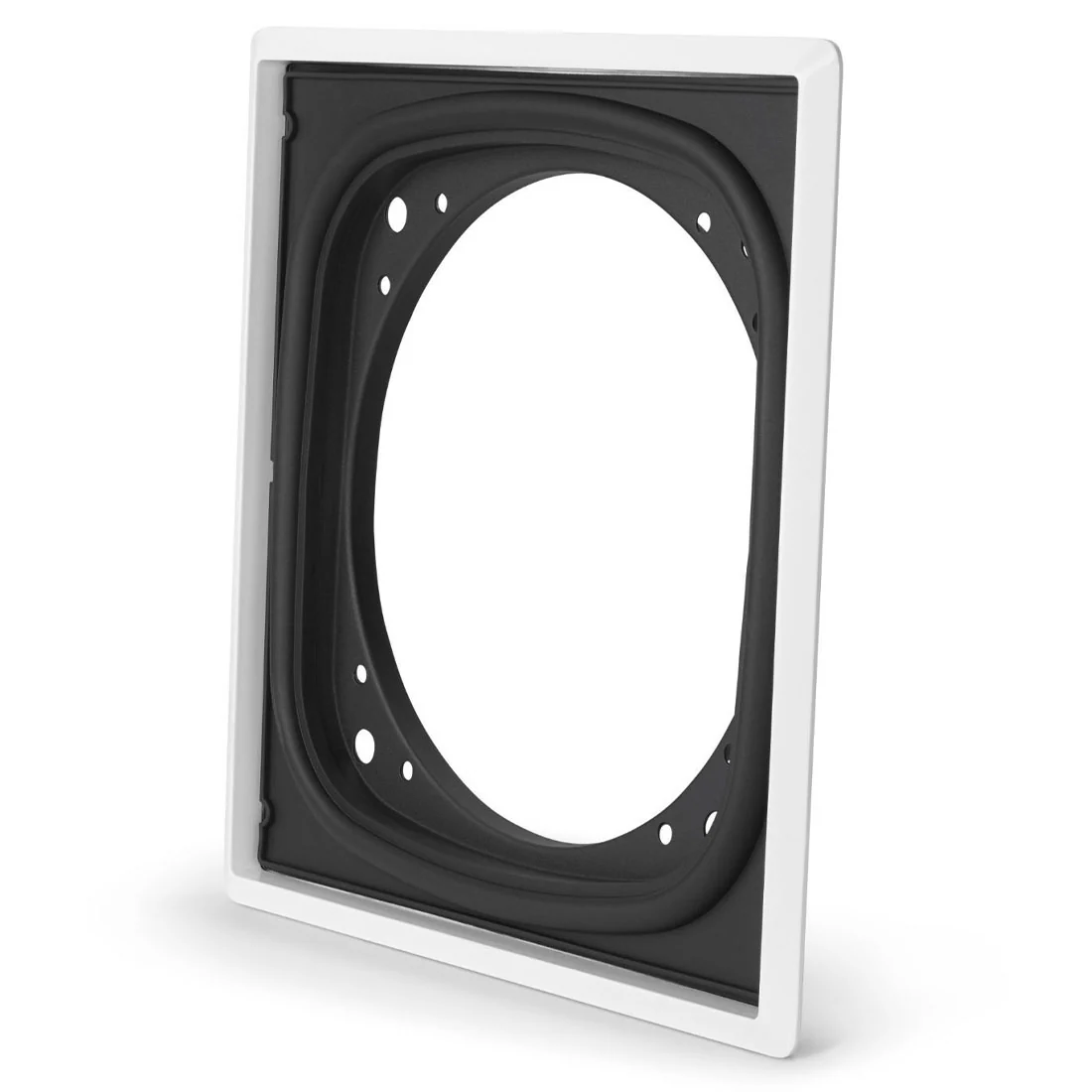

Grille Physical Specifications
| Grille Height (H) | 17.64 in / 448 mm |
| Grille Width (W) | 17.14 in / 435 mm |
| Wall Opening Height (H) | 16.50 in / 419 mm |
| Wall Opening Width (W) | 16.00 in / 406 mm |
Original: $7,670.18
-65%$7,670.18
$2,684.56Product Information
