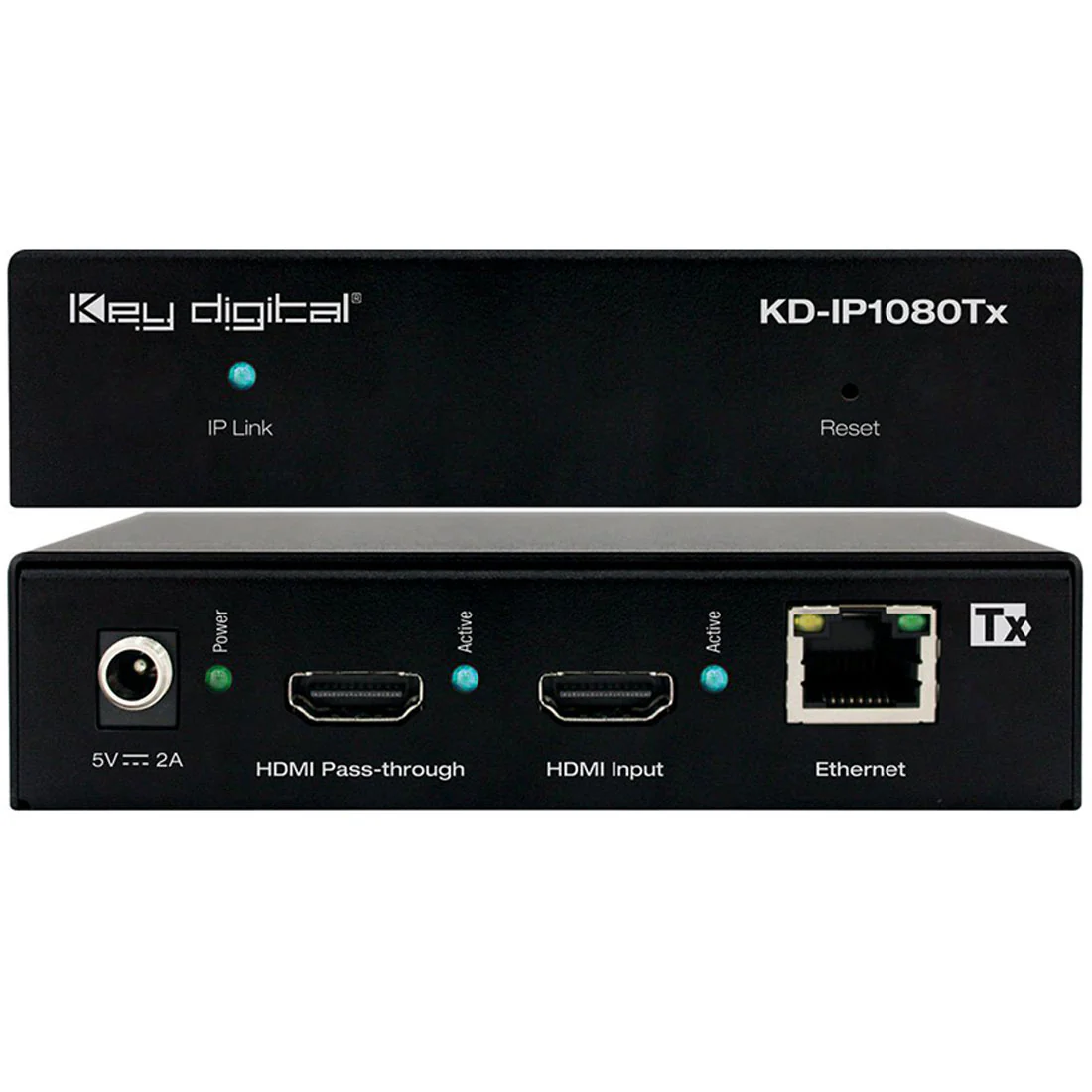

Key Digital KDIP1080TX HDMI over IP with POE (Tx) Transmitter with Redundant Power Connection, HDMI Pass-through (KDIP1080TX)

Key Digital KDIP1080TX HDMI over IP with POE (Tx) Transmitter with Redundant Power Connection, HDMI Pass-through

The KDIP1080TX is a pass-through HDMI over IP with POE (Tx) Transmitter and Redundant Power Connection

KDIP1080TX Features

• Possibility of point-to-point or network IP switch connection
• The KDIP1080TX is ideal standard for large-scale video distribution applications is H.264 compression
• Supports managed 100BaseT or Gigabit network switches for low-bandwidth systems

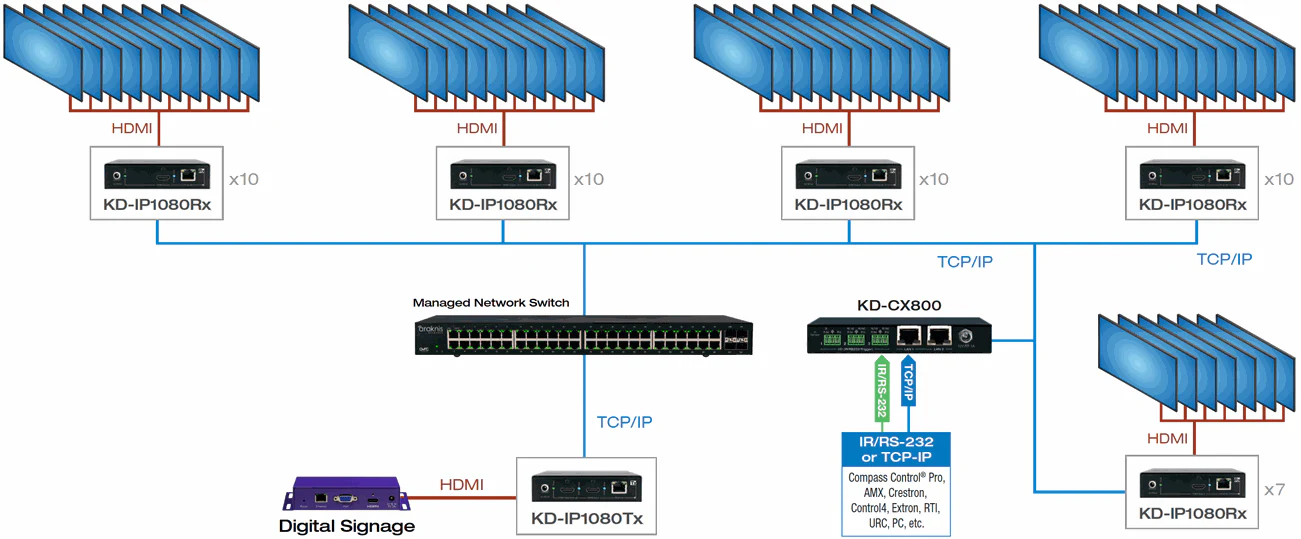

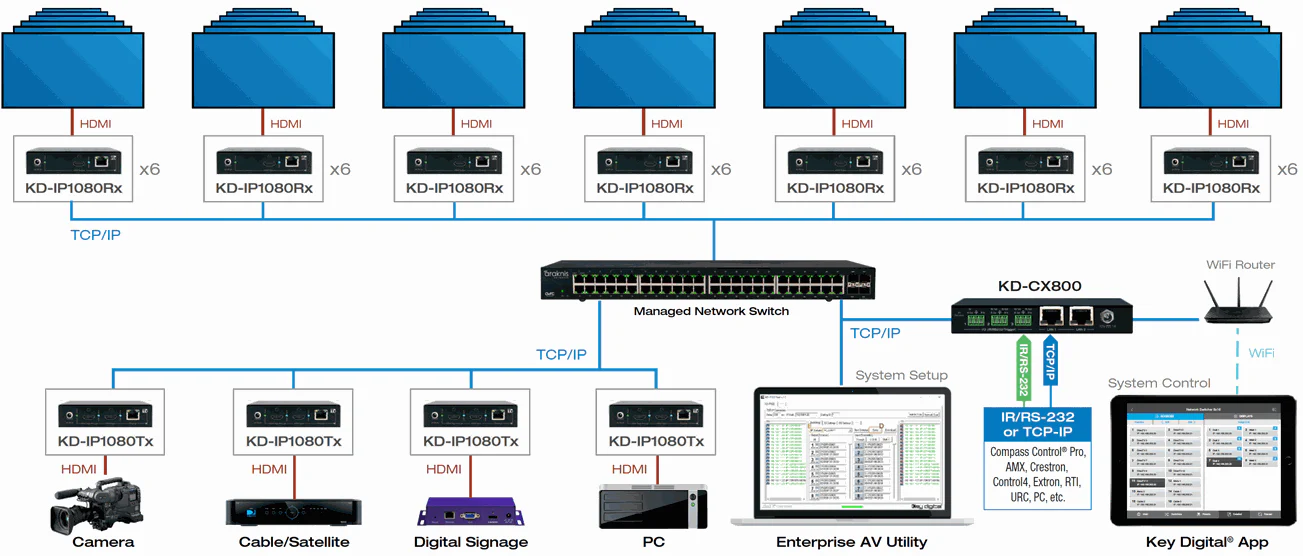

• Custom System: Extend HDMI over IP up to 1024 Tx units and an unlimited number of Rx units by adding Tx and Rx extenders to an existing system
• With a Smart Managed Switch that supports Power Over Ethernet, you may send power to the Tx and Rx units
• Tx equipment supports HDMI Pass-through so that audio or video can be extracted on the transmit side
• KDIP1080TX supports up to 1080p@60 (2.25Gbps) and is compatible with DVI1.0, HDMI, and HDCP1.x resolutions
• Audio Format: 2ch PCM @ 44.1/48kHz is supported
• Approximately 15 Mbps for the data stream
• Signal extension: utilizing CAT5e/6 UTP/ STP cable, up to 400 feet at 1080p@60 (2.25Gbps)
• KDIP1080TX supports Web Control Interface: Speeds up video setup and reduces installation time
• Full Buffer System: Controls EDID Control handshake, HDCP authentication to source & display, and TMDS re-clocking / signal re-generation
• EDID: EDID libraries are easily accessible and offer the appropriate configuration for each source
• Support for Deep Color: up to 12 bits/color
• KDIP1080TX has support for lengthy HDMI runs using Key Digital® HDMI cables with TMDS re-clocking
• Compatibility with all HDMI and HDCP technologies up to HDMI 1.4 and HDCP 1.4, fully licensed
• Key Digital® app support for control systems. Compass Control® Pro and Key Digital Management Software™ Pro (KDMSTM Pro) prepared. Completely controllable through open API by all IR, RS-232, and TCP/IP capable control systems
• Source/Display Control: Connect 3 IR, RS-232, or trigger ports with the KD-CX800
• Ready for Key Digital App
• KDIP1080TX is ready for Key Digital® App: can be managed using the Key Digital® App over TCP/IP
• Control One KD-CX800 or KD-MC1000 is advised to serve as a gateway and boost dependability from KD-App control for app stabilization
• Alternative Extension Methods: Enabled by low-bandwidth data streaming technology - Wifi Extender: Up to 100 ft., IP over Coaxial: Up to 1000 ft.
