Panamax SEP-200 Service Entrance Protection (SEP200)

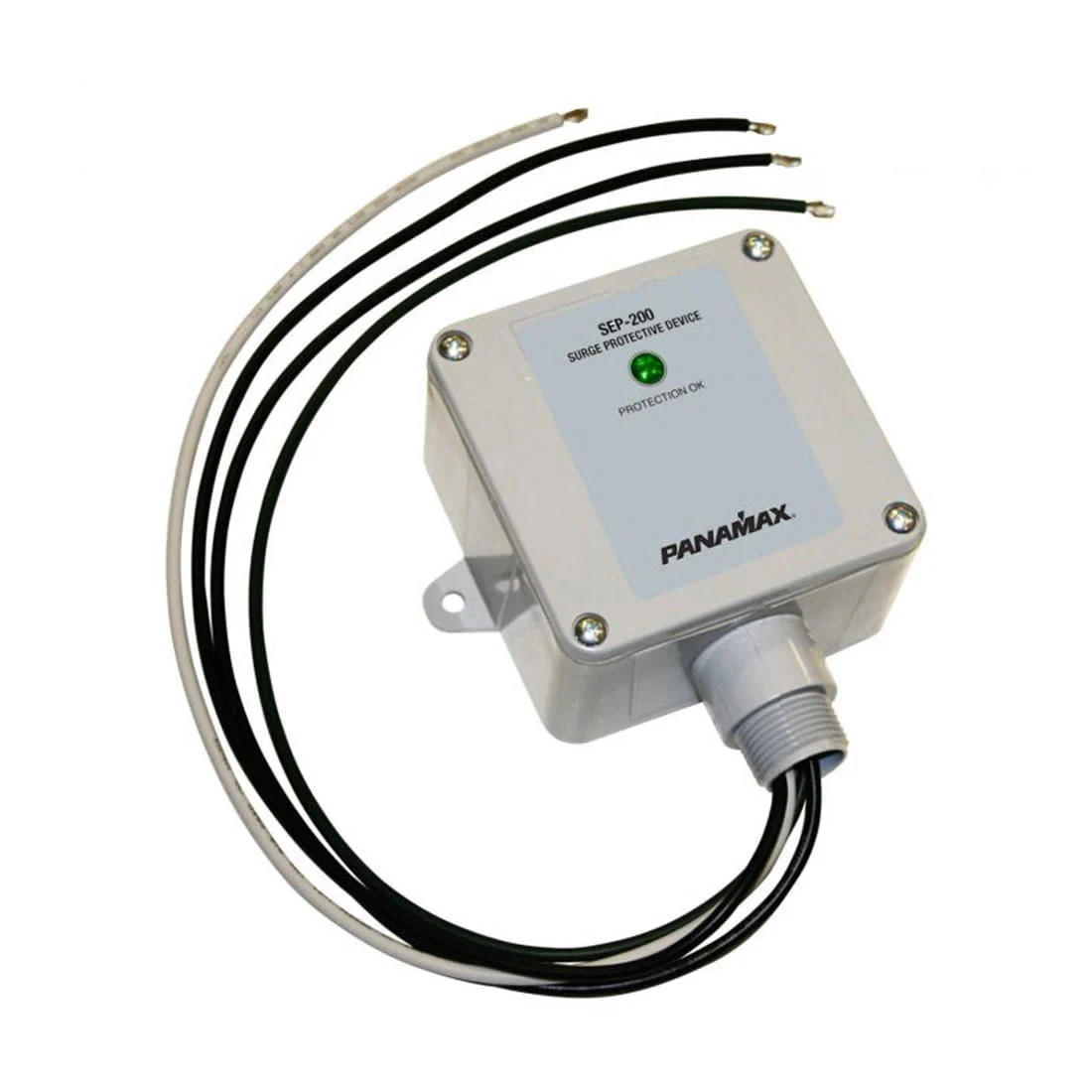

Panamax SEP-200 Service Entrance Protection

Electrical surges that could harm large appliances, particularly their delicate electronic circuitry are prevented by the SEP-200. High voltage surges, which are produced by adverse weather conditions, external power issues, or routine electrical component switching, can result in catastrophic failures and slow component degradation. Additionally, Panamax advises placing secondary plug-in protectors at the equipment you want to keep safe.

SEP-200 Features

• Rated for 400 Amp split/single phase panels
• Ground and three (3) wires
• Meets the requirements of ANSI C62.41
• Voltage Protection Rating, UL 1449, Third Edition, 700V L-N / 800V N-G
• Either install inside or outside

SEP-200 Specifications

• Power System (Service Entrance Only): 120/240 1 Phase, 50/60 Hz
• Operating Temperature: -40 to +176 degrees F
• Maximum Surge Capacity (8×20 usec): 60kA (each wire)
• Maximum Continuous Operating Voltage: 130V
• Interrupt Rating: 20,000 Amps
• Flame Resistant Design: Yes
• Energy Dissipation Rating: 2700 Joules
• Diagnostics: Yes
