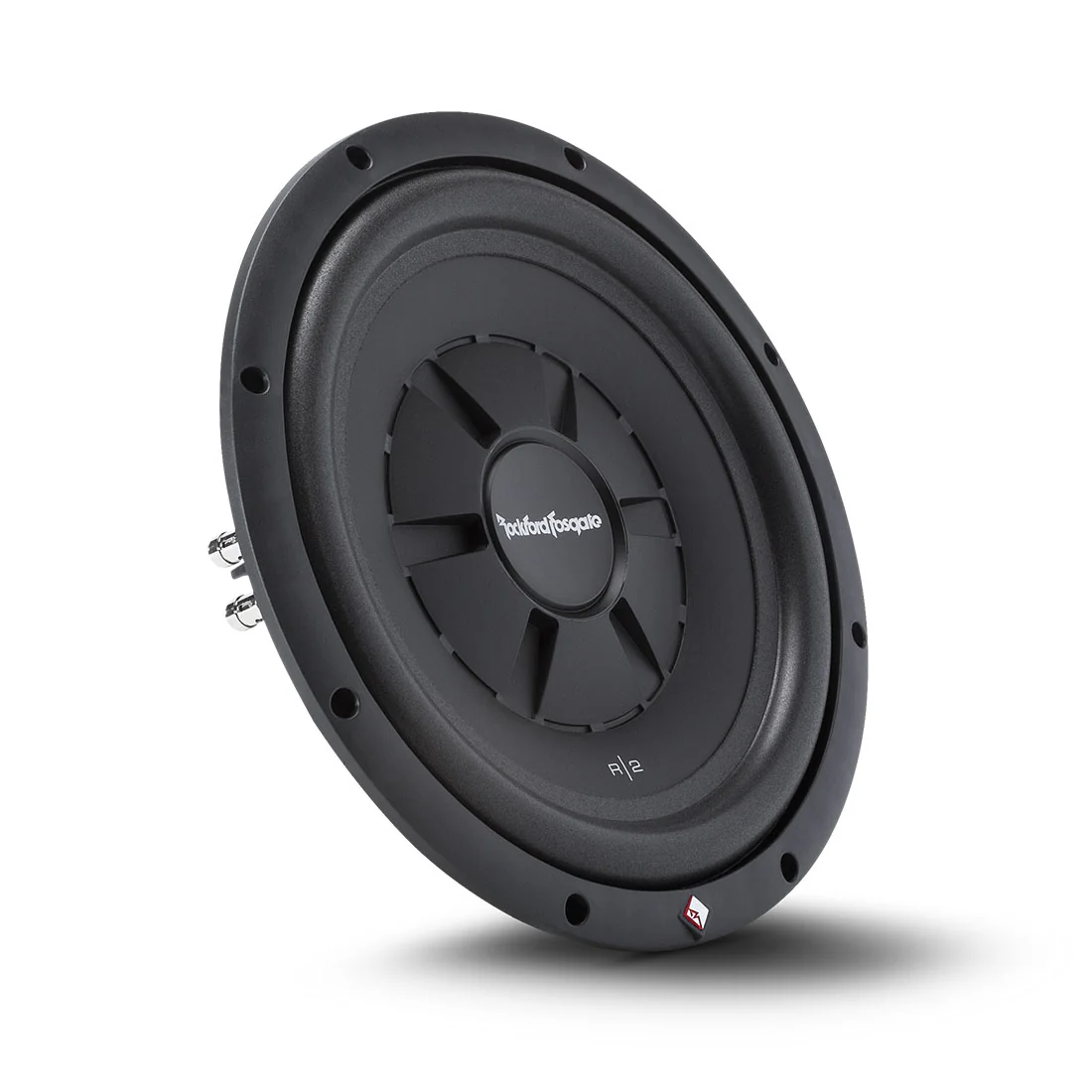

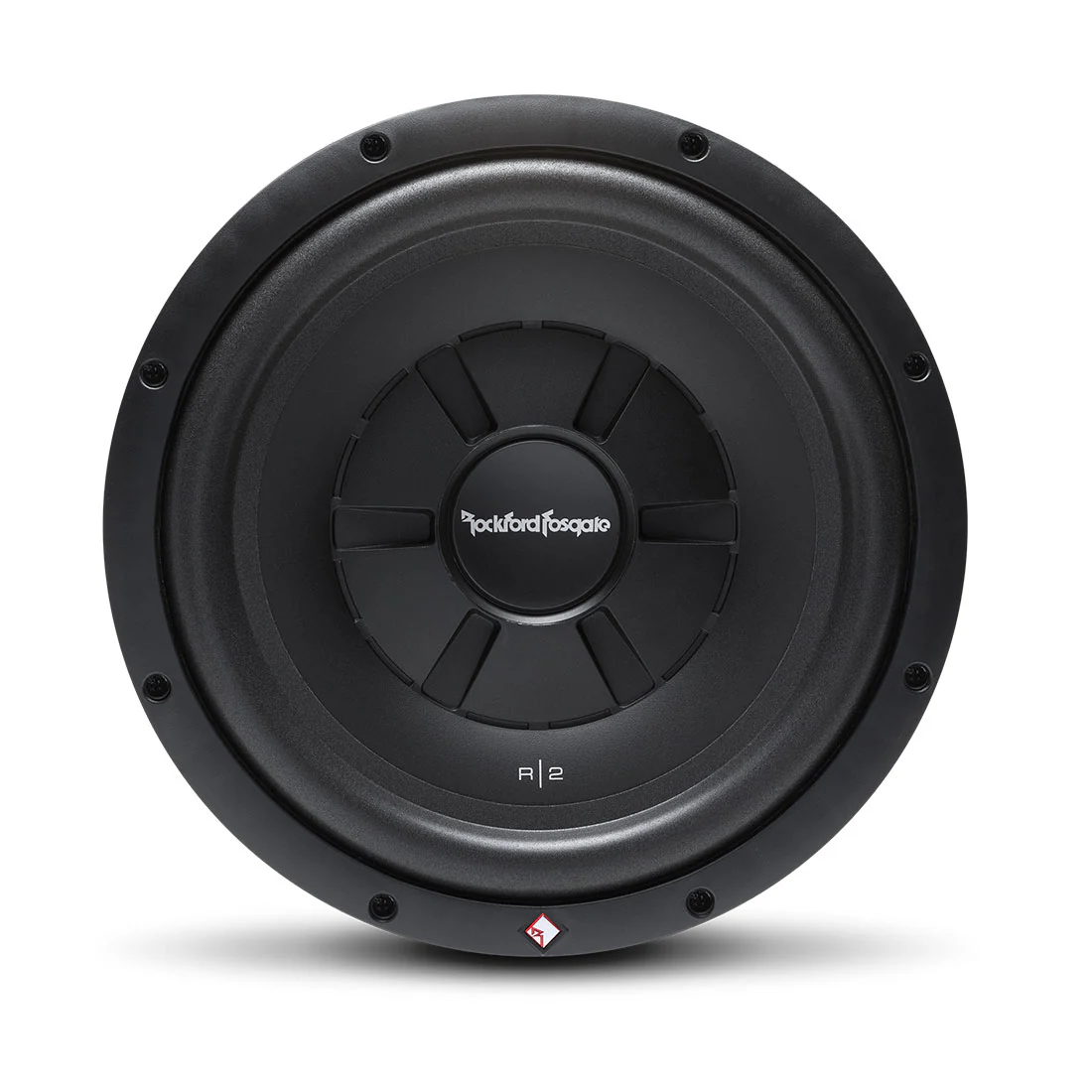

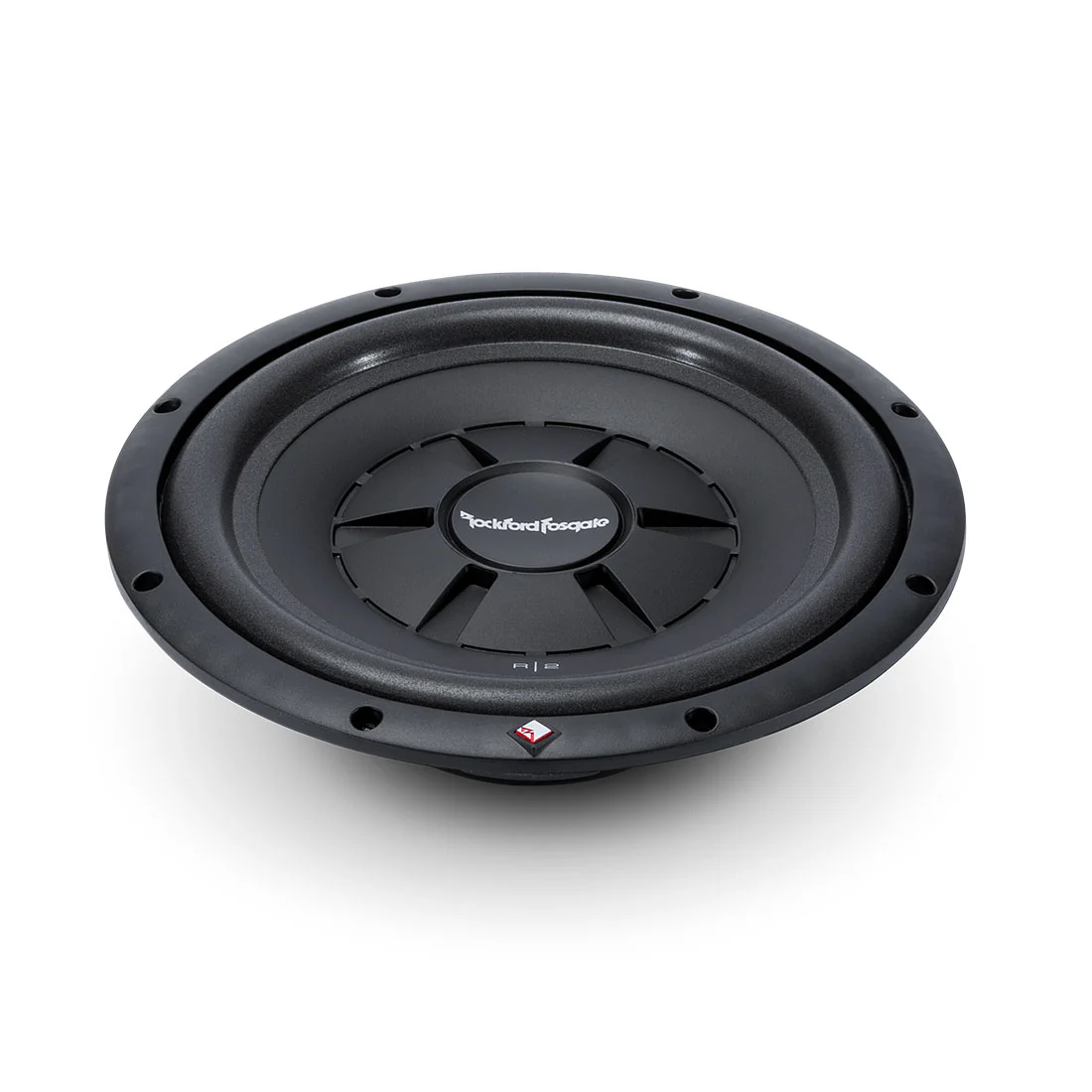

Rockford Fosgate R2SD4-12 Prime 12" 4-Ohm DVC Shallow Subwoofer (R2SD412)
Rockford Fosgate R2SD4-12 Prime 12" 4-Ohm DVC Shallow Subwoofer
Even in compact automobiles with limited room, Rockford Fosgate R2SD4-12 shallow-mount subs produce excellent bass. These low-profile subs may work in incredibly compact enclosures thanks to a distinctive elevated motor arrangement that can handle considerable power.
The R2SD4-12 sub features a 12" mica-injected polypropylene cone that works with a high-density poly-foam surround to punch out fat, deep notes. This shallow-mount workhorse will handle up to 250 watts RMS, with a mounting depth of only 3-5/8". Rockford Fosgate stitches the tinsel leads that carry the signal to the voice coils directly into the cone, so they'll hang tough through heavy use. The stamped solid-steel frame offers the same venting found in standard-mount Rockford Fosgate subs to keep this sub running cool.
Dual 4-ohm voice coils allow you to wire this sub for 2- or 8-ohm impedance, giving you more flexibility in setting up your system. Rockford Fosgate optimizes this Prime sub for both sealed and ported enclosures so you can choose the type of bass you want in your ride.
Shallow Mount Design

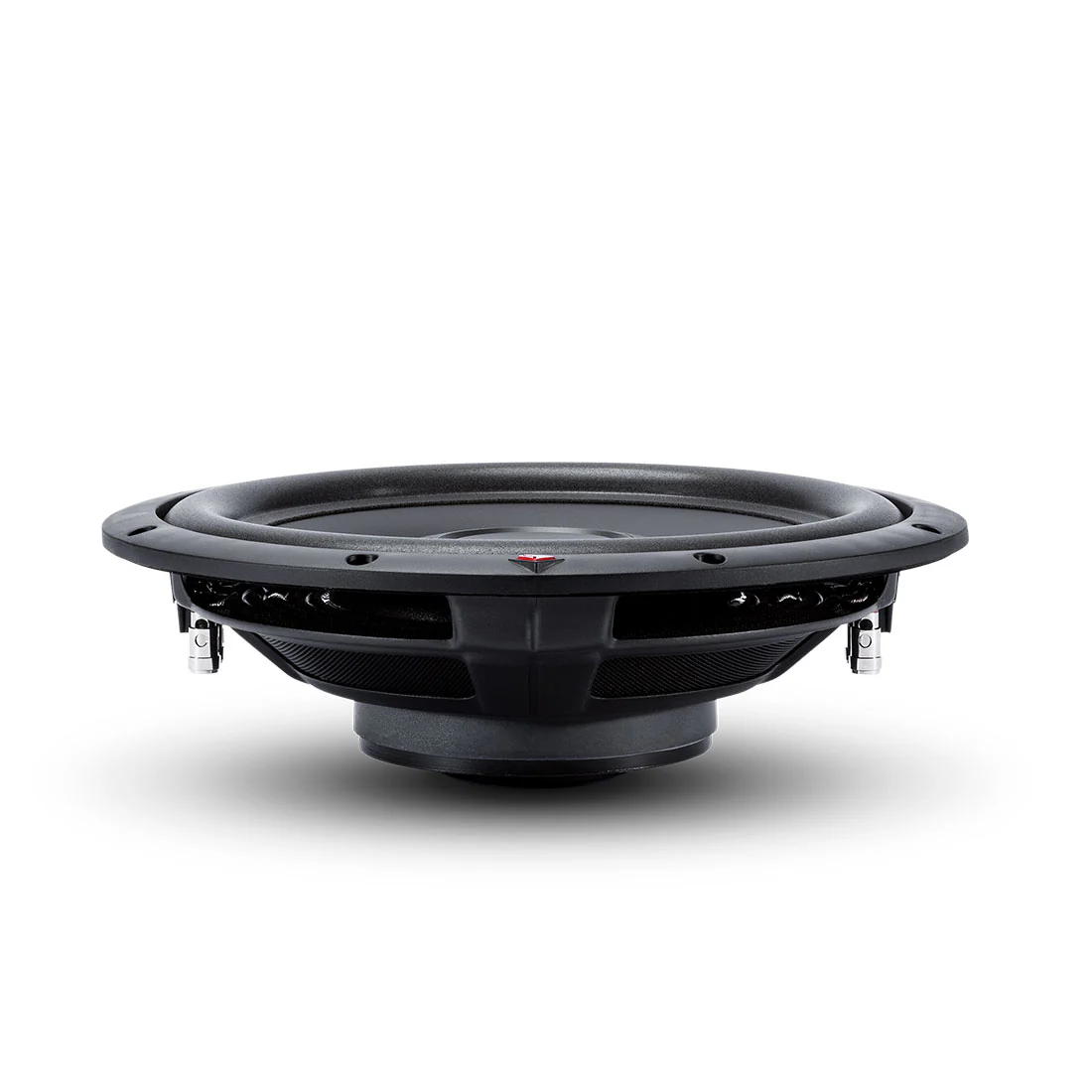

The Rockford Fosgate R2SD4-12 Shallow Subwoofer is designed and engineered with a much smaller motor assembly which reduces the overall depth of the woofer allowing it to fit in shallower enclosures and tighter locations of your vehicle.Dual 4-ohm Voice Coils

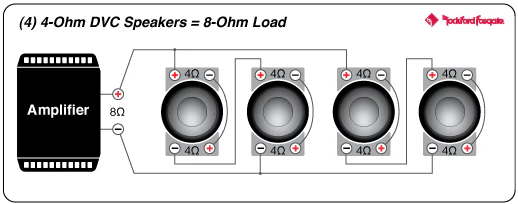

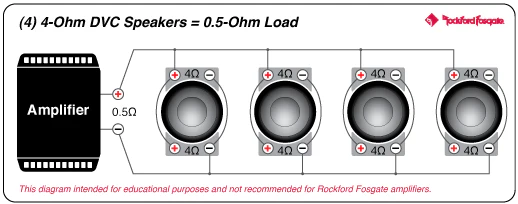

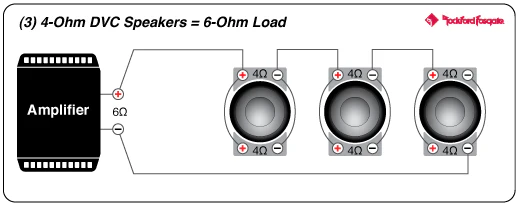

This woofer features dual 4-ohm voice coils to offer wiring flexibility. When the voice coils are wired in parallel the woofer presents a 2-ohm mono load, when wired in series it presents an 8-ohm mono load.Spring Post Assembly

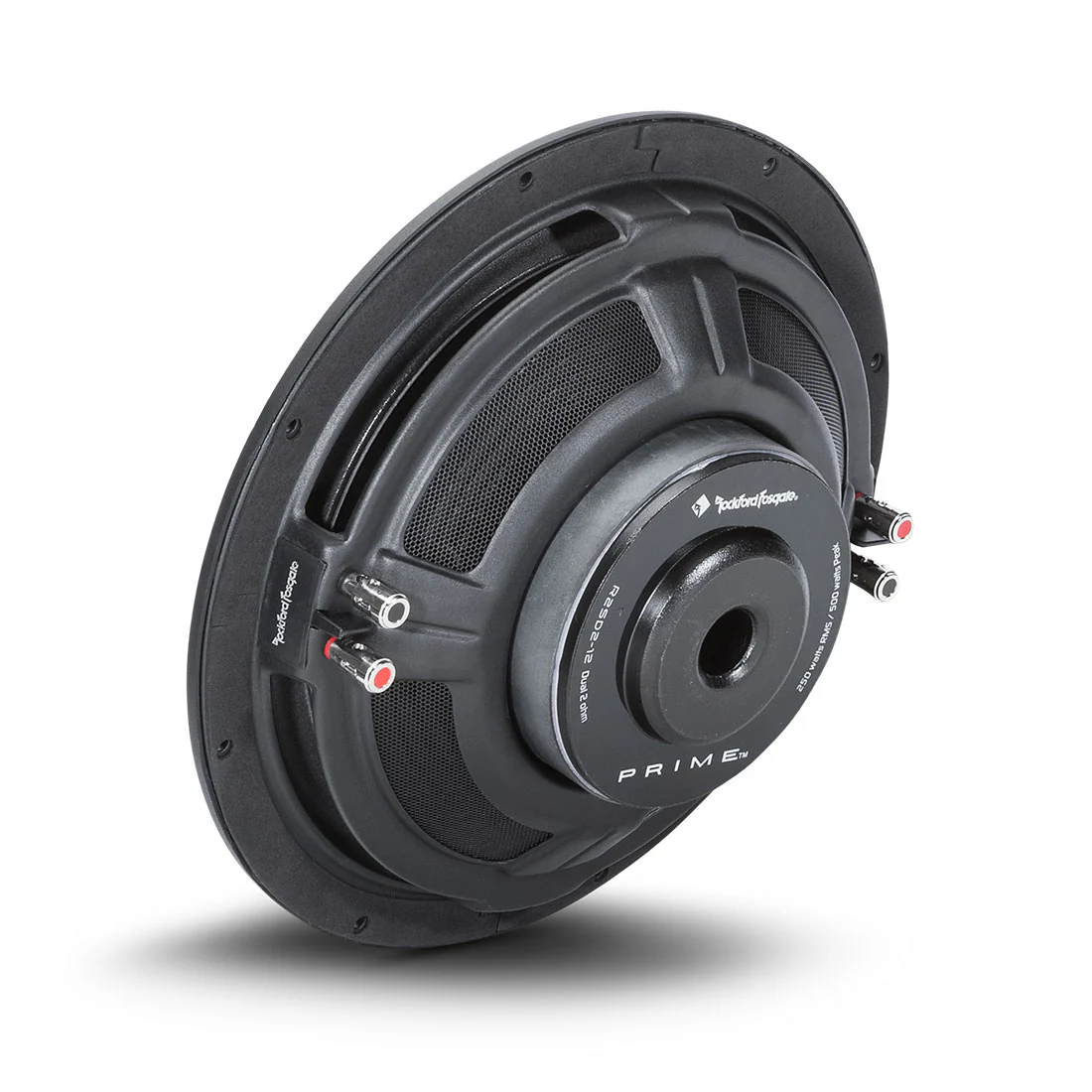

The woofer features compression input terminals with attached 16-gauge stitched tinsel lead wires. The nickel-plated spring posts will accept pin connectors, single banana plugs, and bare wire up to 12 gauge.Sealed Box Volume
Rockford Fosgate recommends a sealed enclosure with an optimum internal volume of 0.9 cubic feet (from 0.75 to 1.25 cubic feet is acceptable). Sealed enclosures provide the most control over a woofer, will handle a lot of power, and provide accurate sonic reproduction, making them suitable for all types of music.Vented Box Volume
Rockford Fosgate recommends a vented enclosure with an internal volume of 1.79 cubic feet using a 4" diameter x 11.8" long port tube; this yields a tuning frequency of 40 Hz. Ported (or vented) enclosures typically provide better overall efficiency than sealed so they are suitable for use with smaller amplifiers, giving you more bass output from less power. However, this efficiency comes at the expense of very low-frequency output (below 35 Hz).Please consult your amplifier owner's manual for the lowest recommended impedance for the Rockford Fosgate R2SD4-12
