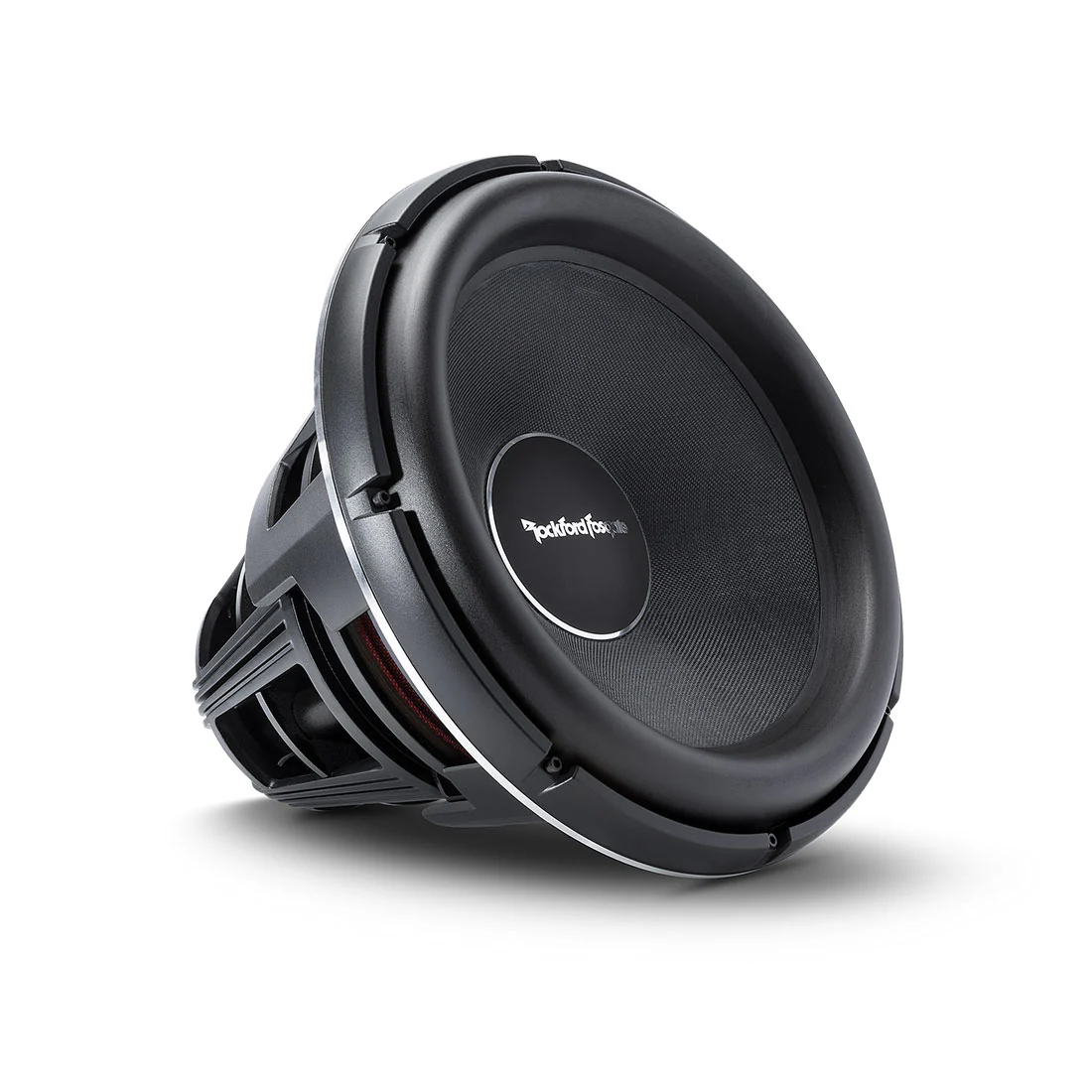

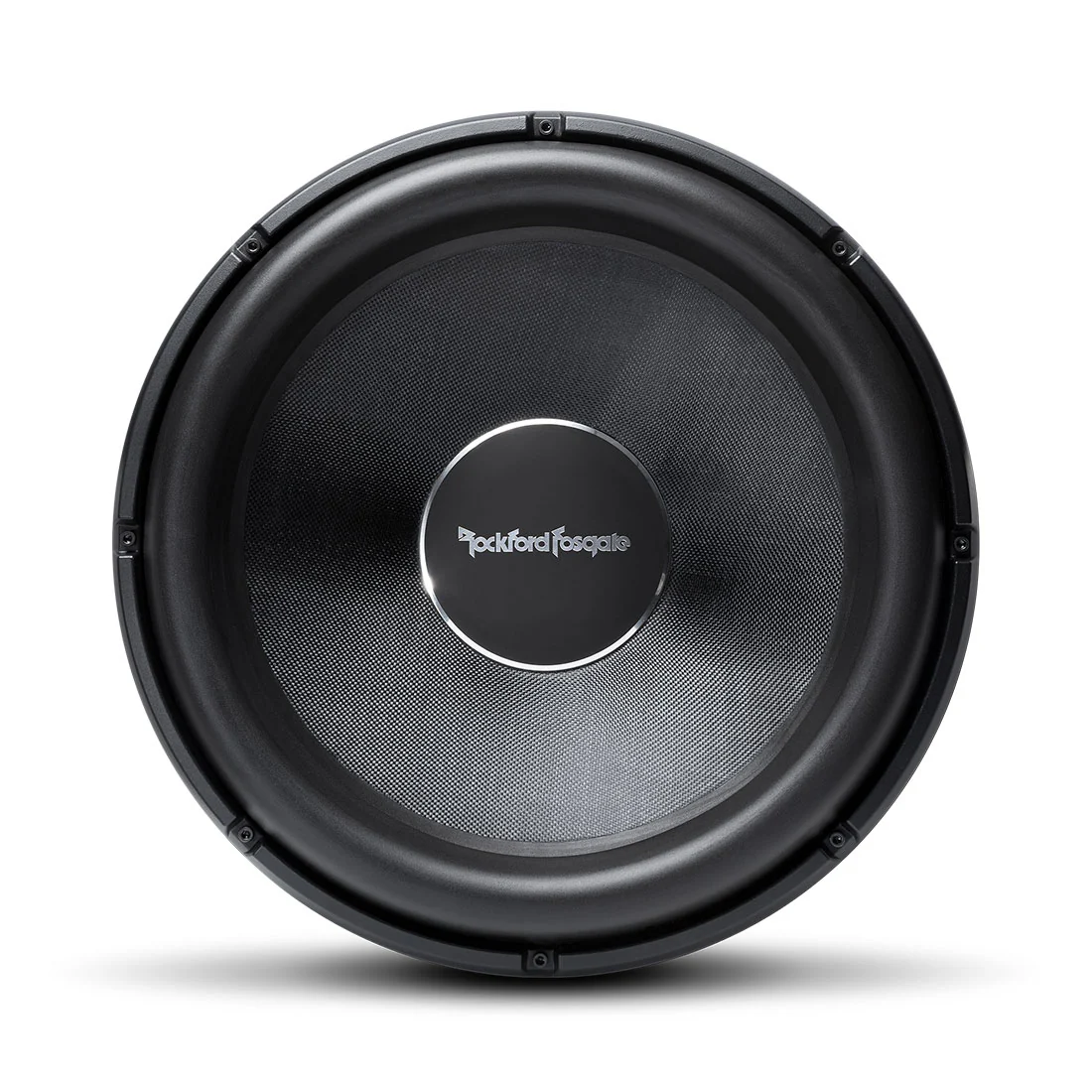

Rockford Fosgate T3S1-19 Power 19" T3 Single 1-Ohm Superwoofer (T3S119)

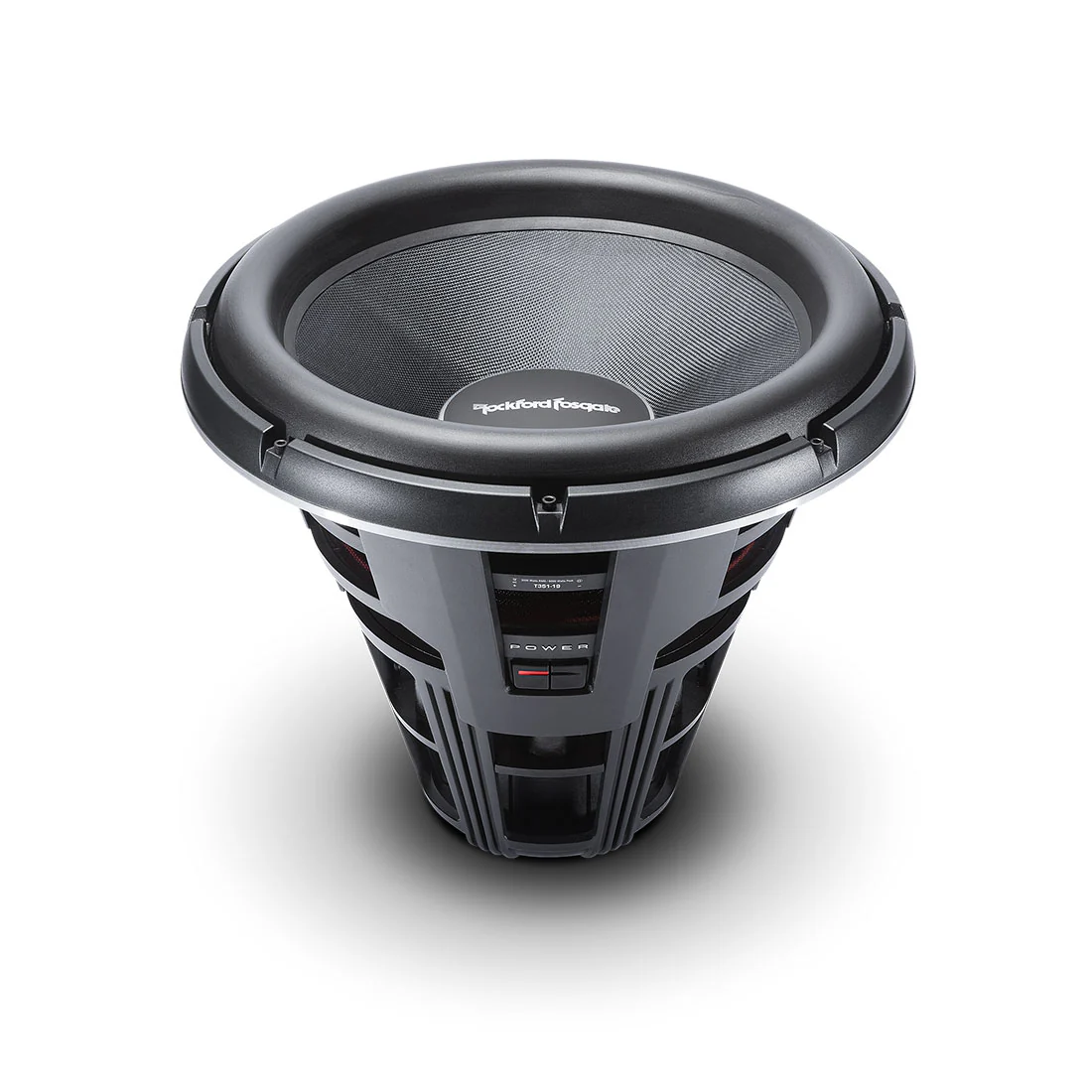

Rockford Fosgate T3S1-19 Power 19" T3 Single 1-Ohm Superwoofer

The Power T3S1-19 superwoofer features a single 1-Ohm voice coil for easy wiring and a 19-inch effective radiating cone area for deep bass. This is Rockford Fosgate's largest and most powerful loudspeaker to date!

Because of its massive 19-inch effective radiating cone area, the Power T3S1-19 is properly classified as a super woofer! That's right, no stinkin' 18" subs are required... this is for true Car Audio Fans who want to go BIG like Mannie Fresh. In a Real Big ride, we talk about Real Big bass and power handling.

The Power T3 19" subwoofer features never-before-seen technologies in car audio, such as the Injection Molded Foam Surround, which makes the foam strong and durable like rubberized material. The Edge Wound voice coil allows the windings to be very close together with no air gaps, resulting in a cool voice coil that can handle a lot of power. We also designed a high-efficiency "Push/Pull" voice coil with a massive Neodymium magnet for a high-performance motor assembly.

T3S1-19 Features:

• Three layer glass fiber/Aramid honeycomb/Glass fiber cone
• Aluminum dust cap
• Injection molded foam surround with VAST™
• Dual Nomex progressive spiders with integrated lead wires
• Proprietary surround mechanical clamping ring
• Custom push spring insulated 4 AWG terminals

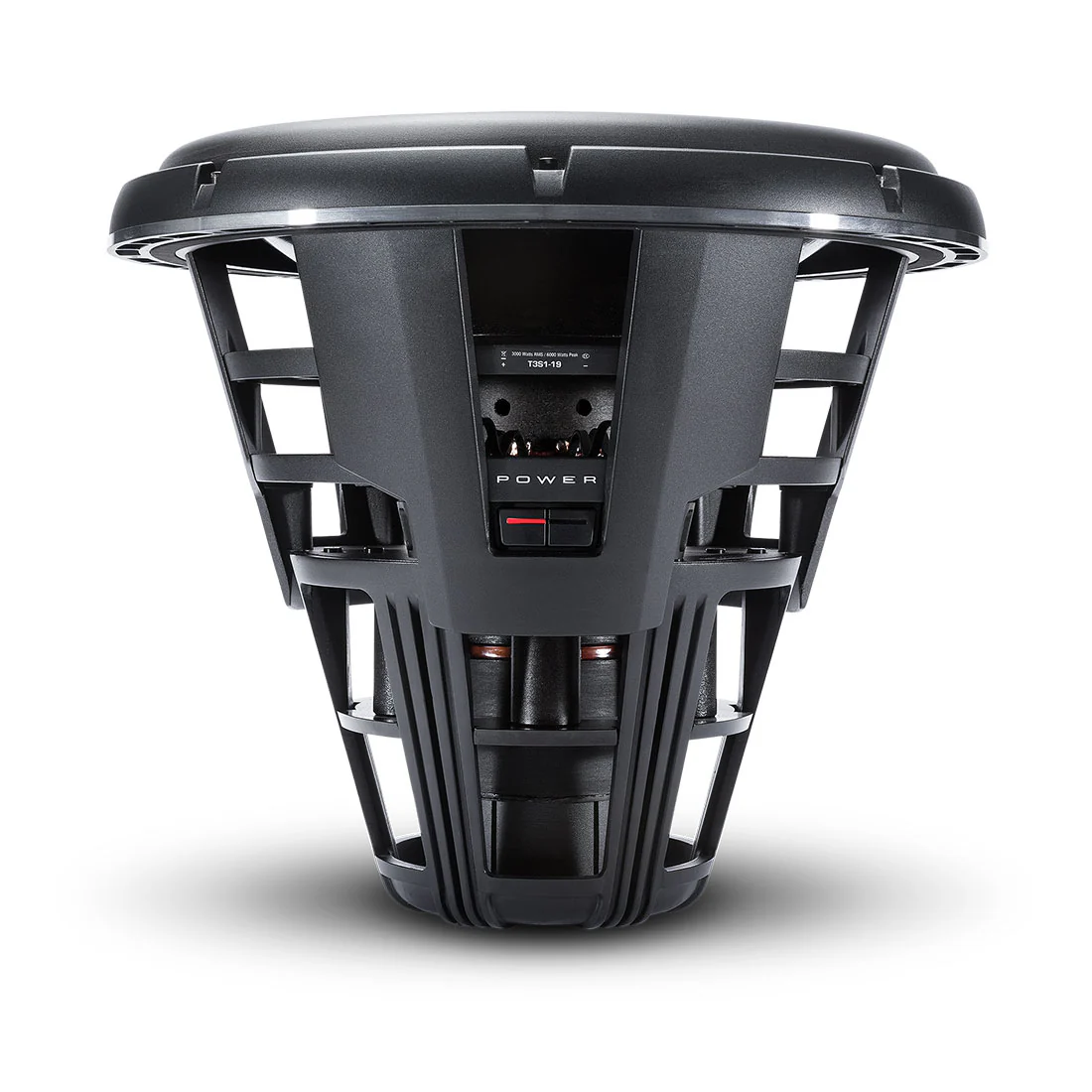

• Aluminum diecast frame with integrated heat sink fins and venting
• Since voice coil design with dual (push/pull) windings
• Single layer edge wound aluminum 5" voice coil
• Integrated die-cast aluminum trim ring
• Dual gap multi-pole Neodymium push/pull motor structure

CEA-2031

Power handling on Rockford Fosgate T3S1-19 conforms to CEA-2031 industry standards.

Klippel Verified

Klippel is a speaker certification program that allows us to deliver the best possible subwoofers.

VAST Surround - Subs

The Vertical Attach Surround Technique significantly increases a subwoofer's effective radiating cone area by up to 25%.

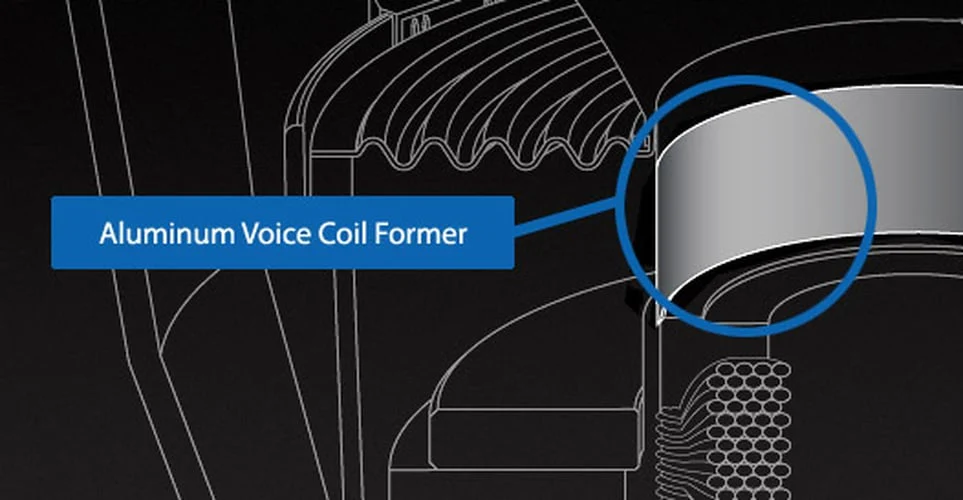

Anodized Aluminum Voice Coil Former

Rockford Fosgate T3S1-19 subwoofers use anodized aluminum voice coil formers that provide superior heat dissipation (up to 100° at full power levels). Unlike traditional plastic substitutions, aluminum acts like a heat sink to quickly dissipate thermal build-up on the voice coil. This keeps subwoofers cool during high SPL conditions.

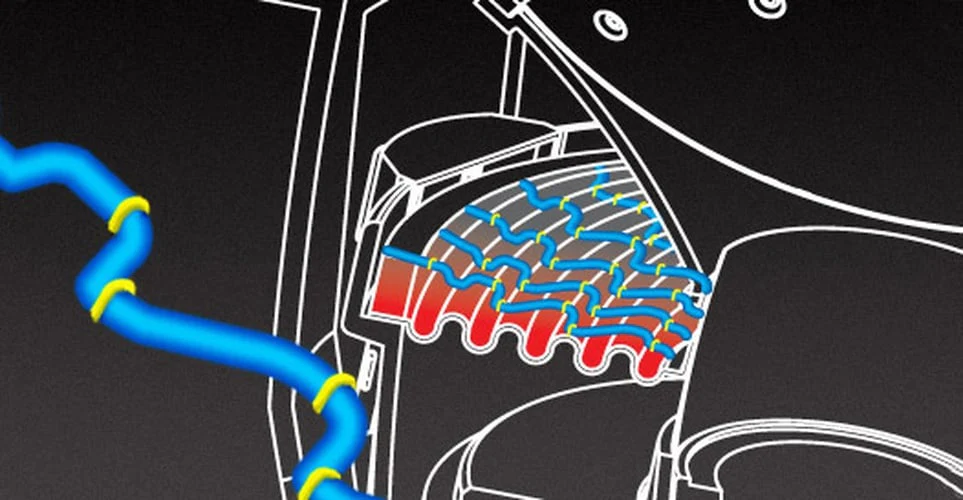

Stitched Tinsel Leads

Improved reliability and performance by reducing fatigue and possible shorting.
