SVS PB-5000 R|Evolution 15-inch Ported Cabinet Subwoofer

SVS PB-5000 R|Evolution Ported Cabinet Subwoofer

The SVS PB-5000 R|Evolution is a ported cabinet subwoofer designed for home audio systems requiring significant low-frequency output. It utilizes a 15-inch driver, high-power amplifier, and DSP control, suitable for reproducing demanding movie soundtracks and music.



Performance and Tuning Options

The PB-5000 R|Evolution employs a 15-inch driver with dual edge-wound voice coils and a Sledge STA-2000D amplifier rated at 2,000 watts RMS / 5,000+ watts peak. This ported design includes variable tuning modes, adjustable using the supplied foam port plugs and the SVS control app. These modes alter the frequency response characteristics:

• Standard Mode (All Ports Open): 15Hz – 180Hz (±3 dB)
• Extended Mode (Two Ports Open): 13Hz – 180Hz (±3 dB)
• Sealed Mode (All Ports Sealed): 16Hz – 270Hz (±3 dB)

The subwoofer is engineered to produce high sound pressure levels with controlled distortion.

DSP and Control Features

Audio processing is handled by a 295 MHz Analog Devices DSP. Users can manage settings via the SVS Subwoofer Control App (available for iOS/Android/Amazon Fire) using Bluetooth. App functions include volume adjustment, low pass filter settings, phase control, polarity selection, 6-band parametric EQ, room gain compensation, custom presets, and selection of the port tuning mode.

• 295 MHz Analog Devices DSP for audio processing.
• Sledge STA-2000D Class D amplifier (2000W RMS / 5000W+ Peak).
• Smartphone app control for settings adjustment, including port tuning.

Cabinet Design and Construction

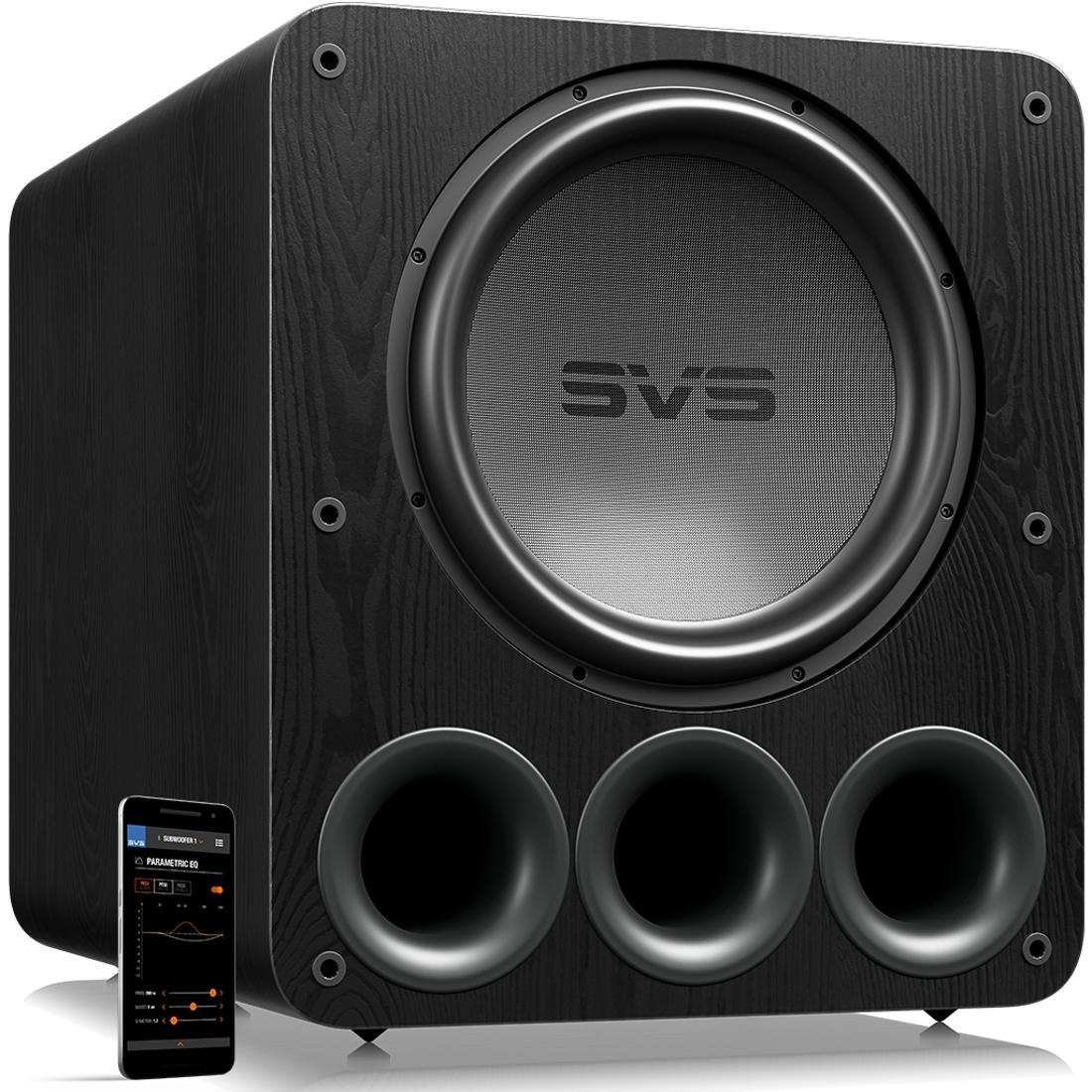

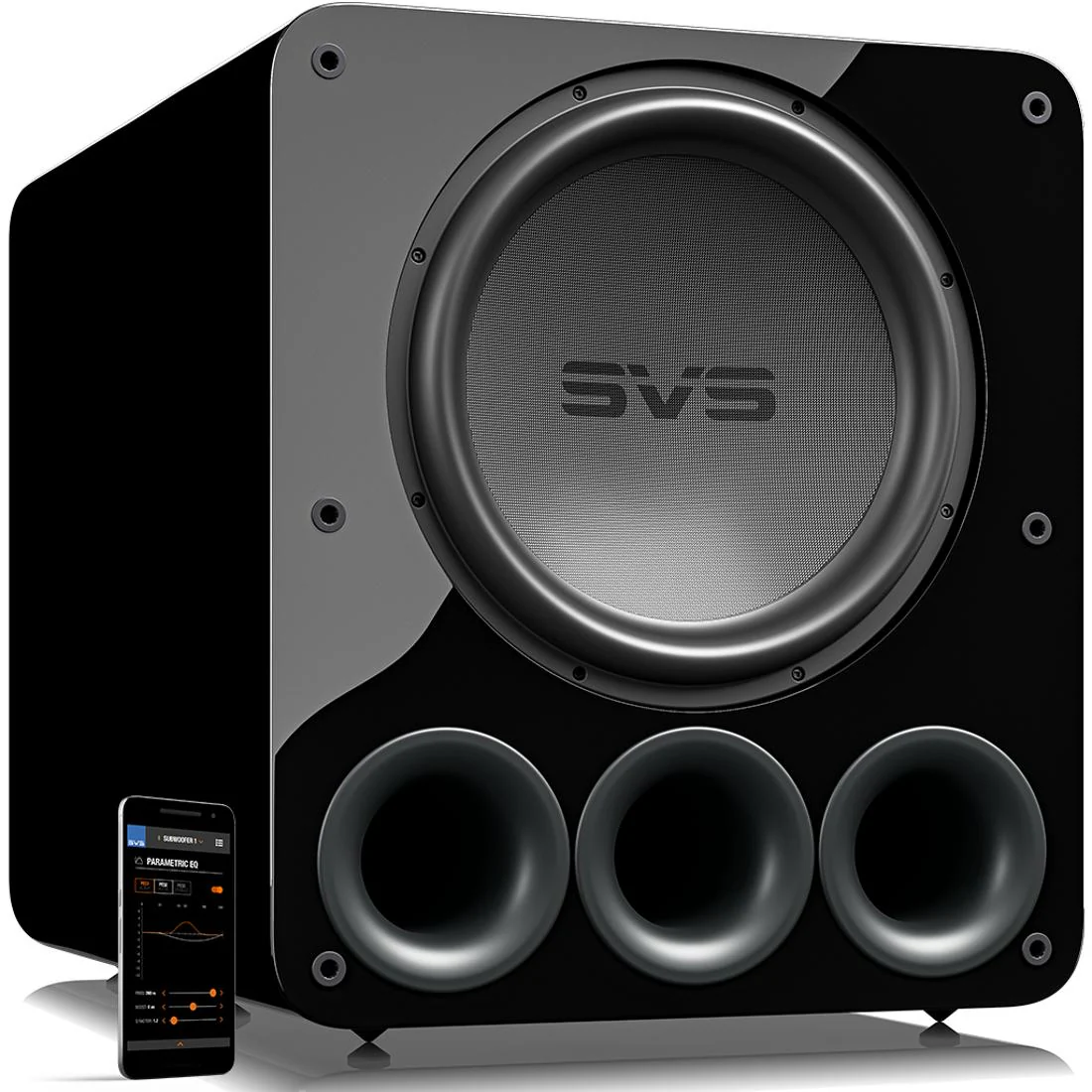

The PB-5000 R|Evolution features a large, ported cabinet constructed from Medium Density Fiberboard (MDF) with internal bracing to reduce resonance. The design incorporates three front-facing 3.5-inch ports to manage airflow. Available finishes are Piano Gloss Black and Black Ash. Screw-in iso-elastomer feet are included to decouple the subwoofer from the floor.

• Triple 3.5-inch front-ported MDF cabinet.
• Internal bracing for structural rigidity.
• Iso-elastomer feet included.

The SVS PB-5000 R|Evolution subwoofer provides high-output low-frequency reproduction with user-adjustable tuning options suitable for complex audio playback.

FAQ

• What distinguishes the SB-5000 from the PB-5000?

  The PB-5000 R|Evolution uses a larger, ported cabinet allowing for variable tuning modes and generally deeper bass extension and higher output compared to the SB-5000 R|Evolution's smaller, sealed cabinet design.

• What are the characteristics of a ported subwoofer like the PB-5000?

  Ported designs typically offer increased output capability and lower frequency extension compared to sealed designs of similar size, often favored for high-impact home theater sound.

• How does the PB-5000 compare to the PB-4000?

  The PB-5000 R|Evolution features a higher-power amplifier (2000W vs 1200W RMS) and incorporates SVS's latest driver and DSP technology, offering potentially higher performance levels than the PB-4000.

• Why consider a subwoofer with a large cabinet and driver?

  A larger driver, powerful amplifier, and optimized cabinet volume, as found in the PB-5000 R|Evolution, enable the subwoofer to move more air, which is necessary for reproducing very low frequencies at high sound pressure levels with low distortion.

• How does the smartphone app enhance user experience?

  The app allows real-time adjustments to subwoofer settings (volume, EQ, phase, low-pass filter, presets, port tuning modes) from the listening position via Bluetooth.
