SVS SoundPath Speaker Level To RCA Line Level Subwoofer Adapter

SVS SoundPath Speaker Level Subwoofer Adapter

The SVS SoundPath Speaker Level Subwoofer Adapter solves speaker-level to line-level subwoofer connectivity with no loss of fidelity. It connects a powered subwoofer to integrated amplifiers and legacy stereo receivers that lack line-level or subwoofer outputs.

Connect a powered subwoofer to legacy stereo gear

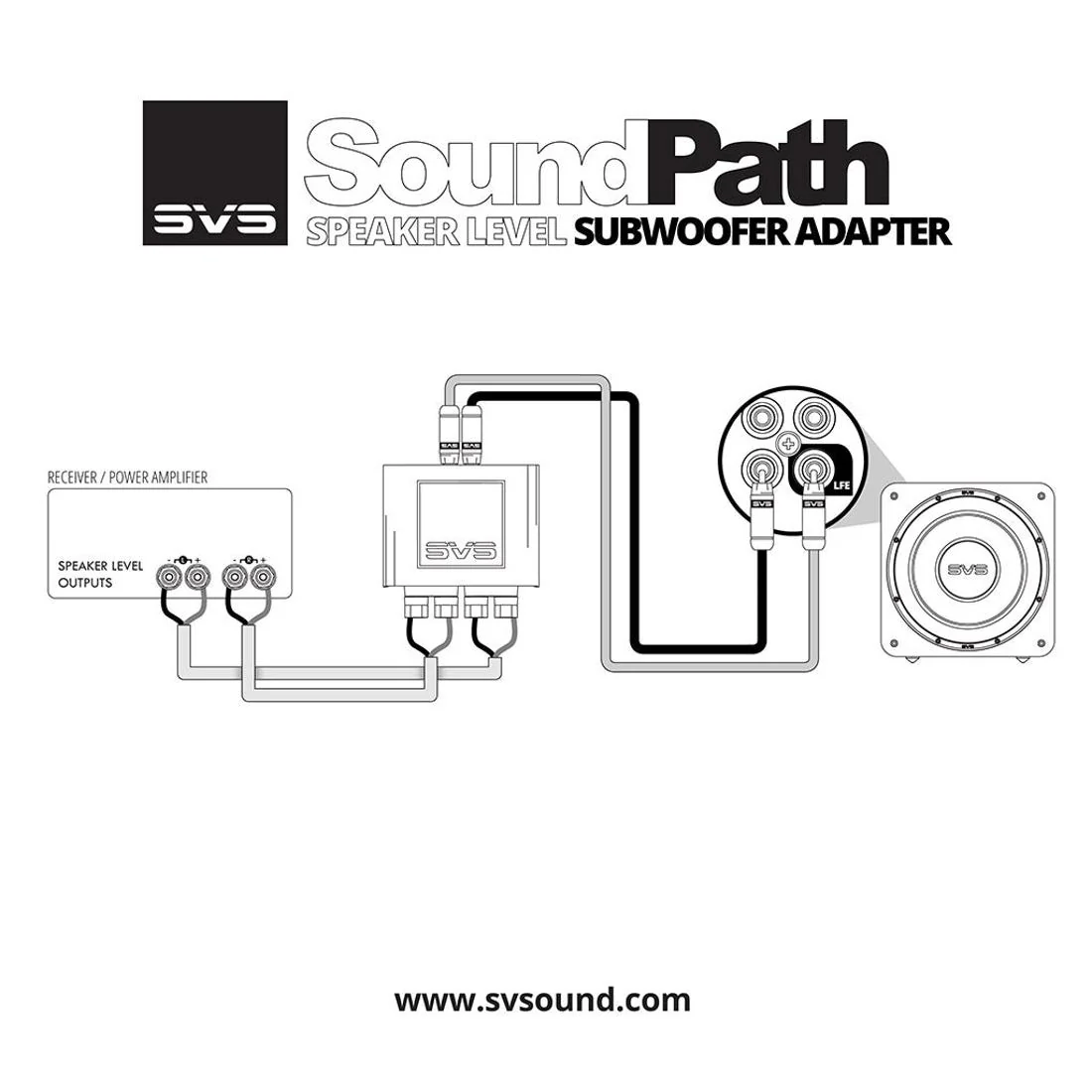

Many integrated amplifiers and legacy stereo receivers lack line-level outputs. This adapter steps down loudspeaker amplifier speaker-level voltage to RCA line-level voltage so a powered subwoofer can connect safely.

• Speaker-level to RCA line-level conversion
• For integrated amplifiers and legacy stereo receivers with no line-level or subwoofer outputs
• Stereo speaker-level binding post inputs
• Stereo RCA line-level outputs

Secure connections and simple setup

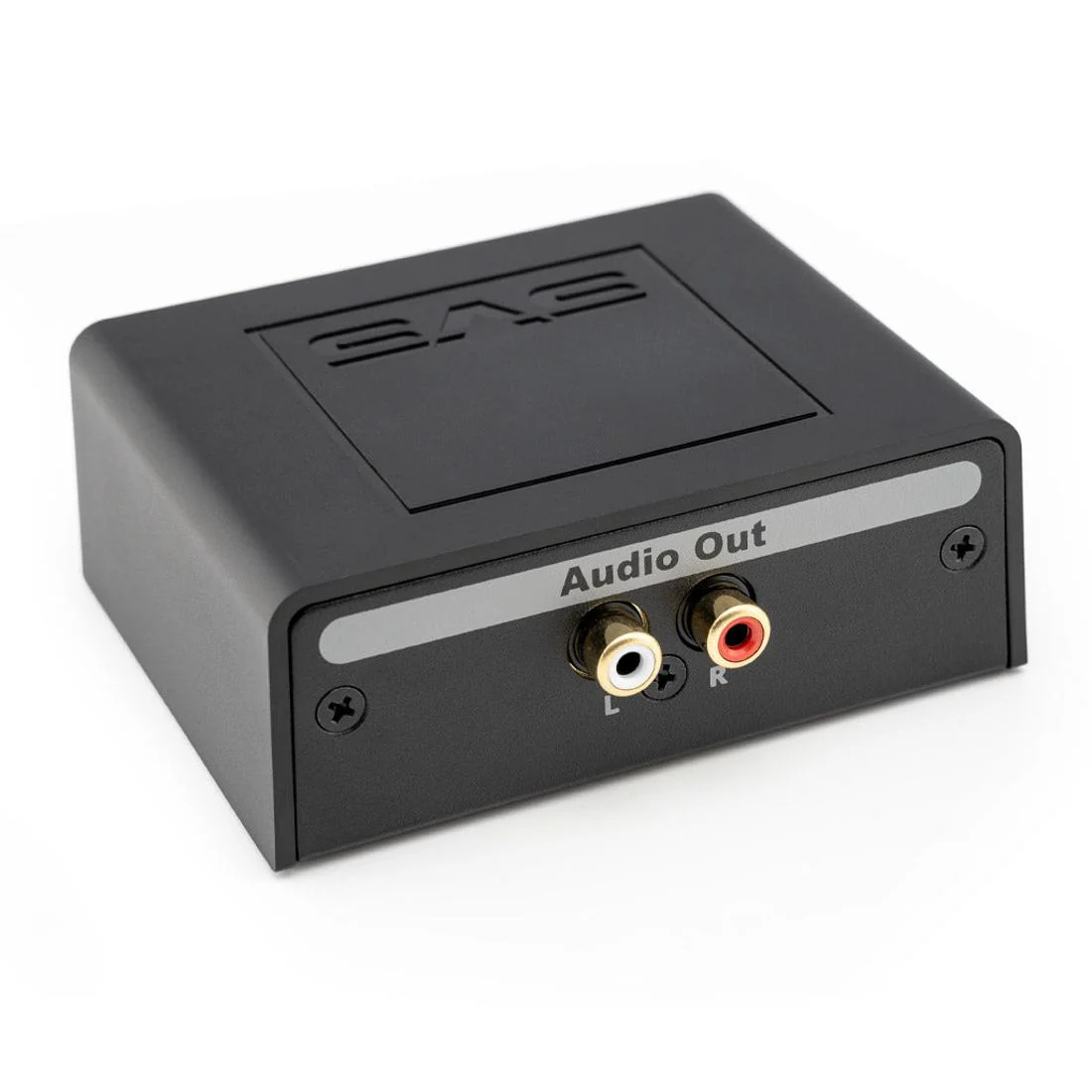

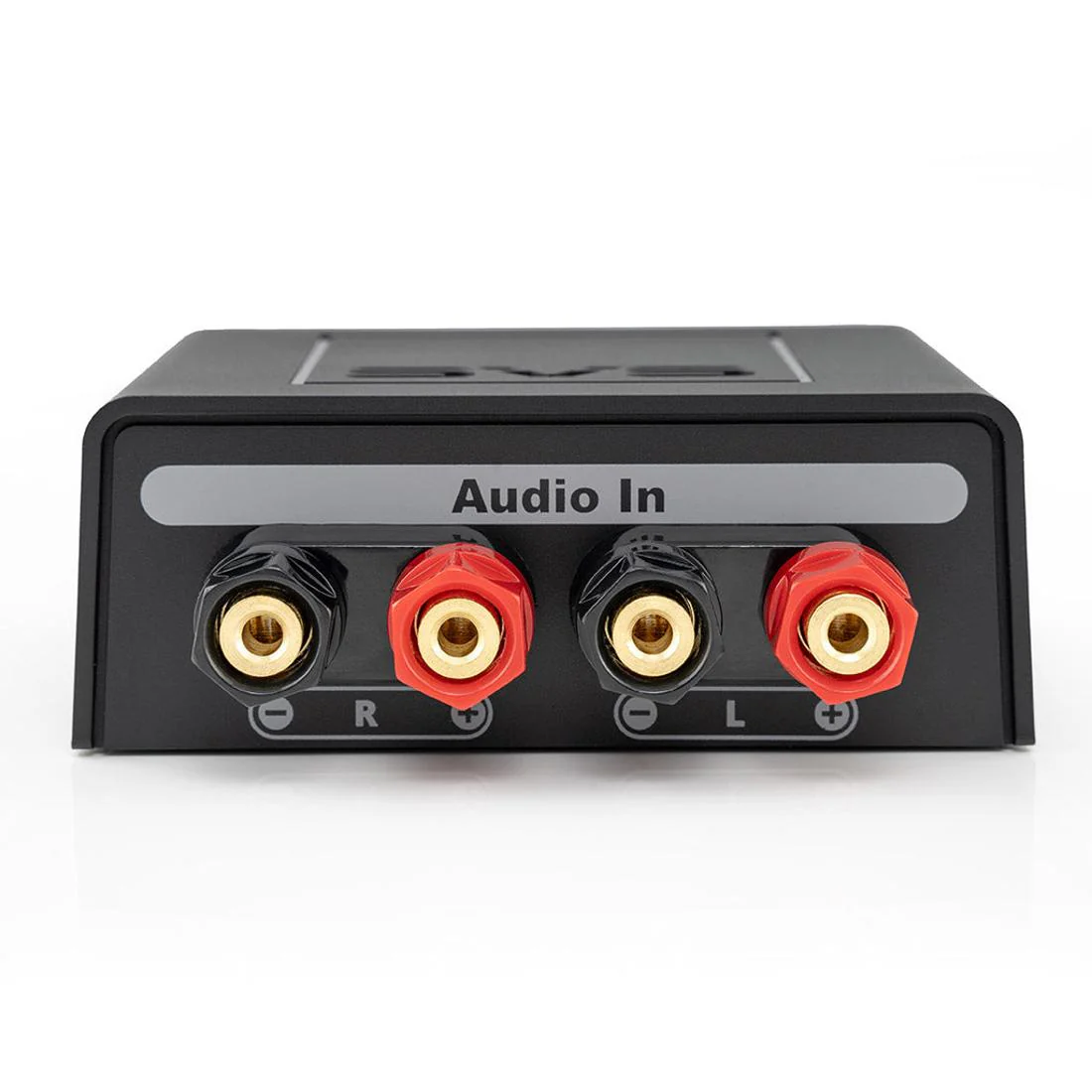

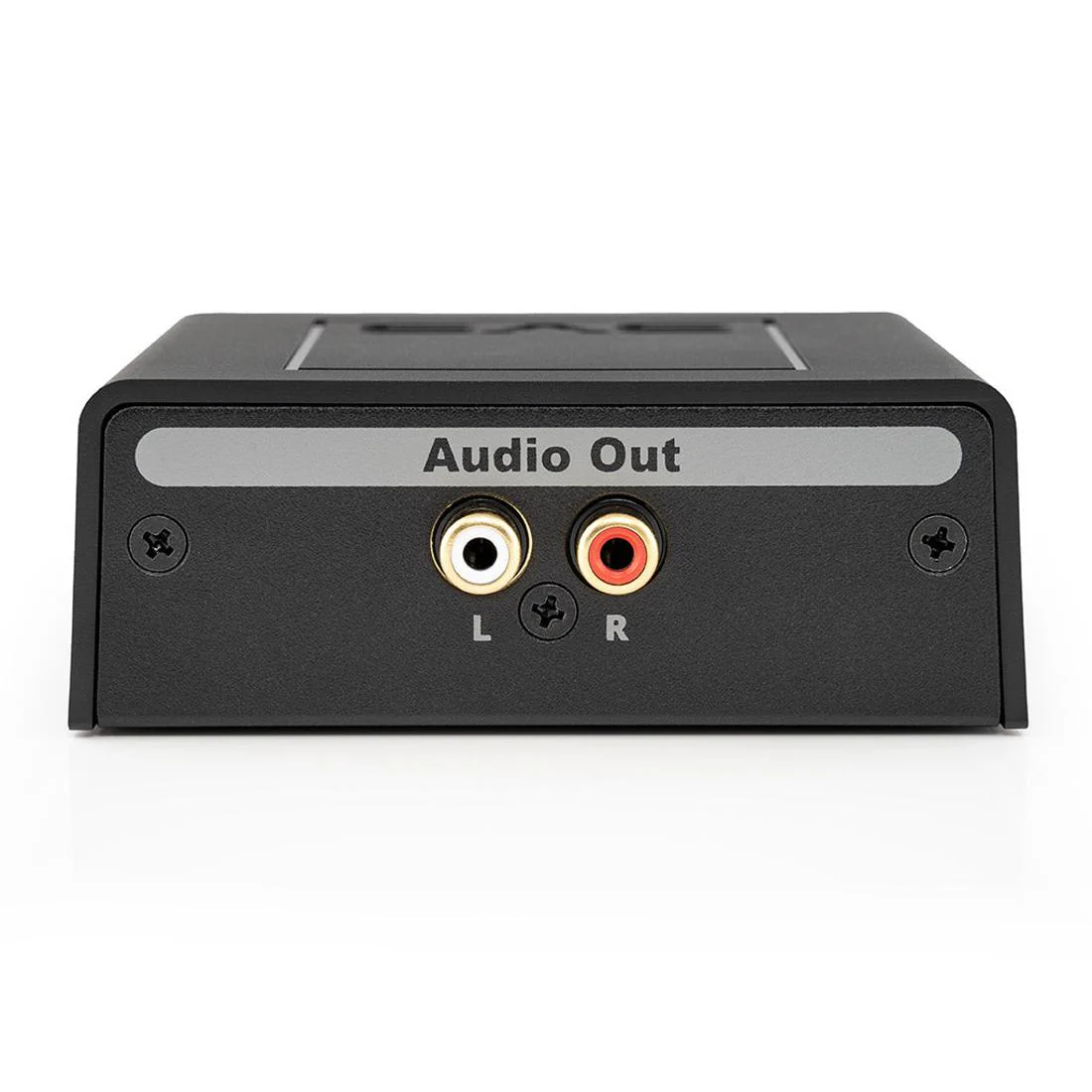

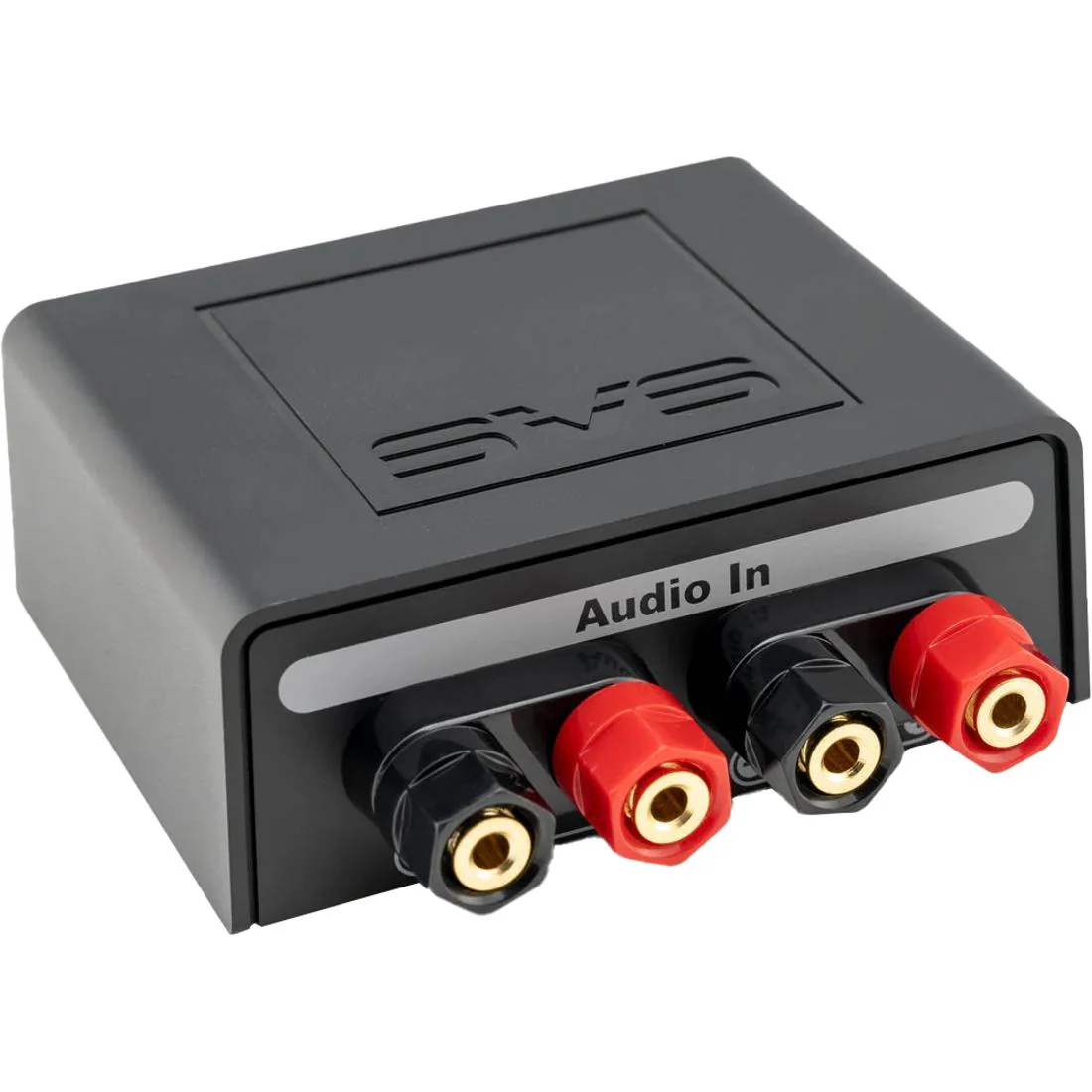

Stereo gold-plated 5-way speaker-level binding posts accept bare-wire, spade, or banana connectors. Gold-plated stereo RCA line-level output jacks provide a secure connection to the powered subwoofer line-level inputs.

• Gold-plated 5-way binding posts for multiple connector types
• Gold-plated stereo RCA output jacks
• Easy setup
• Minimalist design with insulated chassis for discrete placement

Signal transfer without compromise

The minimalist design and premium components support pristine and transparent signal transfer to the subwoofer. Premium grade narrow-tolerance resistors and wide-trace PCBs support high-current and extreme power handling.

• Wide bandwidth and ultra-low distortion
• -30 dBV attenuation will not draw power from the loudspeaker amplifier
• High-current and extreme power handling design

Frequently Questions

• What problem does this adapter solve?

  It lets you connect a powered subwoofer to integrated amplifiers and legacy stereo receivers that lack line-level outputs or a subwoofer output by converting speaker-level voltage to RCA line-level voltage.

• What inputs and outputs does it use?

  It uses stereo gold-plated 5-way speaker-level binding posts for input and stereo gold-plated RCA jacks for line-level output to the powered subwoofer.

• What connector types work with the binding posts?

  The 5-way binding posts accept bare-wire, spade, or banana connectors.

• Will it draw power from the loudspeaker amplifier?

  No. The -30 dBV attenuation will not draw any power from the loudspeaker amplifier and ensures a safe signal for the subwoofer line level inputs.

• What are the dimensions and weight?

  It measures 1.5” (37 mm) H x 3.9” (99 mm) W x 4.1” (103 m) D and weighs 0.6 lb. (0.28 kg.).
