TOA BG-235 35W Mixer Amplifier (BG235CU)
TOA BG-235 35-Watt Mixer Amplifier with MOH/Zone 2 Output
The TOA BG-235 combines a 35-watt power amplifier with a three-input mixer, giving restaurants, retail stores, and banquet halls a single, space-saving unit for background music and clear voice announcements.
Simplify Music and Paging in One Compact Unit
Three rear-panel inputs let you connect a microphone and up to two music sources, then mix them directly inside the amplifier. Input 1 is switchable Mic/Line, so a paging mic can instantly take priority over music—ideal for quick announcements without complicated external gear.
Two-Channel Broadcast with Dedicated MOH/Zone 2 Output
A separate 600 Ω balanced output feeds music-on-hold or a second room while the main speakers continue playing. Any of the three inputs can be assigned to this MOH/Zone 2 jack, and adding an optional BA-235 or BA-260 booster amplifier doubles your coverage without running new source lines.
- 35 W continuous power drives 4 Ω, 25 V, or 70 V speaker runs.
- Automatic or manual muting with adjustable sensitivity keeps announcements intelligible by ducking background audio only when needed.
- Recessed bass and treble controls (±10 dB) prevent accidental tampering once the system is tuned.
Fast, Reliable Installation

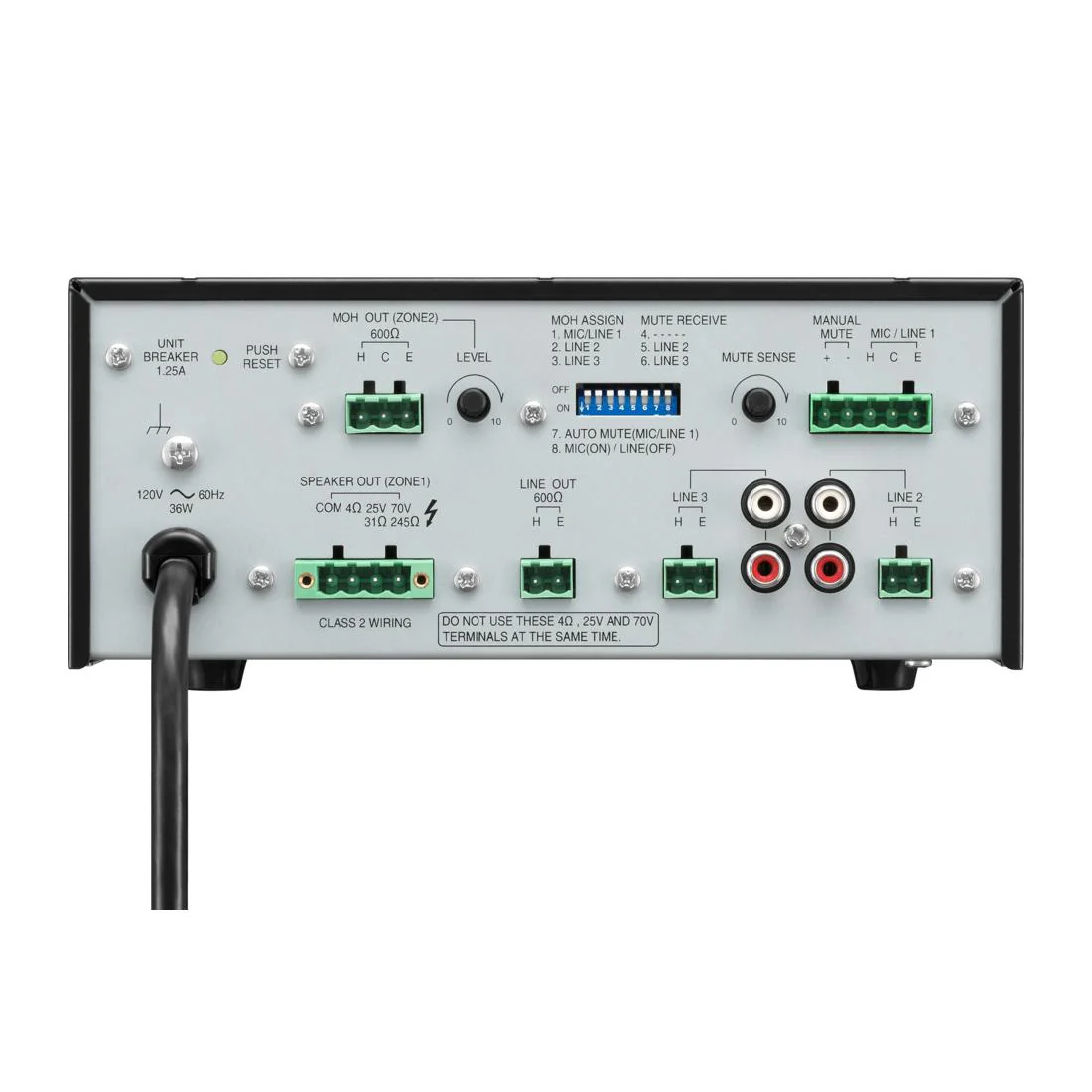

Removable terminal blocks for every input and output speed up rack wiring, while rear DIP switches handle mic/line selection, mute assignment, and MOH routing—no menus or software required.
Frequently Asked Questions
-
Can the BG-235 power both low-impedance and 70 V speaker lines?
Yes. The rear panel provides 4 Ω, 25 V (18 Ω), and 70 V (140 Ω) outputs.
-
Will the microphone automatically override music?
Input 1 includes an auto-mute circuit. When audio from the paging mic reaches the user-set threshold, Line 2 and Line 3 are momentarily reduced so announcements remain clear.
-
What rack hardware is needed?
The optional MB-25B-BK bracket mounts one BG-235 in a standard equipment rack; the MB-25B-J kit mounts two units side by side.
Add the TOA BG-235 to your cart now to streamline background music and paging in one dependable chassis.
