The Blustream DA22XLR-WP-US Dante audio wall plate is engineered to convert analog audio within a digital Dante networked audio system. This multi-input / output wall plate handles 2 input channels and 2 output channels over Dante, while supporting plug & play installation, PoE powering, and magnetic faceplate mounting for US installations.

2x2 Analog and Dante Audio Conversion

The DA22XLR-WP converts 2 input channels of balanced / unbalanced / MIC audio to Dante® digital audio, while also converting 2 channels of Dante audio to 2 output channels of balanced / unbalanced audio. This allows the wall plate to bridge local analog sources and destinations within a Dante networked audio system.

• Dante network wall plate interface for 2 x audio inputs and 2 x audio outputs
• Converts 2 x balanced / unbalanced / MIC audio sources to Dante audio channels
• Converts 2 x Dante audio channels to balanced / unbalanced audio outputs
• 2 x analog balanced/unbalanced 3-Pin XLR inputs
• 2 x analog balanced/unbalanced 3-Pin XLR outputs

MIC Support with Adjustable Input and Output Settings

For installations that require microphone and line-level flexibility, each MIC XLR input features switchable 48V/0.5mA Phantom power, and each XLR input and output offers adjustable sensitivity or gain. This allows the DA22XLR-WP-US to be configured for a range of balanced, unbalanced, and MIC audio connections.

• Switchable 48V/0.5mA Phantom power for each MIC XLR input
• Adjustable MIC / line sensitivity from +24dBu to -28dBV for each XLR input
• Adjustable line gain from +18 dBu to -10 dBV for each XLR output
• 4 x 5 position rotary dials for sensitivity / gain
• 2 x push buttons for 48V Phantom power

Dante Network Integration and Flexible Powering

This plug & play wall plate supports AES67 RTP audio transport, multiple sample rates up to 96kHz at 24 Bit, and configurable Dante device latency using Dante Controller. It can be powered from any PoE switch using Class 0 IEEE 802.3af PoE, or via a 12V DC adapter when the network switch does not support PoE.

• Supports AES67 RTP audio transport
• Supports 44.1, 48 & 96kHz sample rates @ 24 Bit
• Supports 1, 2 or 5ms configurable Dante device latency using Dante Controller

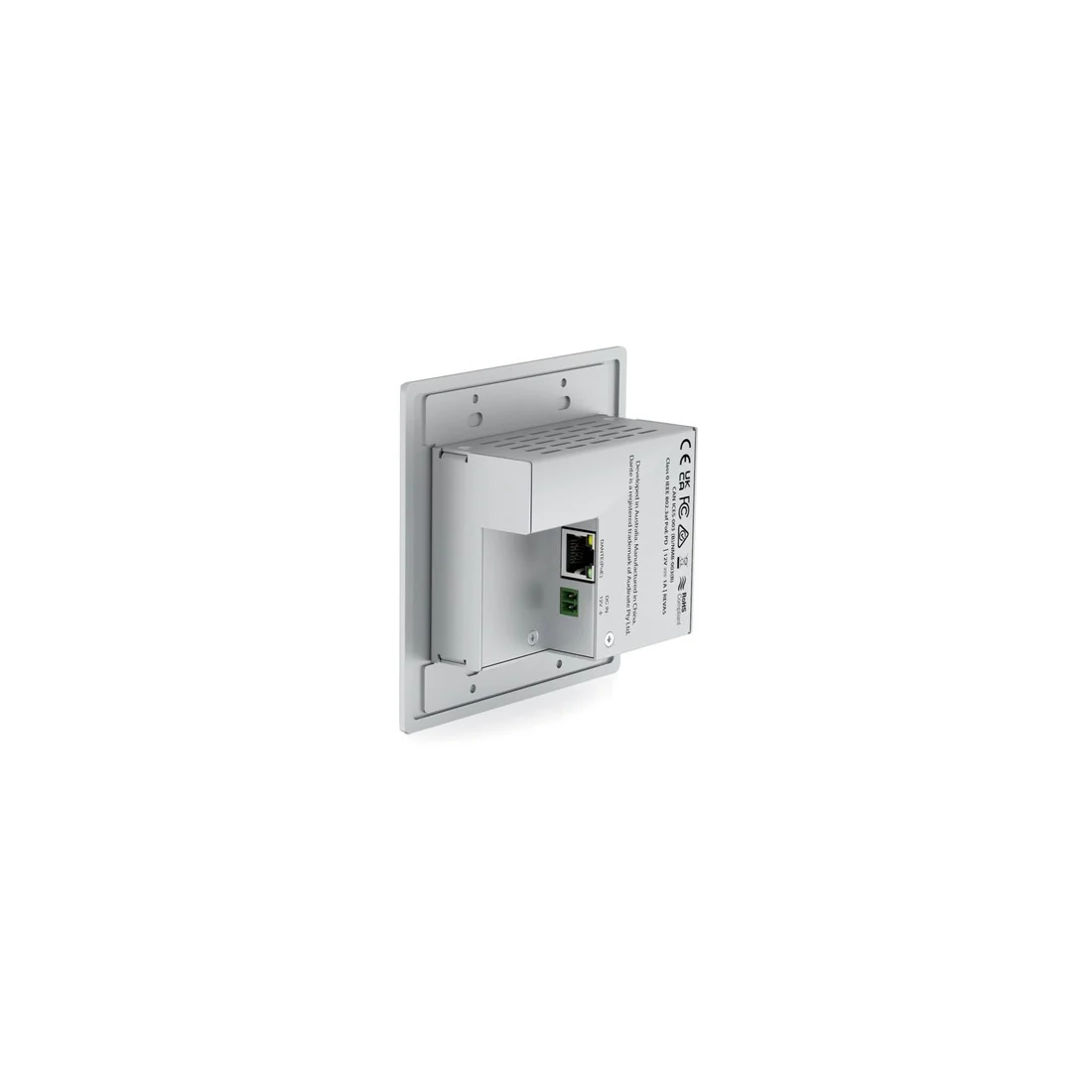

• 1 x PoE Dante Ethernet connection (RJ45)
• Class 0 IEEE 802.3af PoE
• Supports power via 12V DC adapter (not included)

Designed for US Wall Plate Installation

The magnetic faceplate surround and US Decora style backbox compatibility make the DA22XLR-WP-US suitable for clean wall plate integration in AV environments. Its design allows installation into most double-gang US junction boxes.

• Magnetic faceplate surround
• US Decora style backbox compatibility
• Backbox requirement: US double gang junction box
• Mounting hole spacing: US 83.5mm CTC

Frequently Asked Questions

1. Can this wall plate convert both analog audio to Dante and Dante audio to analog?Yes. It converts 2 x balanced / unbalanced / MIC audio sources to Dante audio channels and converts 2 x Dante audio channels to balanced / unbalanced audio outputs.
2. Does it support microphone inputs with Phantom power? Yes. Each MIC XLR input features switchable 48V/0.5mA Phantom power.
3. How is the DA22XLR-WP-US powered? It supports Class 0 IEEE 802.3af PoE for powering from any PoE switch, or power via a 12V DC adapter when the network switch does not support PoE. The 12V DC adapter is not included.
4. Will it fit a US wall box? Yes. It features a magnetic faceplate surround with US Decora style backbox compatibility and requires a US double gang junction box.
