Blustream PWR8IEC 8-Port Managed IEC PDU

Blustream PWR8IEC 8-Port Managed IEC PDU

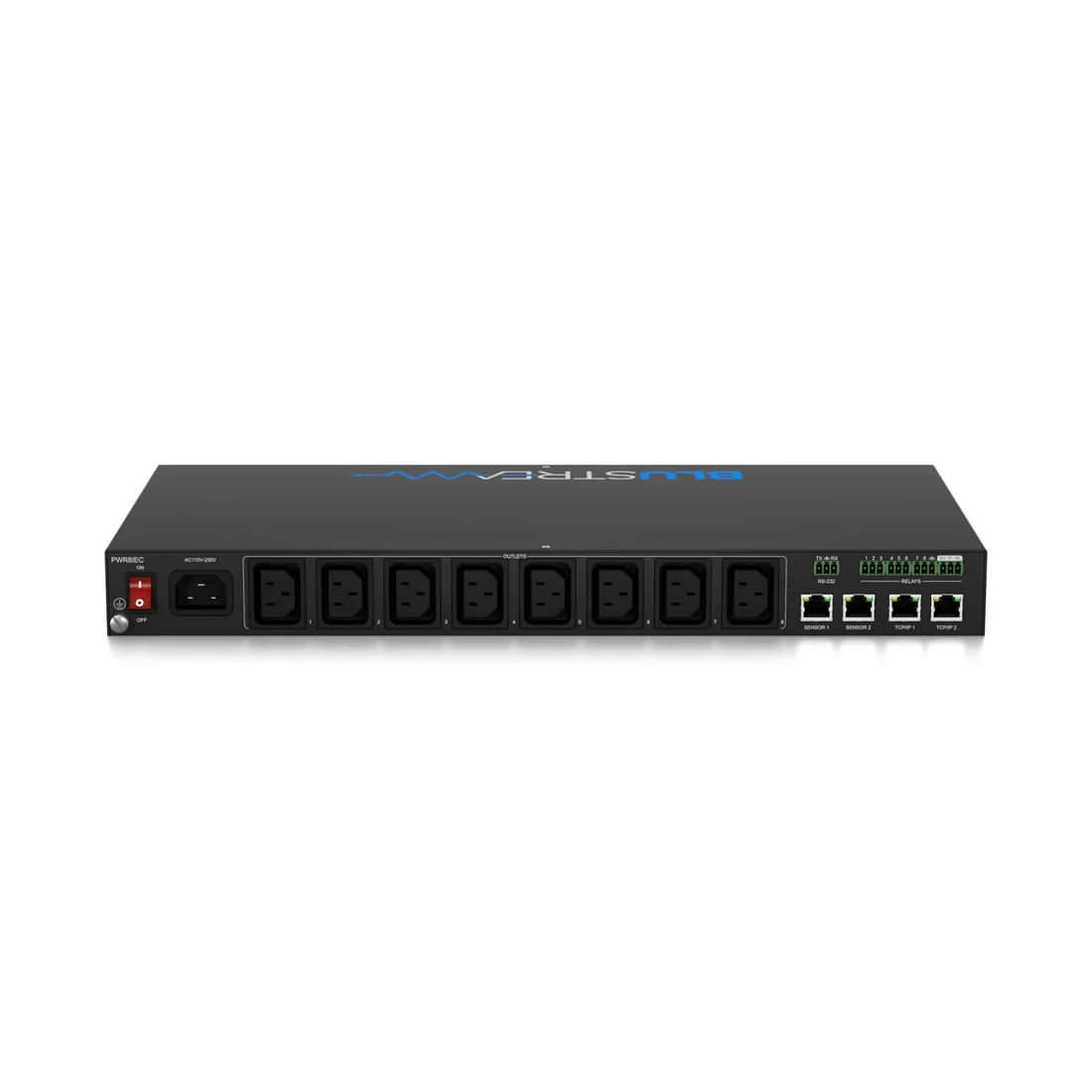

The Blustream PWR8IEC smart PDU is an outlet-level metered and switched smart PDU designed for controlled power distribution in AV and rack installations. With a single IEC C20 inlet, 8 controllable IEC C13 outlets, 1 constant IEC C13 outlet, and support for TCP/IP, RS-232, relay, and front panel control, it is built for flexible power management and monitoring.

Managed Power for Multiple Devices

The PWR8IEC provides controlled supply to high-power consumption devices with 8 individually controllable outlets and a single non-controlled outlet. Front panel buttons allow manual switching of individual outlets, while a single mains switch controls overall system power.

• 1 x IEC C20 inlet
• 8 x IEC C13 IEC 10A controllable outlets
• 1 x IEC C13 IEC 10A constant outlet
• Supports 110-250V AC power input up to 16A

Monitoring, Metering, and Protection

This smart PDU supports monitoring and metering of Voltage, Current, Power, and Energy Consumption for detailed visibility into system power usage. Overload Protection and Interference Filtering add another layer of power management for installed systems.

• Monitoring and metering of Voltage, Current, Power, and Energy Consumption
• Overload Protection
• Interference Filtering
• Advanced power management features including scheduling and power on/off sequencing

Flexible Control and Integration

Control is available via TCP/IP, RS-232, front panel buttons, or relays, making the PWR8IEC suitable for integration with a wide range of control environments. Relay connections and 2 sensor ports can be used for automatic control of power to both inlet and individual outlet stages when triggered from 3rd party control platforms or BMS systems.

• Control via TCP/IP, RS-232, Front Panel buttons, or Relays
• Relay Control: 4 x 3-Pin Phoenix connector
• RS-232 serial port: 1 x 3-Pin Phoenix connector
• 2 x sensor ports for integration to 3rd party control sensors including temperature, humidity, air pressure, security etc
• Support multiple network and IoT protocols

Remote Access and Rack Integration

Remote access and monitoring can be set up through the web-GUI with password authentication. Dual TCP/IP network ports provide uninterrupted network service and access with SSL connectivity, while the 1U design supports 19" rack mount integration with the rack mounting kit included.

• 2 x RJ45 TCP/IP control ports
• Redundant TCP/IP port as a back-up
• Provides remote monitoring with password authentication through web-GUI
• 1U rack height
• 19" rack mounting kit included

Frequently Asked Questions

1. How many outlets can be controlled individually? The PWR8IEC includes 8 x IEC C13 controllable outlets, plus 1 x IEC C13 constant outlet.
2. What control options are available? The unit supports control via TCP/IP, RS-232, front panel buttons, or relays.
3. Can it be monitored remotely? Yes. Remote access and monitoring can be achieved through the web-GUI with password authentication.
4. Is the PWR8IEC rack mountable? Yes. It features a 1U design for 19" rack mount integration, and the rack mounting kit is included.
